Bravo-Brava
3 P.
Bodywork
Bumpers
70.
P4A003M03

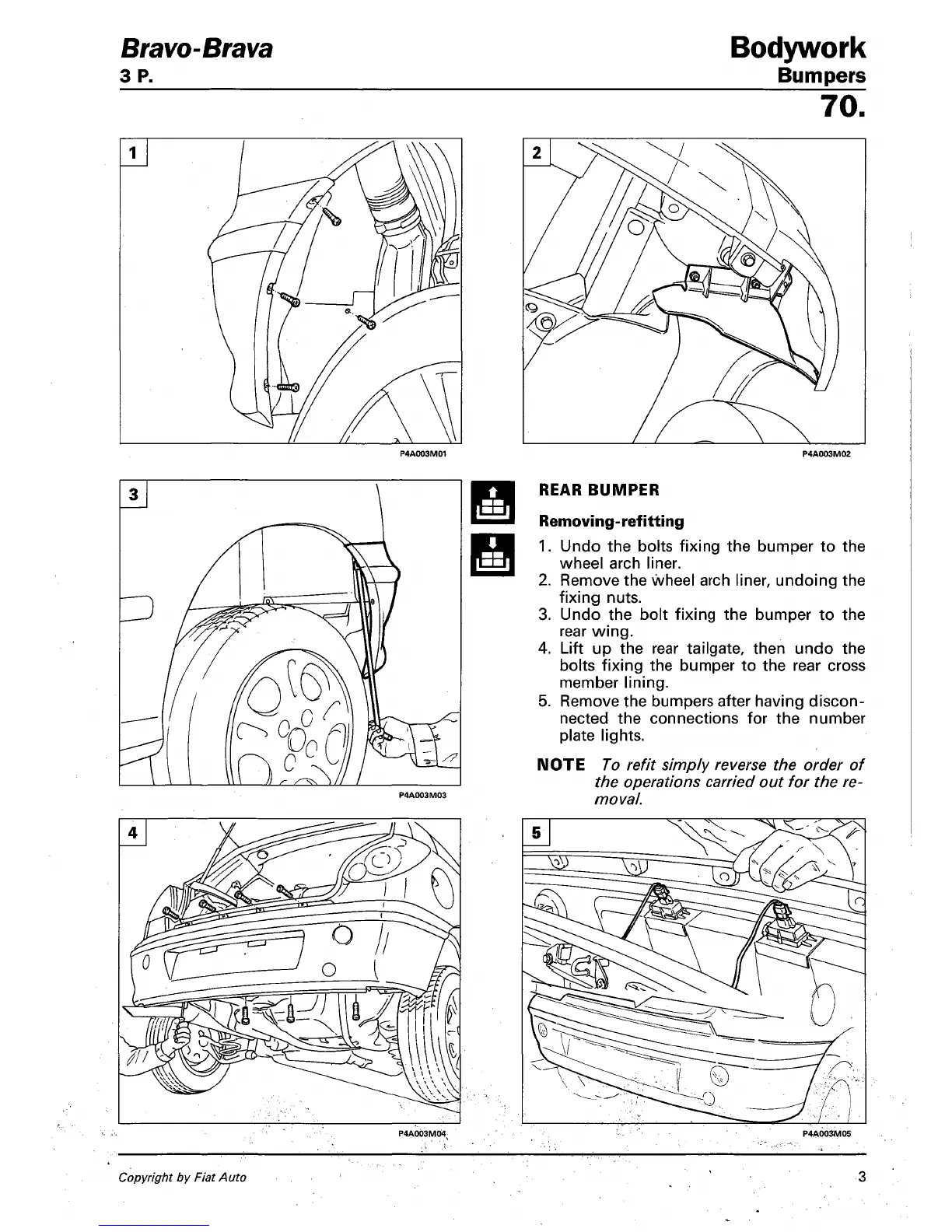

REAR BUMPER
Removing-refitting
1.
Undo the bolts fixing the bumper to the
wheel arch liner.
2.
Remove the Wheel arch liner, undoing the
fixing nuts.
3. Undo the bolt fixing the bumper to the
rear wing.
4.
Lift up the rear tailgate, then undo the
bolts fixing the bumper to the rear cross
member lining.
5. Remove the bumpers after having discon-
nected the connections for the number
plate lights.
IMOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
P4A003M05
Copyright by Fiat Auto 3
