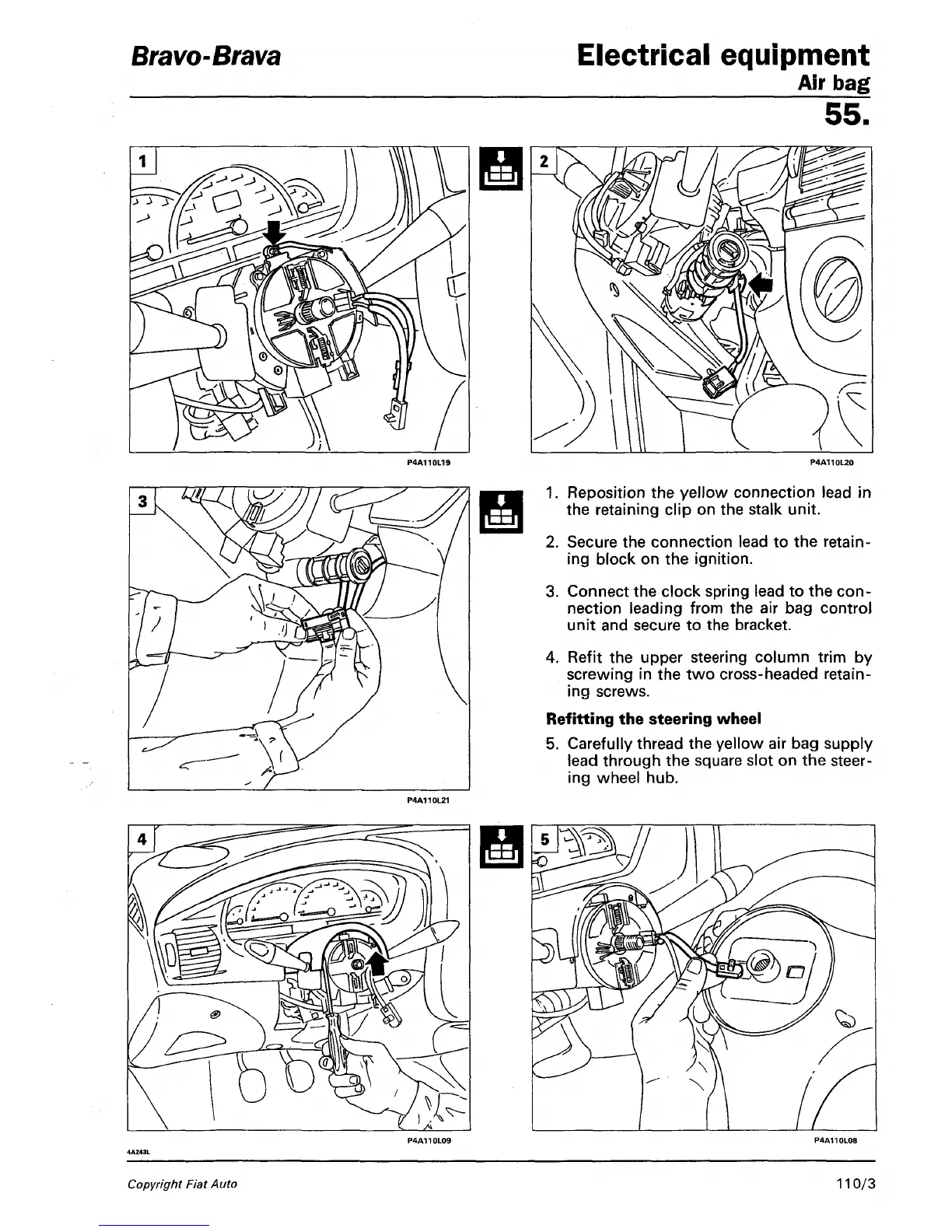

Bravo-Brava
Electrical equipment
Air bag
55.
1.
Reposition the yellow connection lead in
the retaining clip on the stalk unit.
2.
Secure the connection lead to the retain-
ing block on the ignition.
3. Connect the clock spring lead to the
con-
nection leading from the air bag control
unit and secure to the bracket.
4.
Refit the upper steering column trim by
screwing in the two cross-headed retain-
ing screws.
Refitting the steering wheel
5. Carefully thread the yellow air bag supply
lead through the square slot on the steer-
ing wheel hub.
Copyright Fiat Auto
110/3
