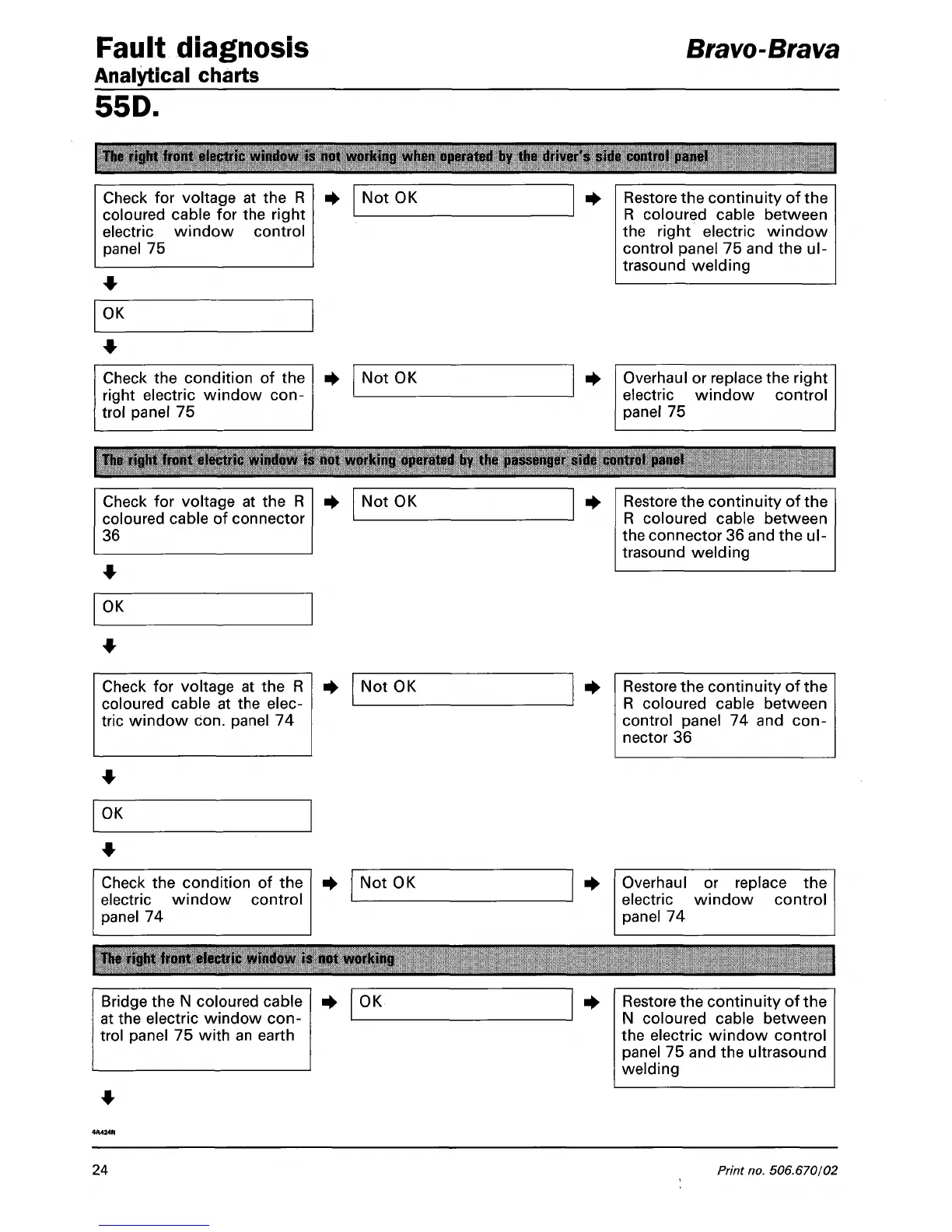

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
The right front electric window is not working when operated by the driver's side control panel
Check for voltage at the R
coloured cable for the right
electric window control
panel 75
OK
Not OK
Restore the continuity of the
R coloured cable between
the right electric window
control panel 75 and the ul-
trasound welding
Check the condition of the
right electric window con-
trol panel 75
Not OK Overhaul or replace the right
electric window control
panel 75
The right front electric window is not working operated by the passenger side control panel
Check for voltage at the R
coloured cable of connector
36
Not OK
Restore the continuity of the
R coloured cable between
the connector 36 and the ul-
trasound welding
OK
Check for voltage at the R
coloured cable at the elec-
tric window con. panel 74
Not OK
Restore the continuity of the
R coloured cable between
control panel 74 and con-
nector 36
OK
Check the condition of the
electric window control
panel 74
Not OK Overhaul or replace the
electric window control
panel 74
The right front electric window is not working
Bridge the N coloured cable
at the electric window con-
trol panel 75 with an earth
OK Restore the continuity of the
N coloured cable between
the electric window control
panel 75 and the ultrasound
welding
24
Print no. 506.670/02
