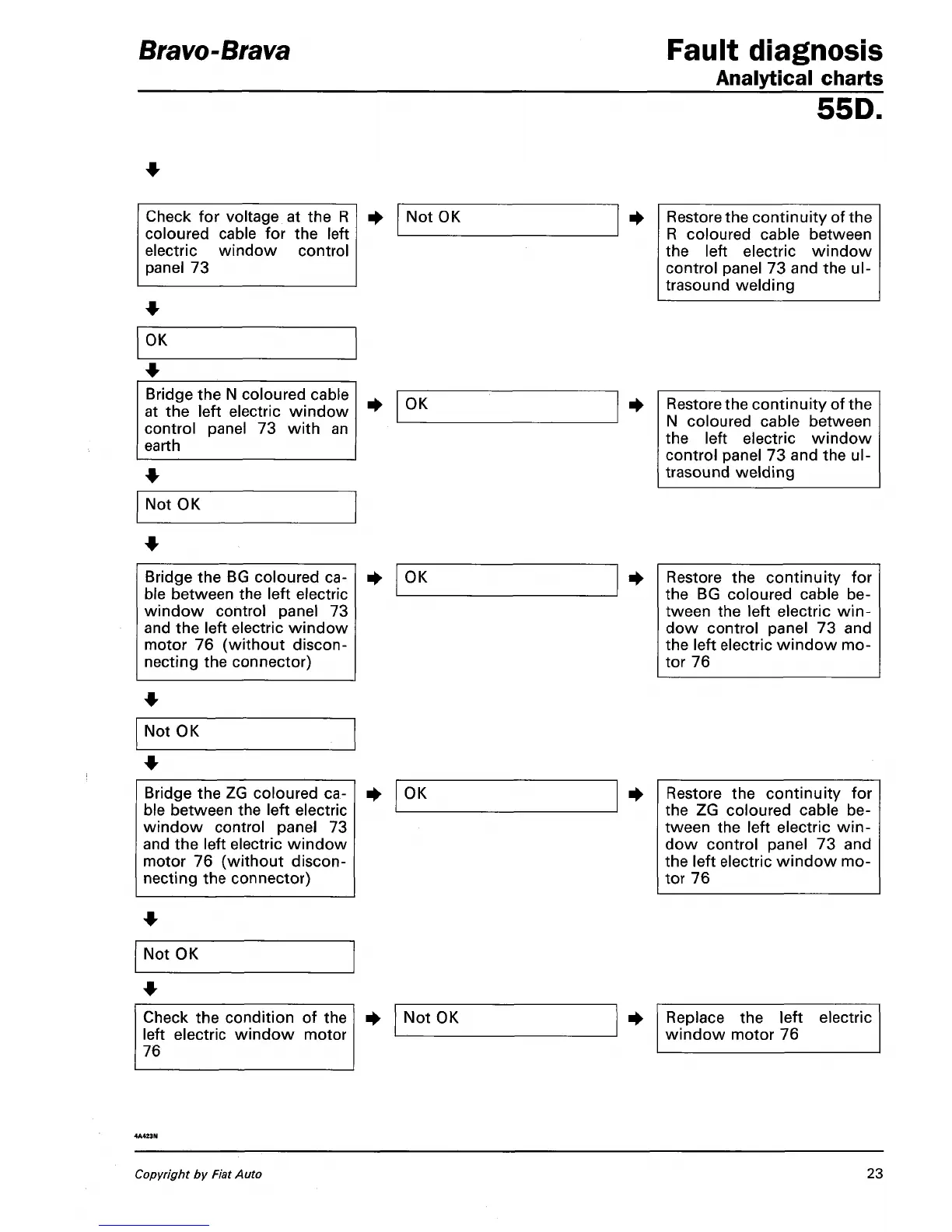

Fault diagnosis
Analytical charts
55D.
Check for voltage at the R
coloured cable for the left
electric window control
panel 73
Not OK
Restore the continuity of the
R coloured cable between
the left electric window
control panel 73 and the ul-
trasound welding
OK
Bridge the N coloured cable
at the left electric window
control panel 73 with an
earth
Not OK
OK
Restore the continuity of the
N coloured cable between
the left electric window
control panel 73 and the ul-
trasound welding
Bridge the BG coloured ca-
ble between the left electric
window control panel 73
and the left electric window
motor 76 (without discon-
necting the connector)
OK
Restore the continuity for
the BG coloured cable be-
tween the left electric win-
dow control panel 73 and
the left electric window mo-
tor 76
Not OK
Bridge the ZG coloured ca-
ble between the left electric
window control panel 73
and the left electric window
motor 76 (without discon-
necting the connector)
OK Restore the continuity for
the ZG coloured cable be-
tween the left electric win-
dow control panel 73 and
the left electric window mo-
tor 76
Not OK
Check the condition of the
left electric window motor
76
Not OK
Replace the left electric
window motor 76
