Bodywork
Interior fittings
Bravo-Brava
5 P.
70.

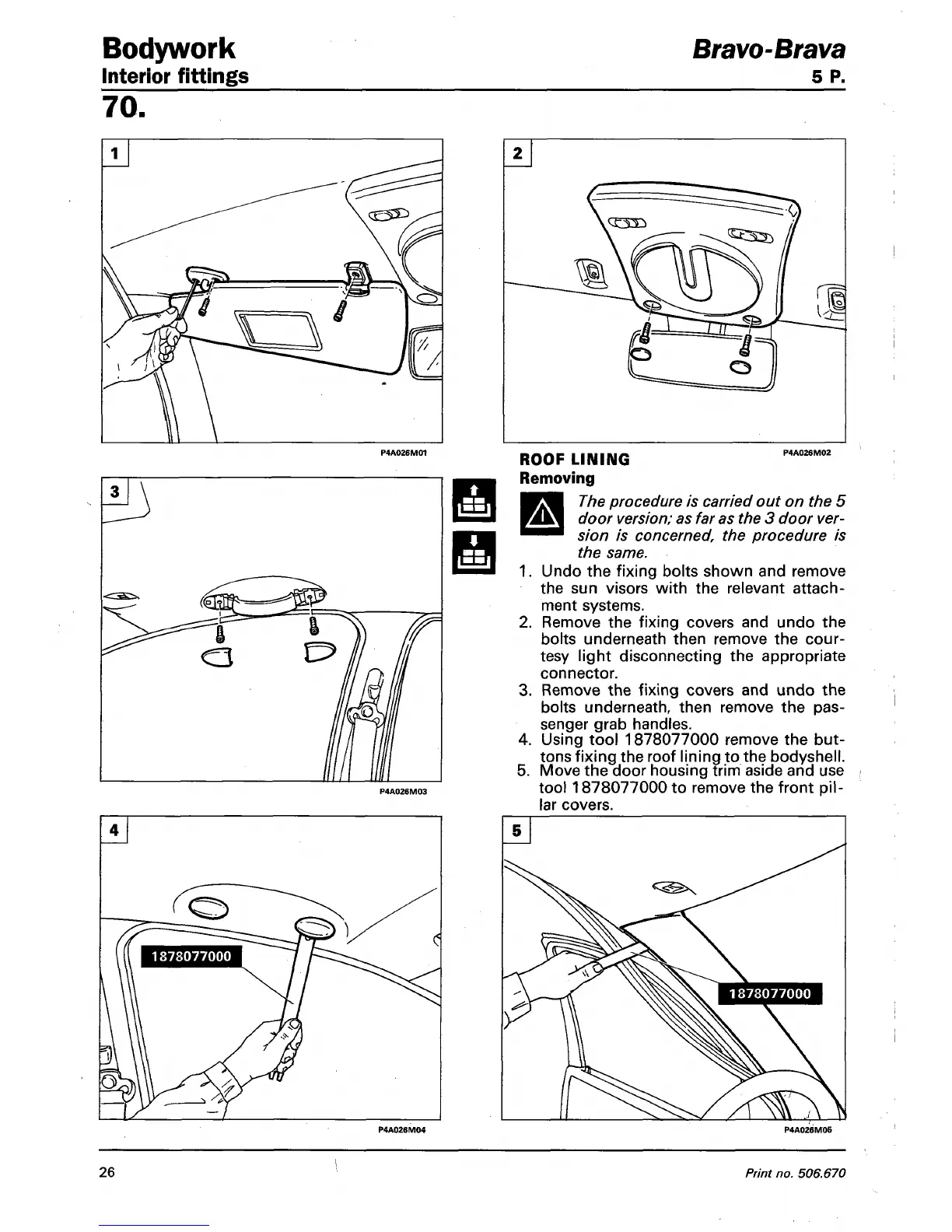

ROOF LINING
MA026M0Z
Removing
KM
The
procedure is carried out on the 5
ZQ^
door version;
as
far
as
the 3 door
ver-
sion is concerned, the procedure is
the same.
Undo the fixing bolts shown and remove
the sun visors with the relevant attach-
ment systems.
Remove the fixing covers and undo the
bolts underneath then remove the cour-
tesy light disconnecting the appropriate
connector.
Remove the fixing covers and undo the
bolts underneath, then remove the pas-
senger grab handles.
Using tool 1878077000 remove the but-
tons fixing the roof lining to the bodyshell.
Move the door housing trim aside and use
tool 1878077000 to remove the front
pil-
lar covers.
5
nflHBS^^HBS^S^B 1878077000 ■
26
Print no. 506.670
