Bravo-Brava
5 P.
Bodywork
Interior fittings
70.
1 II
if
Ik
/// //
III
%l
^
® \
PT~
\Hr-
P4A027M01

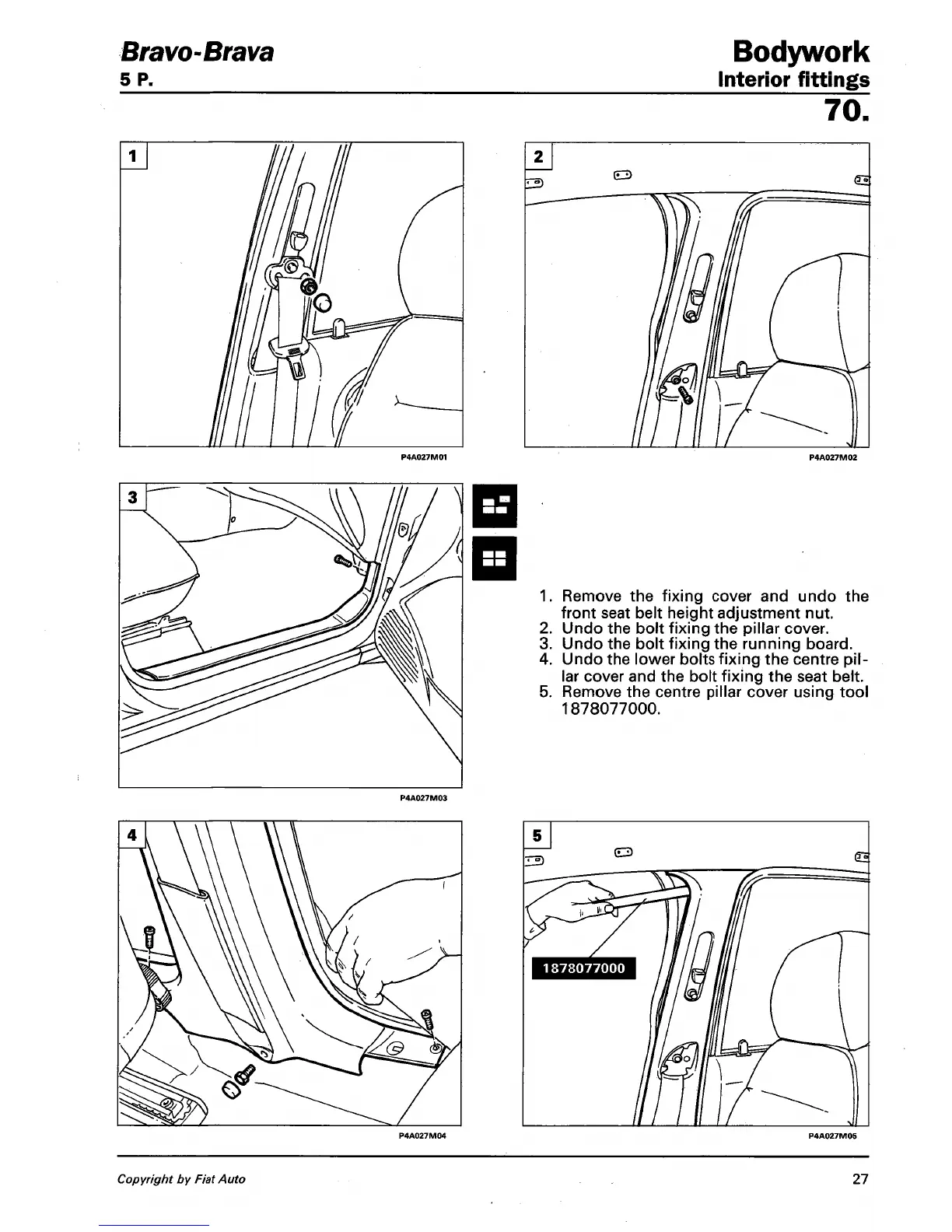

1.
Remove the fixing cover and undo the
front seat belt height adjustment nut.
2.
Undo the bolt fixing the pillar cover.
3. Undo the bolt fixing the running board.
4.
Undo the lower bolts fixing the centre
pil-
lar cover and the bolt fixing the seat belt.
5. Remove the centre pillar cover using tool
1878077000.
P4A027M04
Copyright by Fiat Auto
27
