Bravo-Brava

Electrical system

Various devices

55.

1860893000

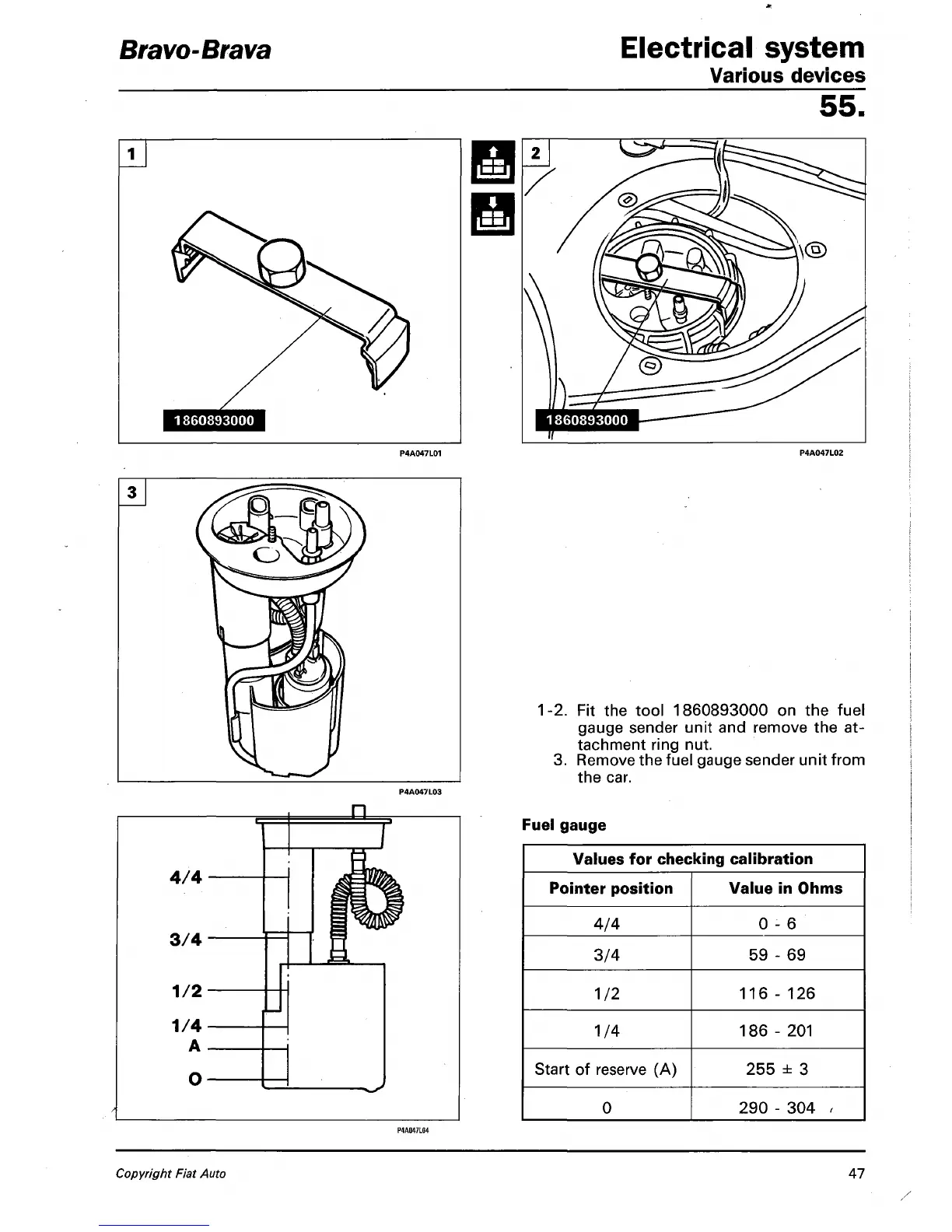

1-2. Fit the tool 1860893000 on the fuel

gauge sender unit and remove the at-

tachment ring nut.

3. Remove the fuel gauge sender unit from

the car.

Fuel gauge

Values for checking calibration

Pointer position

4/4

3/4

1/2

1/4

Start of reserve (A)

Value in Ohms

0-6

59 - 69

116-126

186 - 201

255 ± 3

290 - 304 ,
