Bravo-Brava
3 P.
Bodywork
Interior fittings
P4A025M01
70.
P4A025M02

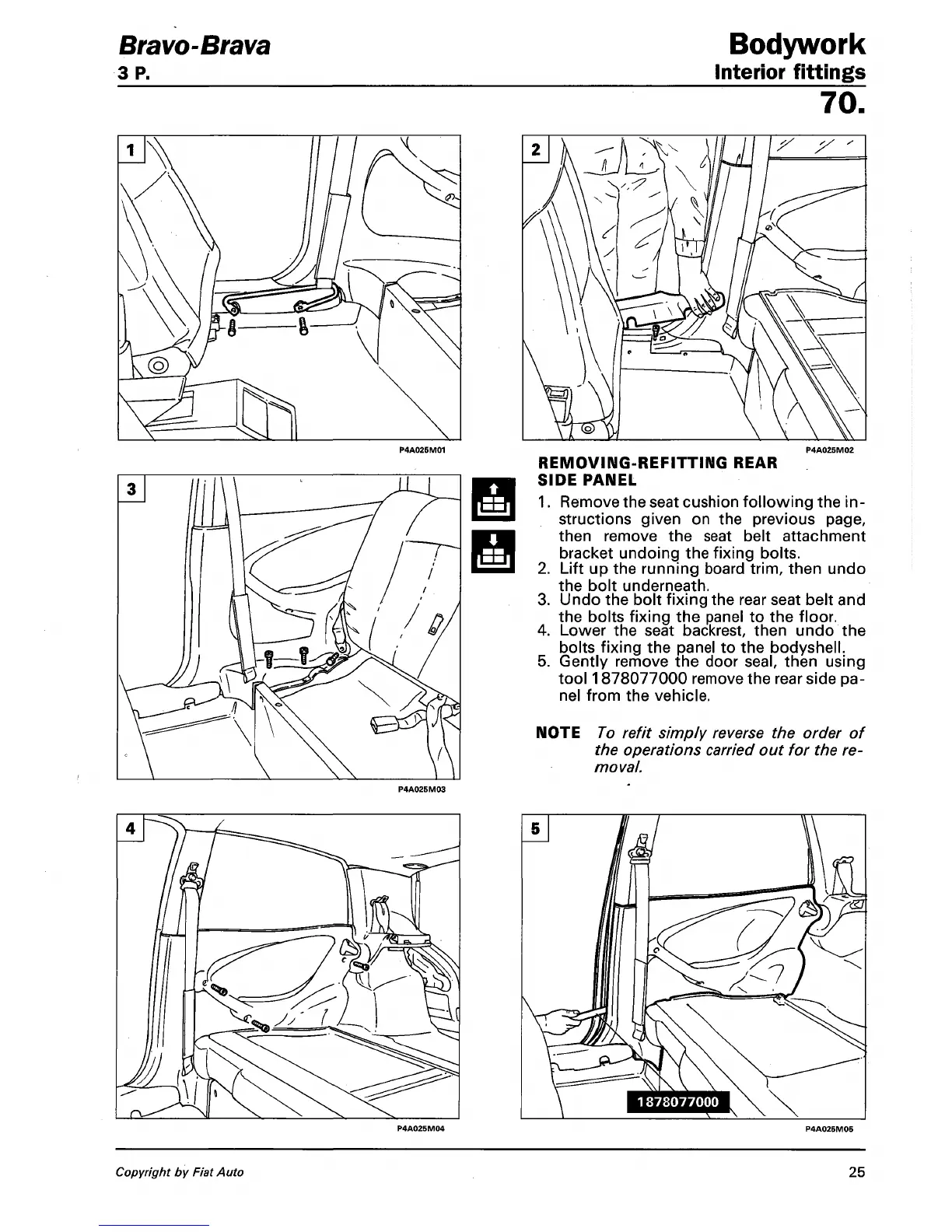

REMOVING-REFITTING REAR
SIDE PANEL
1.
Remove the seat cushion following the in-
structions given on the previous page,
then remove the seat belt attachment
bracket undoing the fixing bolts.
2.
Lift up the running board
trim,
then undo
the bolt underneath.
3. Undo the bolt fixing the rear seat belt and
the bolts fixing the panel to the floor.
4.
Lower the seat backrest, then undo the
bolts fixing the panel to the bodyshell.
5. Gently remove the door
seal,
then using
tool 1878077000 remove the rear side pa-
nel from the vehicle.
NOTE To refit simply reverse the order of
the operations carried out for the re-
moval.
P4A025M03
P4A025M04
P4A026M05
