Bodywork
Seats
Bravo-Brava
70.
1.

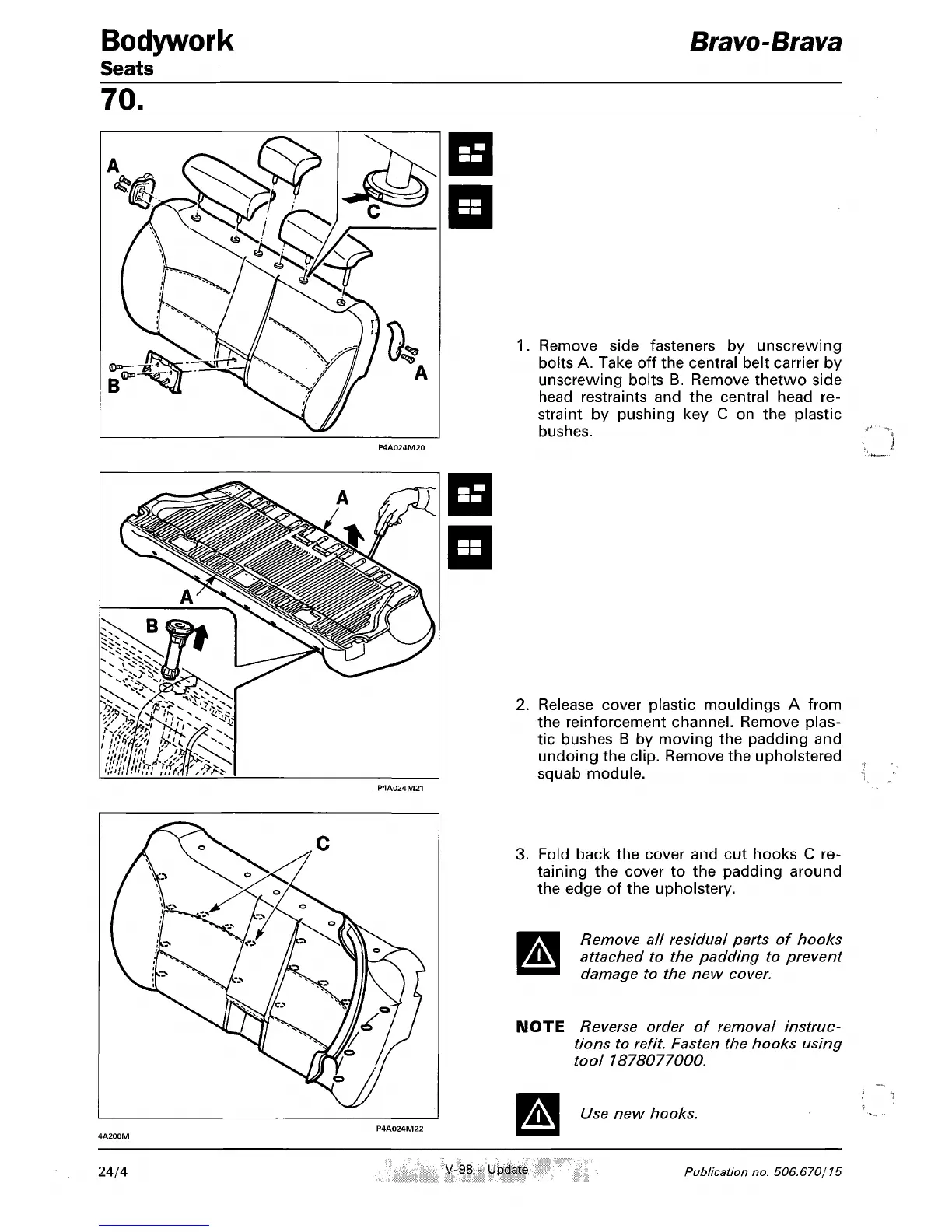

Remove side fasteners by unscrewing
bolts A. Take off the central belt carrier by
unscrewing bolts B. Remove thetwo side
head restraints and the central head re-
straint by pushing key C on the plastic
bushes.
Release cover plastic mouldings A from
the reinforcement channel. Remove plas-
tic bushes B by moving the padding and
undoing the clip. Remove the upholstered
squab module.
P4A024M21
/ A
/ A
I
'/
x. 'N*^
o
**£m*
^■ss
s.
O ^
]fc>
AT>
c
°/^
ss
*w
// Vl \\ ° >^^\
// ^"€>
1 /■
\ li
/ / // ^ / /
K. /Is
^*>L
° //
Fold back the cover and cut hooks C re-
taining the cover to the padding around
the edge of the upholstery.
Remove all residual parts of hooks
attached to the padding to prevent
damage to the new
cover.
NOTE Reverse order of removal instruc-
tions to refit. Fasten the hooks using
tool 1878077000.
Use new hooks.
24/4
V-98 - Update
Publication no. 506.670/15
