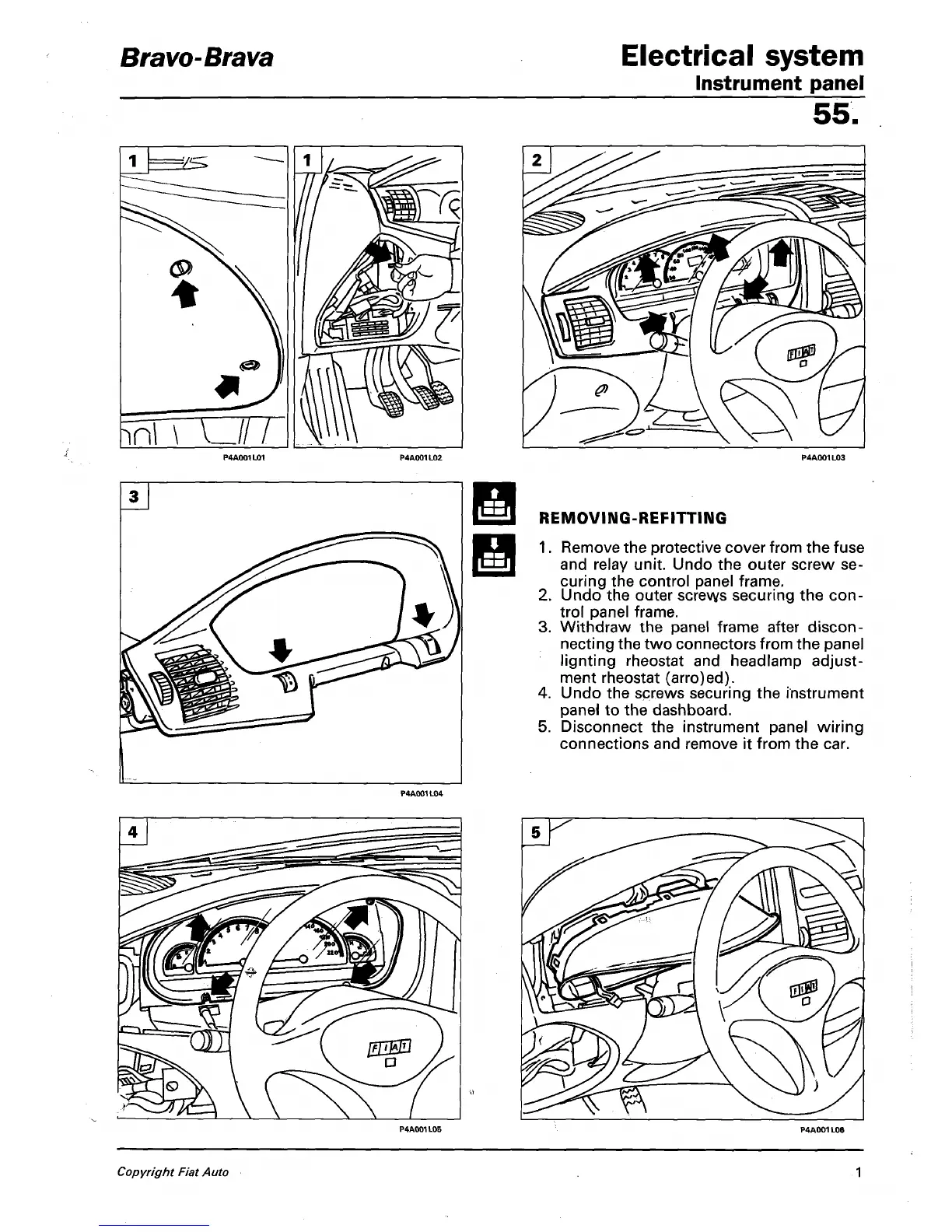

Bravo-Brava Electrical system
Instrument panel
55.
YTTVJI
REMOVIIMG-REFITTIIMG
1.
4.
5.
Remove the protective cover from the fuse
and relay unit. Undo the outer screw se-
curing the control panel frame.
Undo the outer screws securing the
con-
trol panel frame.
Withdraw the panel frame after discon-
necting the two connectors from the panel
lignting rheostat and headlamp adjust-
ment rheostat (arro)ed).
Undo the screws securing the instrument
panel to the dashboard.
Disconnect the instrument panel wiring
connections and remove it from the car.
Copyright Fiat Auto
