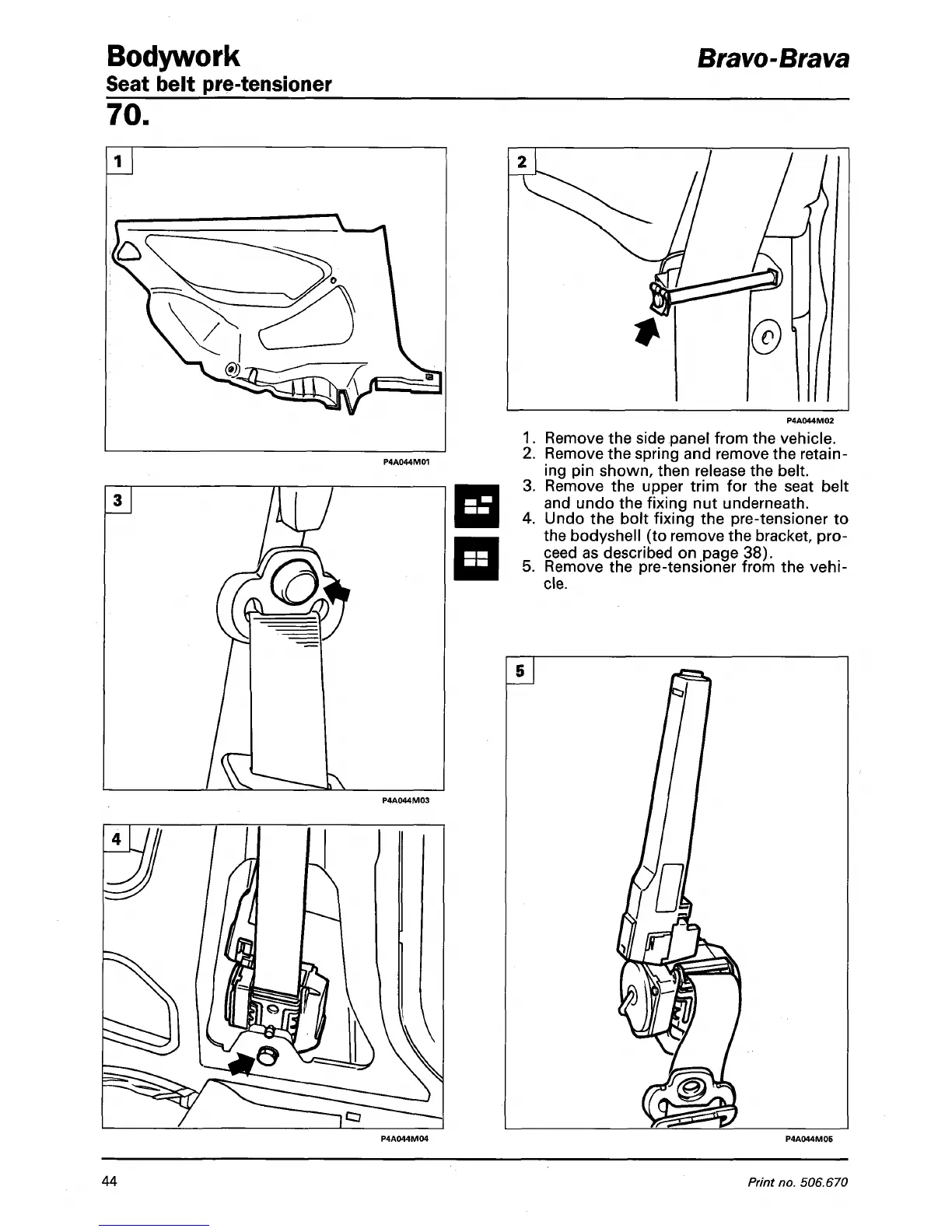

Bodywork
Seat belt pre-tensioner
Bravo-Brava
70.
1.
Remove the side panel from the vehicle.
2.
Remove the spring and remove the retain-
ing pin shown, then release the belt.
3. Remove the upper trim for the seat belt
and undo the fixing nut underneath.
4.
Undo the bolt fixing the pre-tensioner to
the bodyshell (to remove the bracket, pro-
ceed as described on page 38).
5. Remove the pre-tensioner from the
vehi-
cle.
44
Print no. 506.670
