Bravo-Brava
Bodywork
Interior fittings
1 /
1
Ij
^
-^LjJ/y.
[o//
// \
sSJ^Ir
v/rx
\#IMT^
P4A035M01
70.
4.

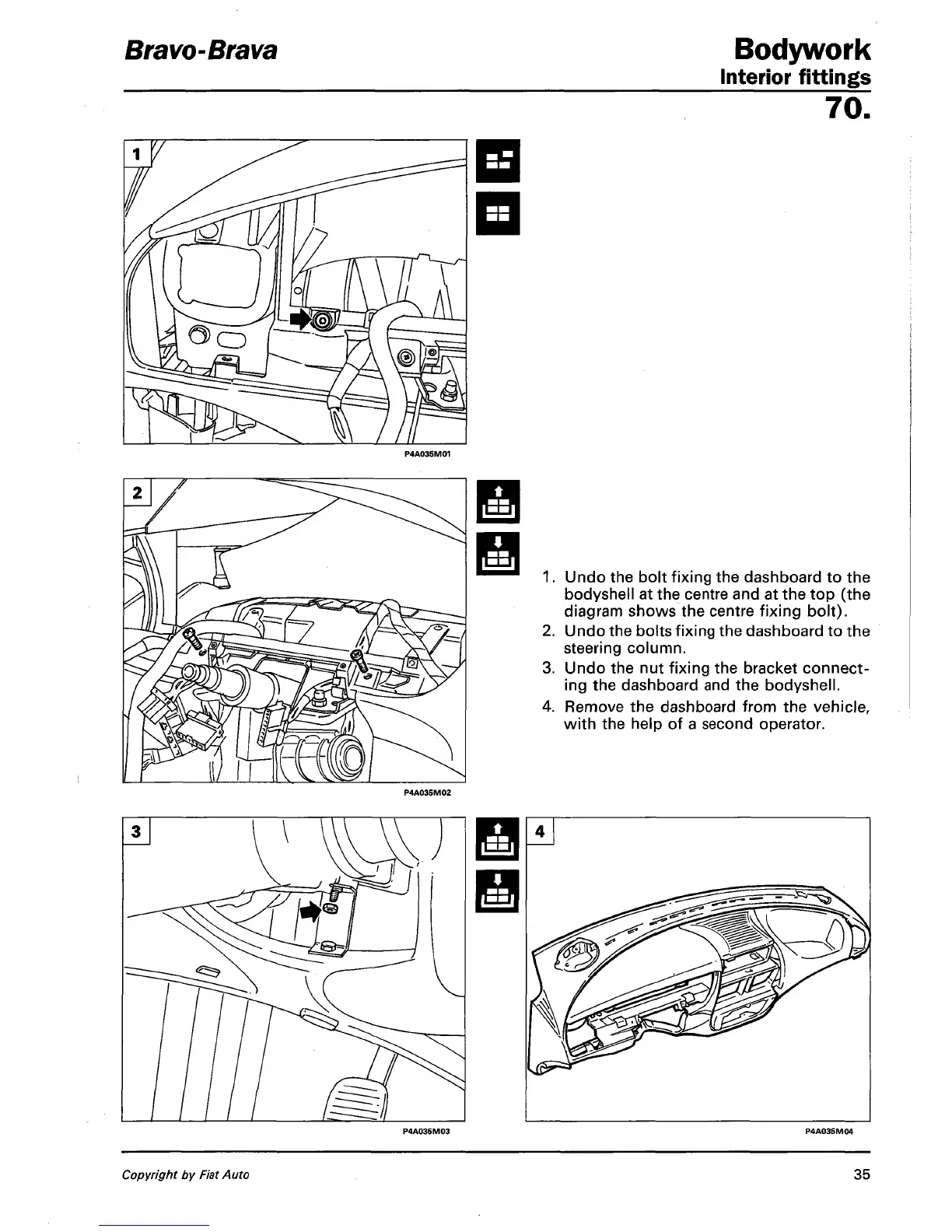

Undo the bolt fixing the dashboard to the
bodyshell at the centre and at the top (the
diagram shows the centre fixing bolt).
Undo the bolts fixing the dashboard to the
steering column.
Undo the nut fixing the bracket connect-
ing the dashboard and the bodyshell.
Remove the dashboard from the vehicle,
with the help of a second operator.
P4A035M02
P4A035M03
Copyright by
Fiat
Auto
35
