Bodywork
Interior fittings
Bravo-Brava

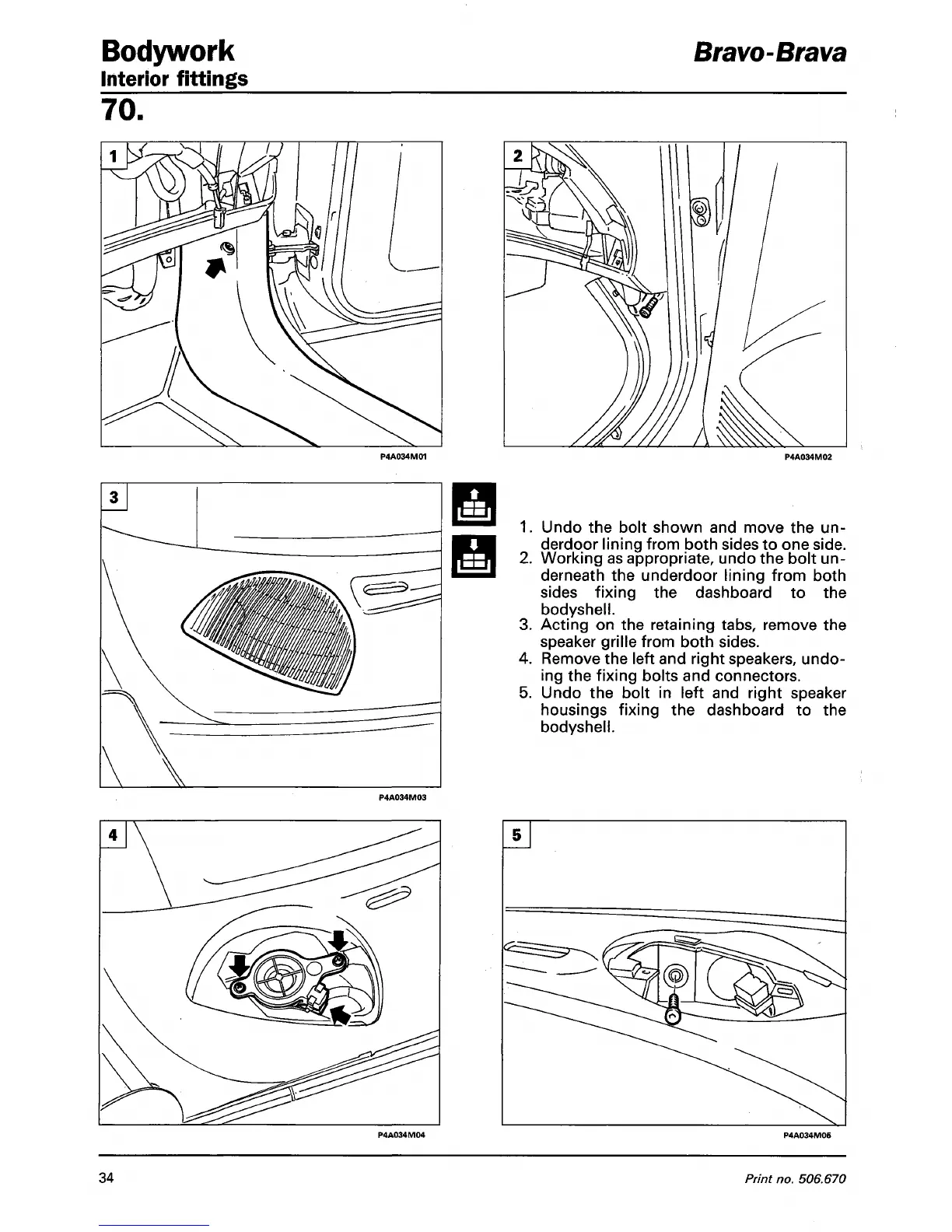

1.
Undo the bolt shown and move the un-
derdoor lining from both sides to one side.
2.
Working as appropriate, undo the bolt un-
derneath the underdoor lining from both
sides fixing the dashboard to the
bodyshell.
3. Acting on the retaining tabs, remove the
speaker grille from both sides.
4.
Remove the left and right speakers, undo-
ing the fixing bolts and connectors.
5. Undo the bolt in left and right speaker
housings fixing the dashboard to the
bodyshell.
34
Print no. 506.670
