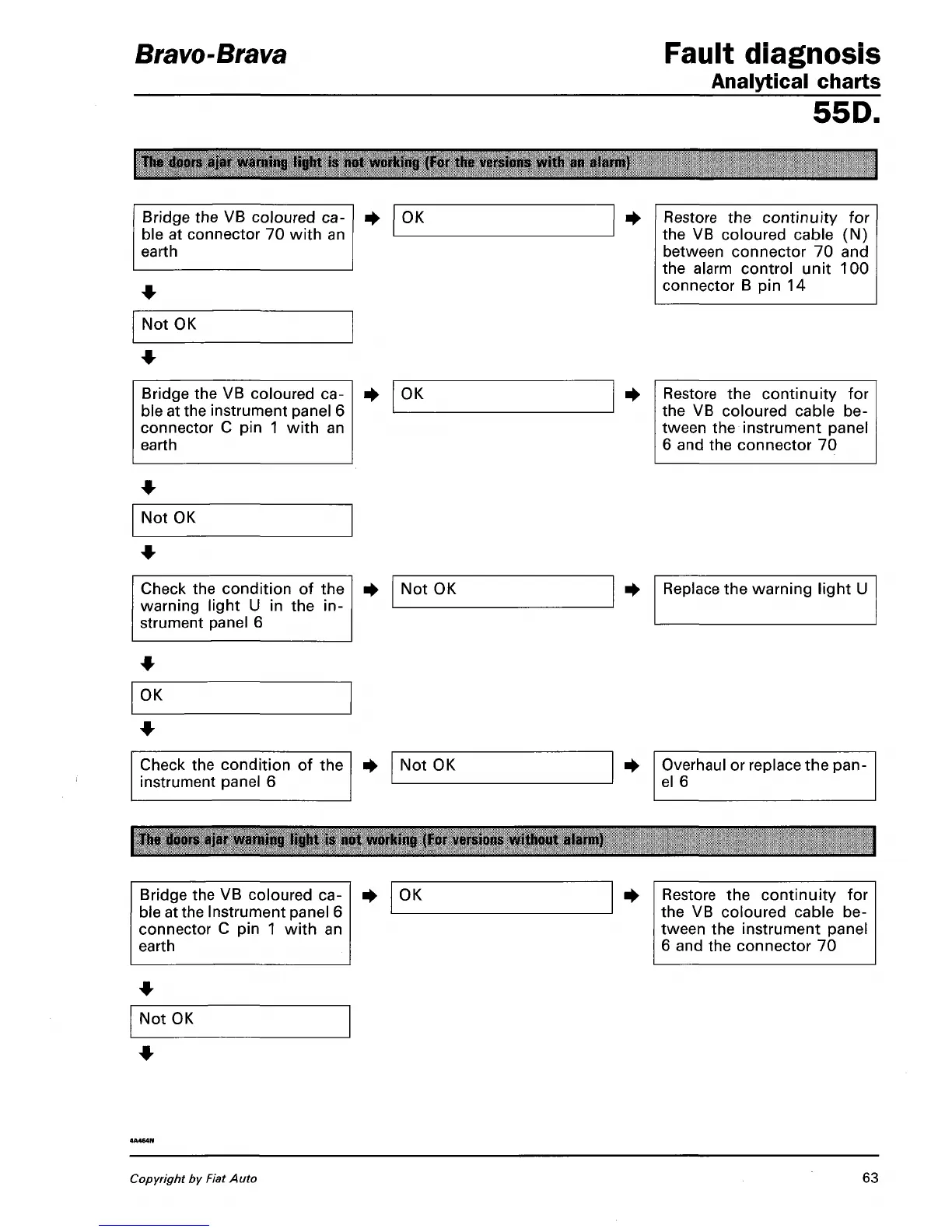

Bravo-Brava
Fault diagnosis
Analytical charts
55D.
The doors ajar warning light is not working (For the versions with an alarm)
Bridge the VB coloured ca-
ble at connector 70 with an
earth
OK
Not OK
Restore the continuity for
the VB coloured cable (N)
between connector 70 and
the alarm control unit 100
connector B pin 14
Bridge the VB coloured ca-
ble at the instrument panel 6
connector C pin 1 with an
earth
OK
Restore the continuity for
the VB coloured cable be-
tween the instrument panel
6 and the connector 70
Not OK
Check the condition of the
warning light U in the in-
strument panel 6
Not OK Replace the warning light U
OK
Check the condition of the
instrument panel 6
Not OK Overhaul or replace the
pan-
el 6
The doors ajar warning light is not working (For versions without alarm)
Bridge the VB coloured ca-
ble at the Instrument panel 6
connector C pin 1 with an
earth
OK Restore the continuity for
the VB coloured cable be-
tween the instrument panel
6 and the connector 70
Not OK
Copyright by Fiat Auto
63
