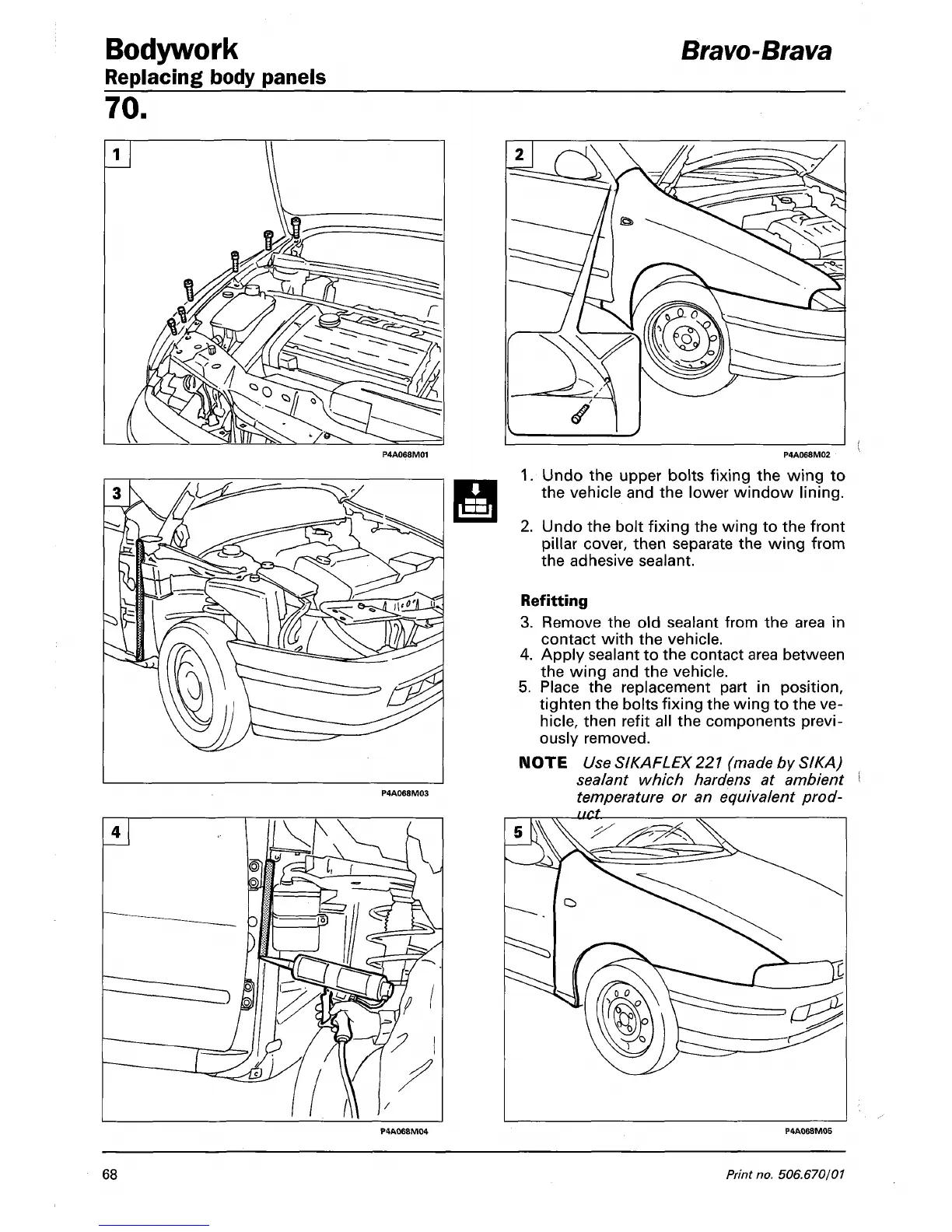

Bodywork
Replacing body panels
Bravo-Brava
70.
P4A068M01
1.
Undo the upper bolts fixing the wing to
the vehicle and the lower window lining.
2.
Undo the bolt fixing the wing to the front
pillar cover, then separate the wing from
the adhesive sealant.
Refitting
3. Remove the old sealant from the area in
contact with the vehicle.
4.
Apply sealant to the contact area between
the wing and the vehicle.
5. Place the replacement part in position,
tighten the bolts fixing the wing to the ve-
hicle,
then refit all the components previ-
ously removed.
NOTE Use SIKAFLEX 221 (made by SIKA)
sealant which hardens at ambient
temperature or an equivalent prod-
uct
68
Print no. 506.670/07
