Bodywork
Window glasses
70.
Bravo
Refitting
- In order to prepare the tailgate window to
be refitted, follow the instructions given for
the windscreen (see page 50).
- As far as applying the sealant is concerned,
there are no difficulties relating to the dis-
tance to be maintained from the edge of the
window. In effect, the sealant is applied di-
rectly on the inner edge of the seal which is
the pressed type.
P4A054M02

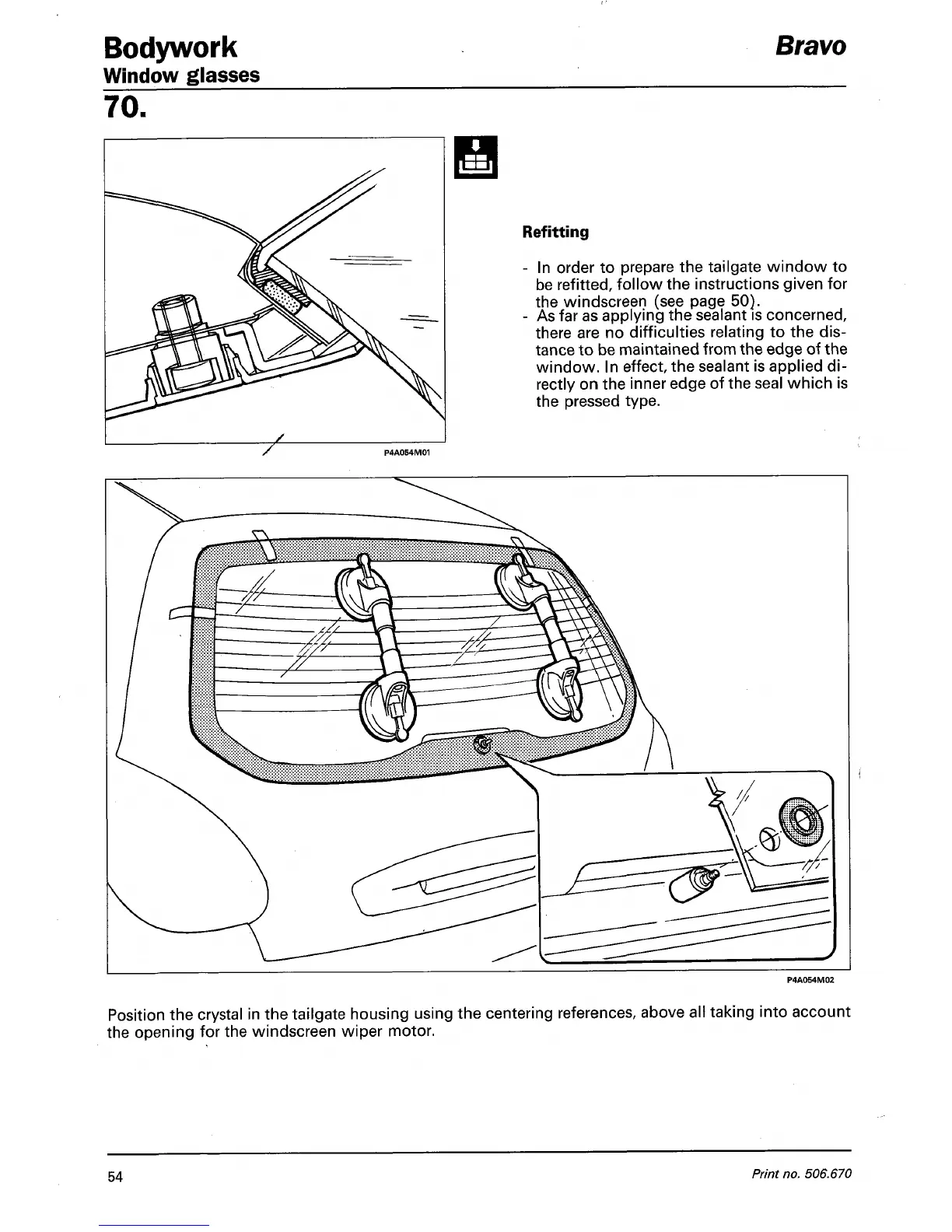

Position the crystal in the tailgate housing using the centering references, above all taking into account
the opening for the windscreen wiper motor.
54
Print no. 506.670
