Brava Bodywork

Window glasses

70.

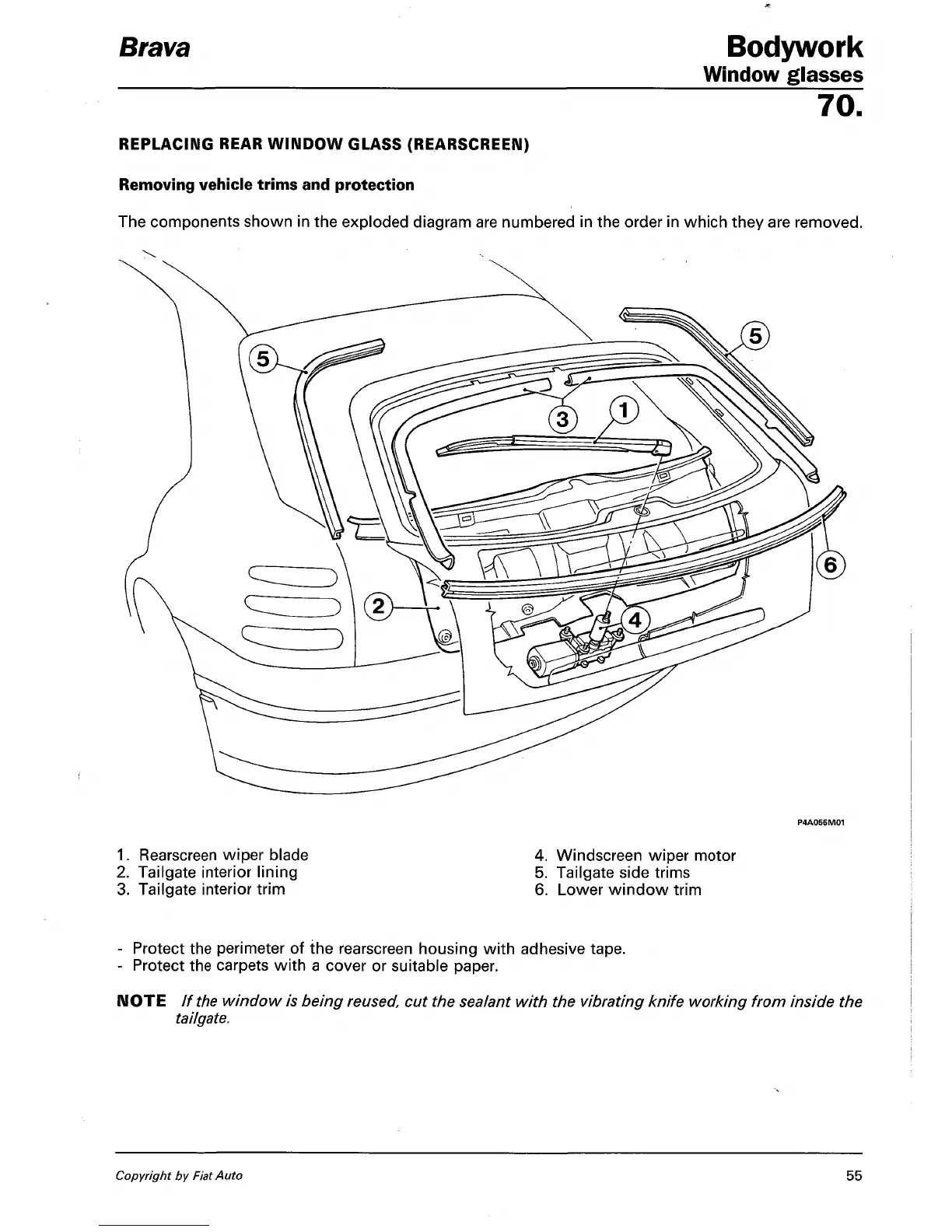

REPLACING REAR WINDOW GLASS (REARSCREEN)

Removing vehicle trims and protection

The components shown in the exploded diagram are numbered in the order in which they are removed.

P4A055M01

Rearscreen wiper blade 4. Windscreen wiper motor

Tailgate interior lining 5. Tailgate side trims

3. Tailgate interior trim 6. Lower window trim

- Protect the perimeter of the rearscreen housing with adhesive tape.

- Protect the carpets with a cover or suitable paper.

NOTE //

the

window is being reused, cut the sea/ant with the vibrating knife working from inside the

tailgate.
