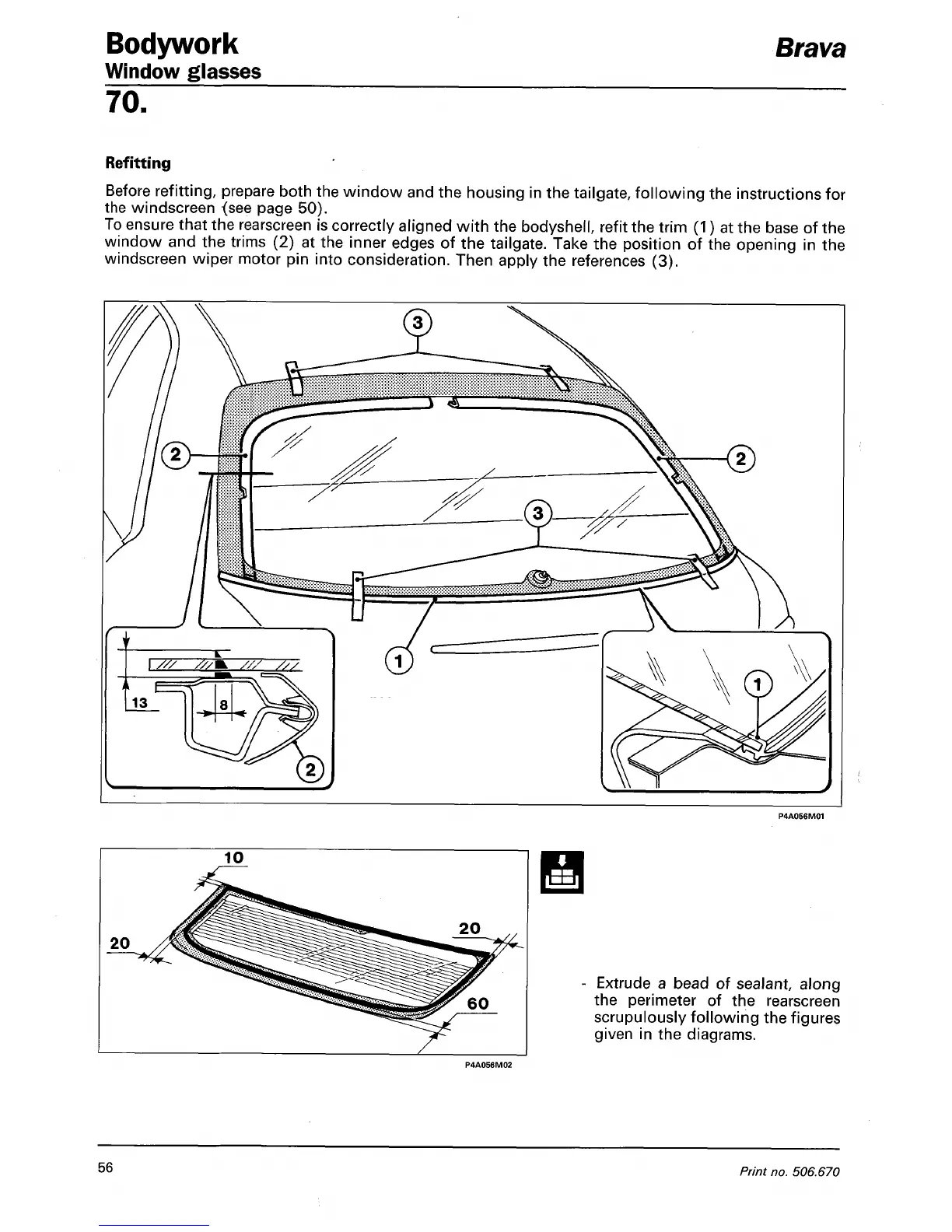

Bodywork Btava
Window glasses
70.
Refitting
Before refitting, prepare both the window and the housing in the tailgate, following the instructions for
the windscreen i(see page 50).
To ensure that the rearscreen is correctly aligned with the bodyshell, refit the trim (1) at the base of the
window and the trims (2) at the inner edges of the tailgate. Take the position of the opening in the
windscreen wiper motor pin into consideration. Then apply the references (3).
56
Print no. 506.670
