Bravo-Brava
Electrical equipment
Starting
55.
4.

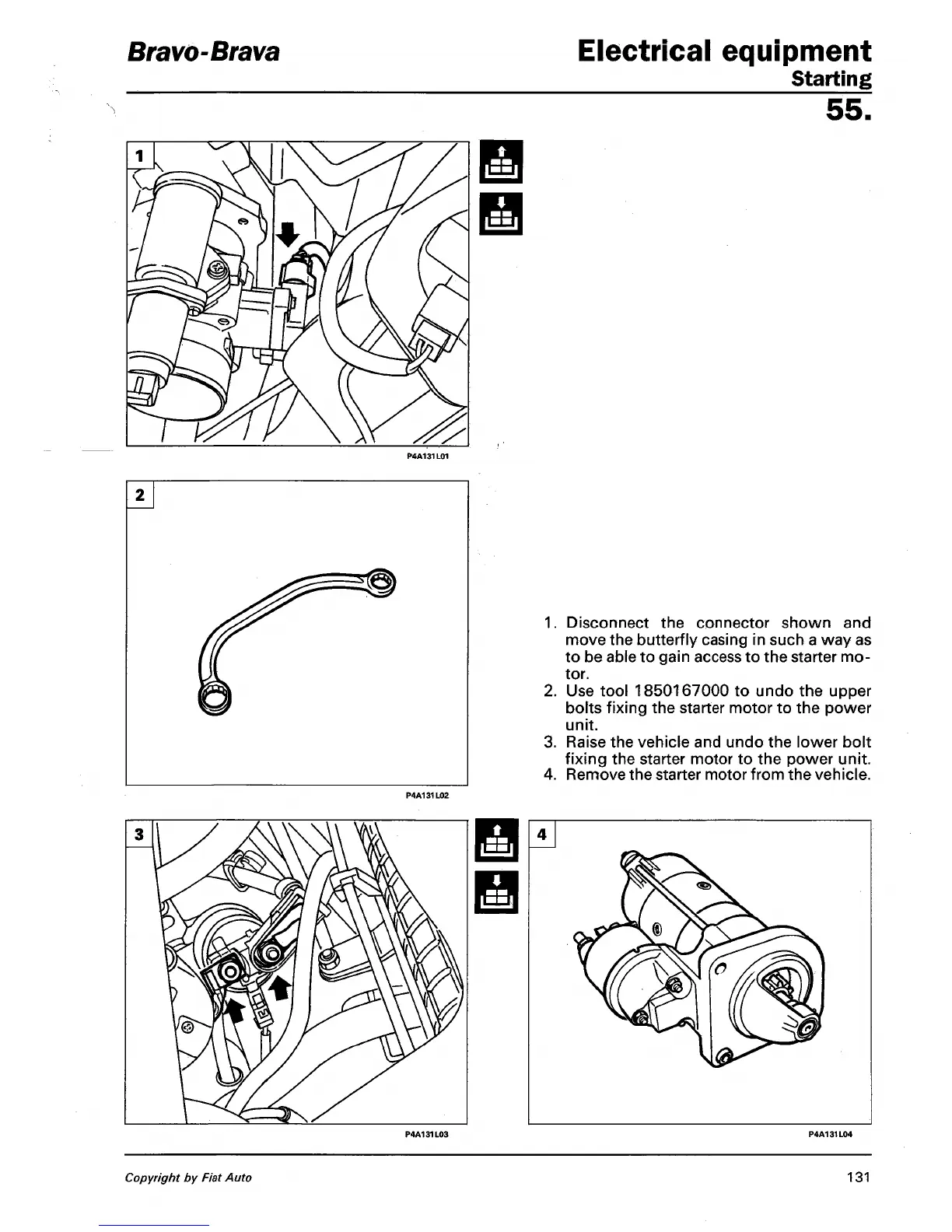

Disconnect the connector shown and
move the butterfly casing in such a way as
to be able to gain access to the starter mo-
tor.
Use tool 1850167000 to undo the upper
bolts fixing the starter motor to the power
unit.
Raise the vehicle and undo the lower bolt
fixing the starter motor to the power unit.
Remove the starter motor from the vehicle.
3 l|
p^
yl^
x$2£fc^v
<f§k
Wm
In
\\\ N^\
l\rvtm
AVAl
In
Copyright by Fiat Auto
131
