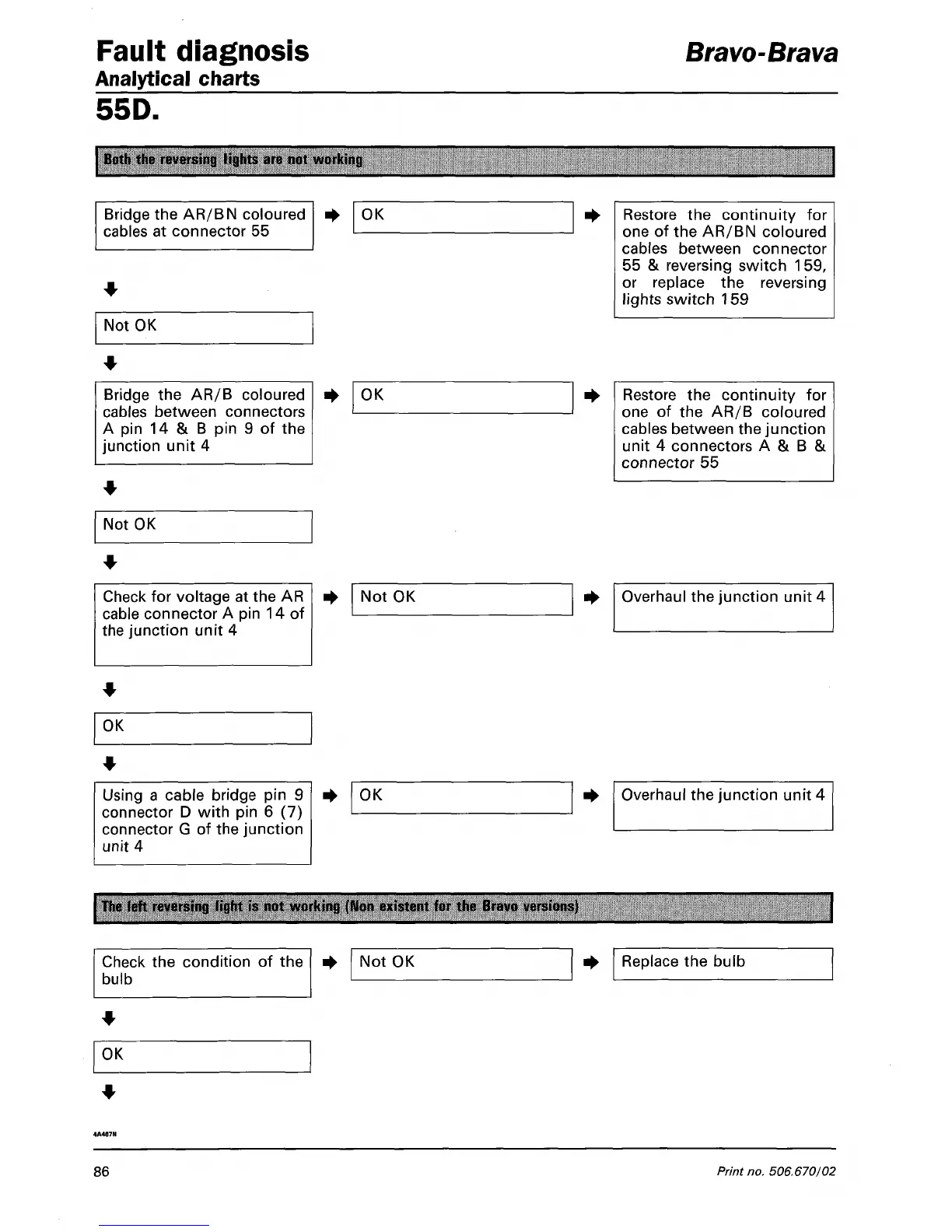

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Both the reveising lights are not woiking
Bridge the AR/BN coloured
cables at connector 55
OK
Not OK
Restore the continuity for
one of the AR/BN coloured
cables between connector
55 & reversing switch 159,
or replace the reversing
lights switch 159
Bridge the AR/B coloured
cables between connectors
A pin 14 & B pin 9 of the
junction unit 4
OK
Restore the continuity for
one of the AR/B coloured
cables between the junction
unit 4 connectors A & B &
connector 55
Not OK
Check for voltage at the AR
cable connector A pin 14 of
the junction unit 4
Not OK Overhaul the junction unit 4
OK
Using a cable bridge
connector D with pin
pin 9
6(7)
connector G of the junction
unit 4
OK Overhaul the junction unit 4
The left reversing light is not working (Non existent for the Bravo versions)
Check the condition of the
bulb
Not OK Replace the bulb
OK
86
Print no. 506.670/02
