Bravo-Brava
Fault diagnosis
Analytical charts
55 D.

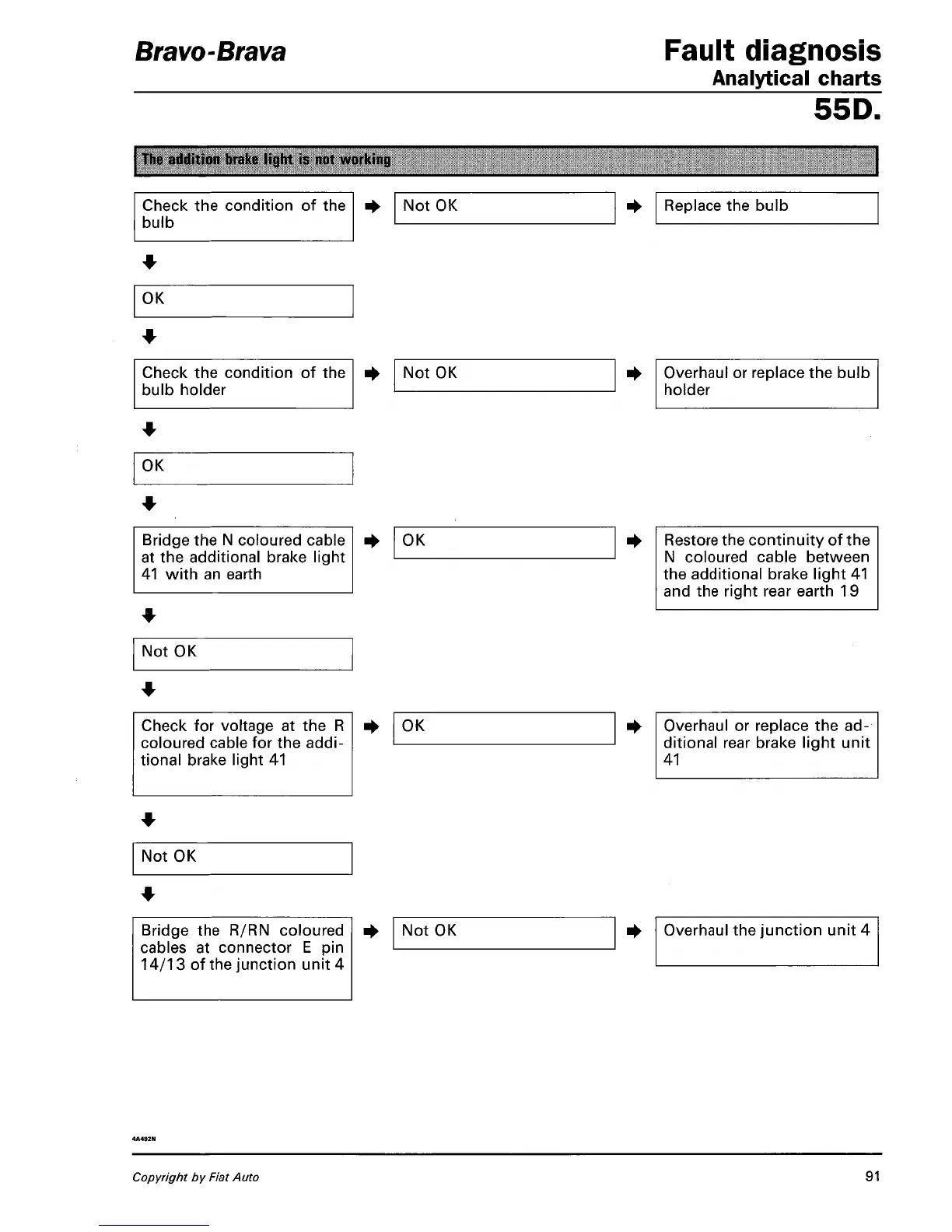

The addition brake light
is not
working
Check the condition of the
bulb
Not OK Replace the bulb
OK
Check the condition of the
bulb holder
Not OK
Overhaul or replace the bulb
holder
OK
Bridge the N coloured cable
at the additional brake light
41 with an earth
OK Restore the continuity of the
N coloured cable between
the additional brake light 41
and the right rear earth 19
Not OK
Check for voltage at the R
coloured cable for the
addi-
tional brake light 41
OK Overhaul or replace the ad-
ditional rear brake light unit
41
Not OK
Bridge the R/RN coloured
cables at connector E pin
14/13 of the junction unit 4
Not OK
Overhaul the junction unit 4
Copyright by Fiat Auto 91
