Electrical equipment
Connector blocks
55.

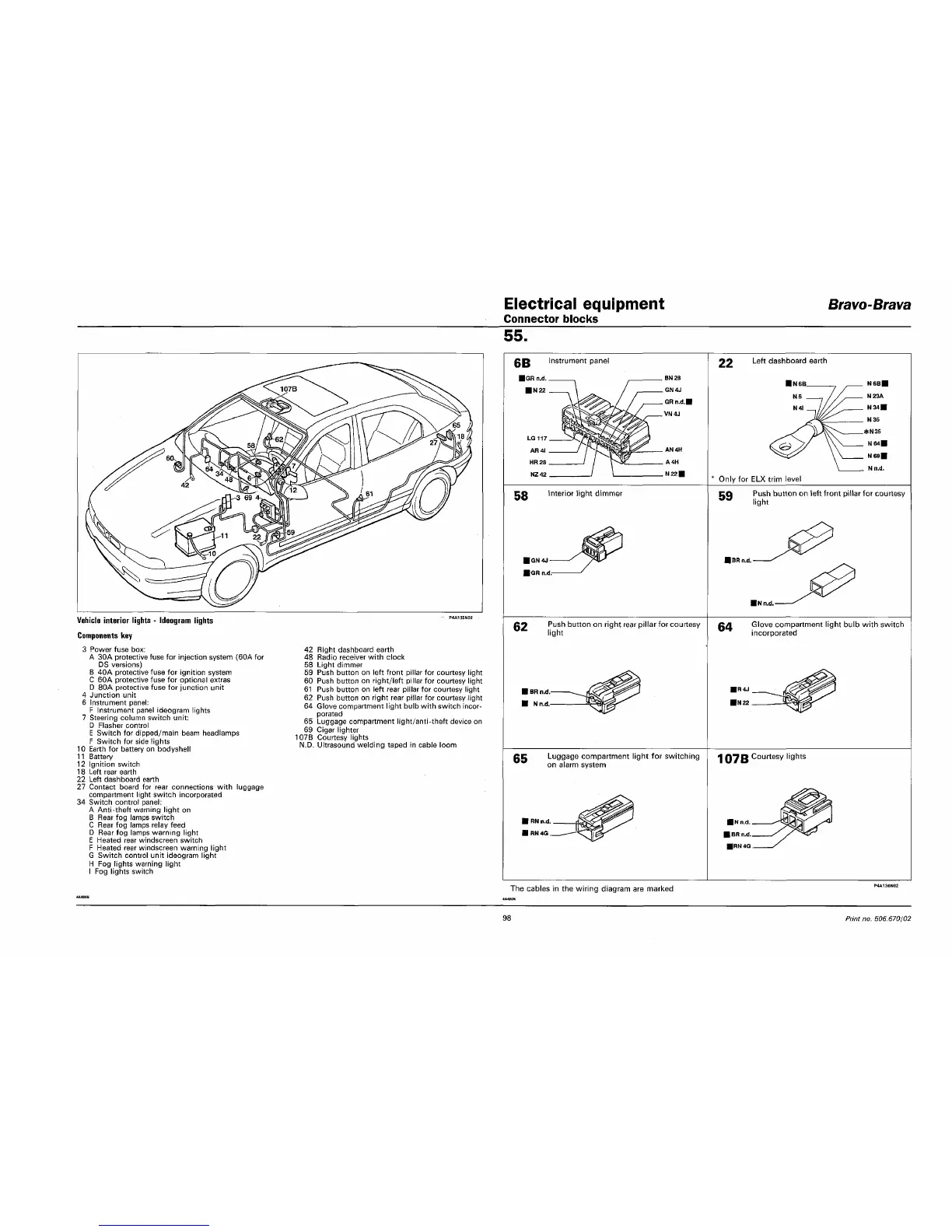

Vehicle interior lights - Ideogram lights
Components key
3 Power fuse box:
A 30A protective fuse for injection system (60A for
DS versions)
B 40A protective fuse for ignition system
C 60A protective fuse for optional extras
D 80A protective fuse for junction unit
4 Junction unit
6 Instrument panel:
F Instrument panel ideogram lights
7 Steering column switch unit:
D Flasher control
E Switch for dipped/main beam headlamps
F Switch for side lights
10 Earth for battery on bodyshell
11 Battery
12 Ignition switch
18 Left rear earth
22 Left dashboard earth
27 Contact board for rear connections with luggage
compartment light switch incorporated
34 Switch control panel:
A Anti-theft warning light on
B Rear fog lamps switch
C Rear fog lamps relay feed
D Rear fog lamps warning light
E Heated rear windscreen switch
F Heated rear windscreen warning light
G Switch control unit ideogram light
H Fog lights warning light
I Fog lights switch
98 Print no. 506.670/02
Btavo-Brava
42 Right dashboard earth
48 Radio receiver with clock
58 Light dimmer
59 Push button on left front pillar for courtesy light
60 Push button on right/left pillar for courtesy light
61 Push button on left rear pillar for courtesy light
62 Push button on right rear pillar for courtesy light
64 Glove compartment light bulb with switch incor-
porated
65 Luggage compartment light/anti-theft device on
69 Cigar lighter
107B Courtesy lights
N.D. Ultrasound welding taped in cable loom
CO Push button on right rear pillar for courtesy
V€m
light
CE Luggage compartment light for switching
on alarm system
tiA Glove compartment light bulb with switch
incorporated
1 07R Courtesy lights
The cables in the wiring diagram are marked
