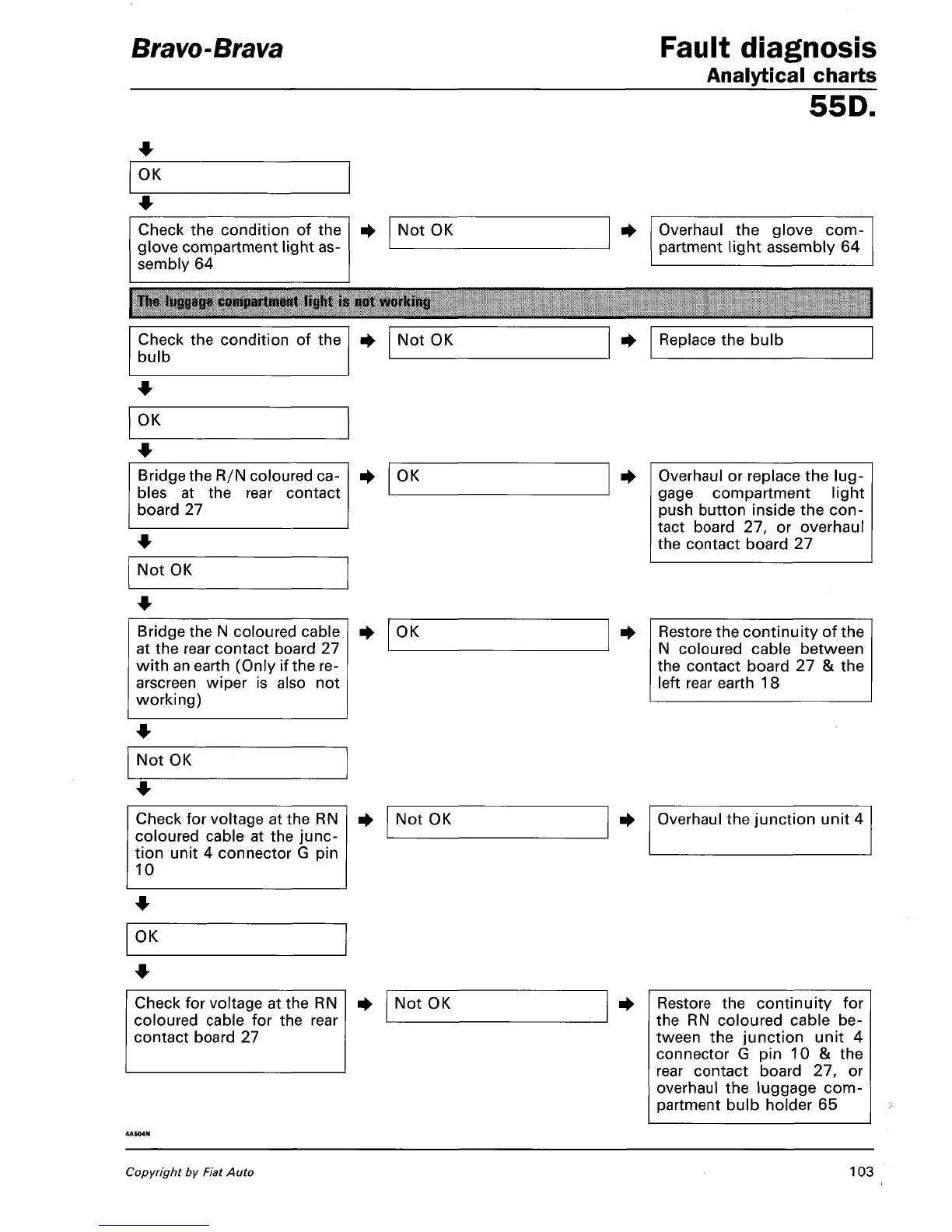

Bravo-Brava
Fault diagnosis
Analytical charts
55D.
OK
Check the condition of the
glove compartment light as-
sembly 64
+
Not OK
+
Overhaul the glove com-
partment light assembly 64
The luggage compartment light is not working
Check the condition of the
bulb
Not OK
Replace the bulb
OK
Bridge the R/N coloured ca-
bles at the rear contact
board 27
OK
Not OK
Overhaul or replace the lug-
gage compartment light
push button inside the con-
tact board 27, or overhaul
the contact board 27
Bridge the N coloured cable
at the rear contact board 27
with an earth (Only if the re-
arscreen wiper is also not
working)
OK Restore the continuity of the
N coloured cable between
the contact board 27 & the
left rear earth 18
Not OK
Check for voltage at the RN
coloured cable at the junc-
tion unit 4 connector G pin
10
Not OK Overhaul the junction unit 4
OK
Check for voltage at the RN
coloured cable for the rear
contact board 27
Not OK
Restore the continuity for
the RN coloured cable be-
tween the junction unit 4
connector G pin 10 & the
rear contact board 27, or
overhaul the luggage com-
partment bulb holder 65
