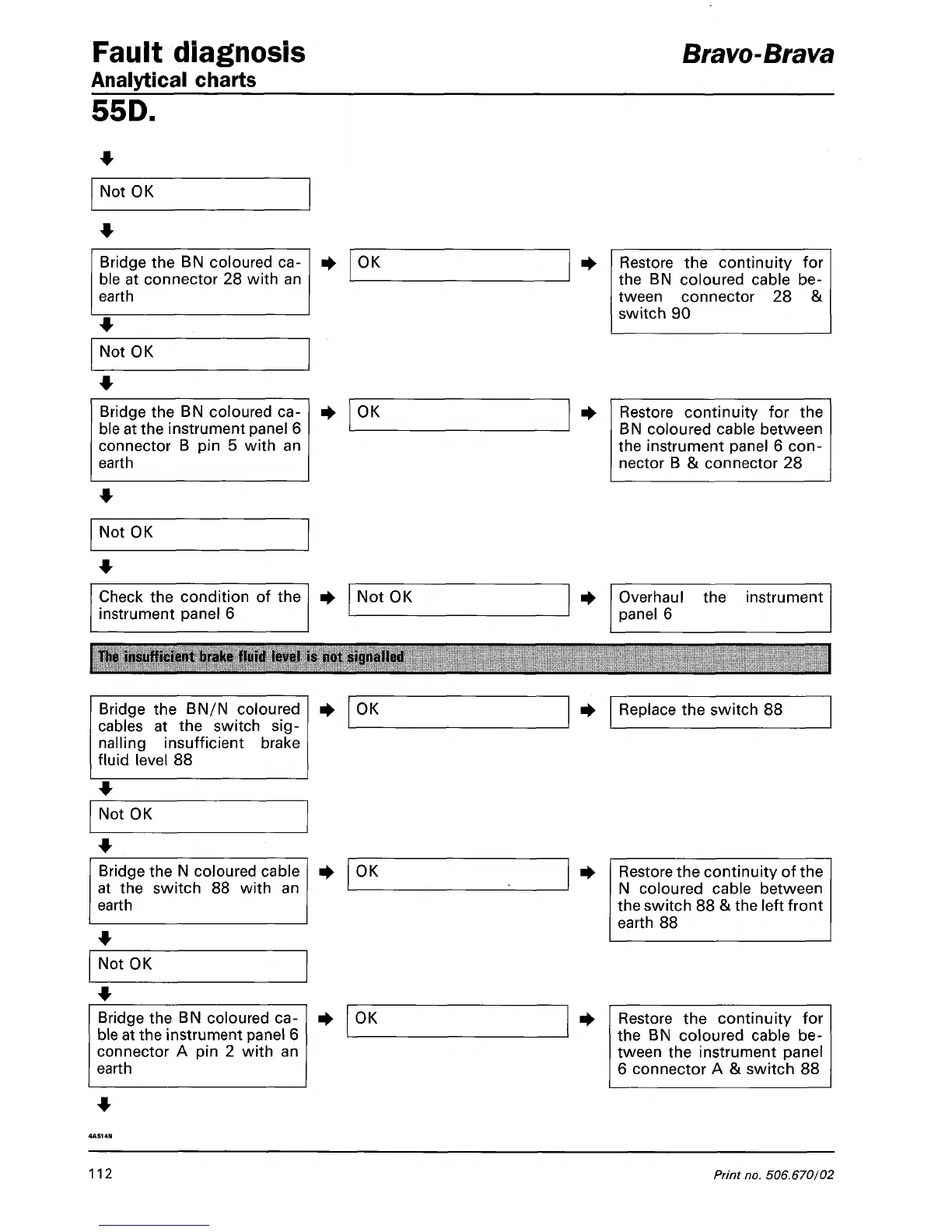

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Not OK
Bridge the BN coloured ca-
ble at connector 28 with an
earth
OK
Not OK
Restore the continuity for
the BN coloured cable be-
tween connector 28 &
switch 90
Bridge the BN coloured ca-
ble at the instrument panel 6
connector B pin 5 with an
earth
OK
Restore continuity for the
BN coloured cable between
the instrument panel 6 con-
nector B & connector 28
Not OK
Check the condition of the
instrument panel 6
Not OK
Overhaul
panel 6
the instrument
The insufficient brake fluid level is not signalled
Bridge the BN/N coloured
cables at the switch sig-
nalling insufficient brake
fluid level 88
OK
Replace the switch 88
Not OK
Bridge the N coloured cable
at the switch 88 with an
earth
OK
Not OK
Restore the continuity of the
N coloured cable between
the switch 88 & the left front
earth 88
Bridge the BN coloured ca-
ble at the instrument panel 6
connector A pin 2 with an
earth
OK
Restore the continuity for
the BN coloured cable be-
tween the instrument panel
6 connector A & switch 88
112
Print no. 506.670/02
