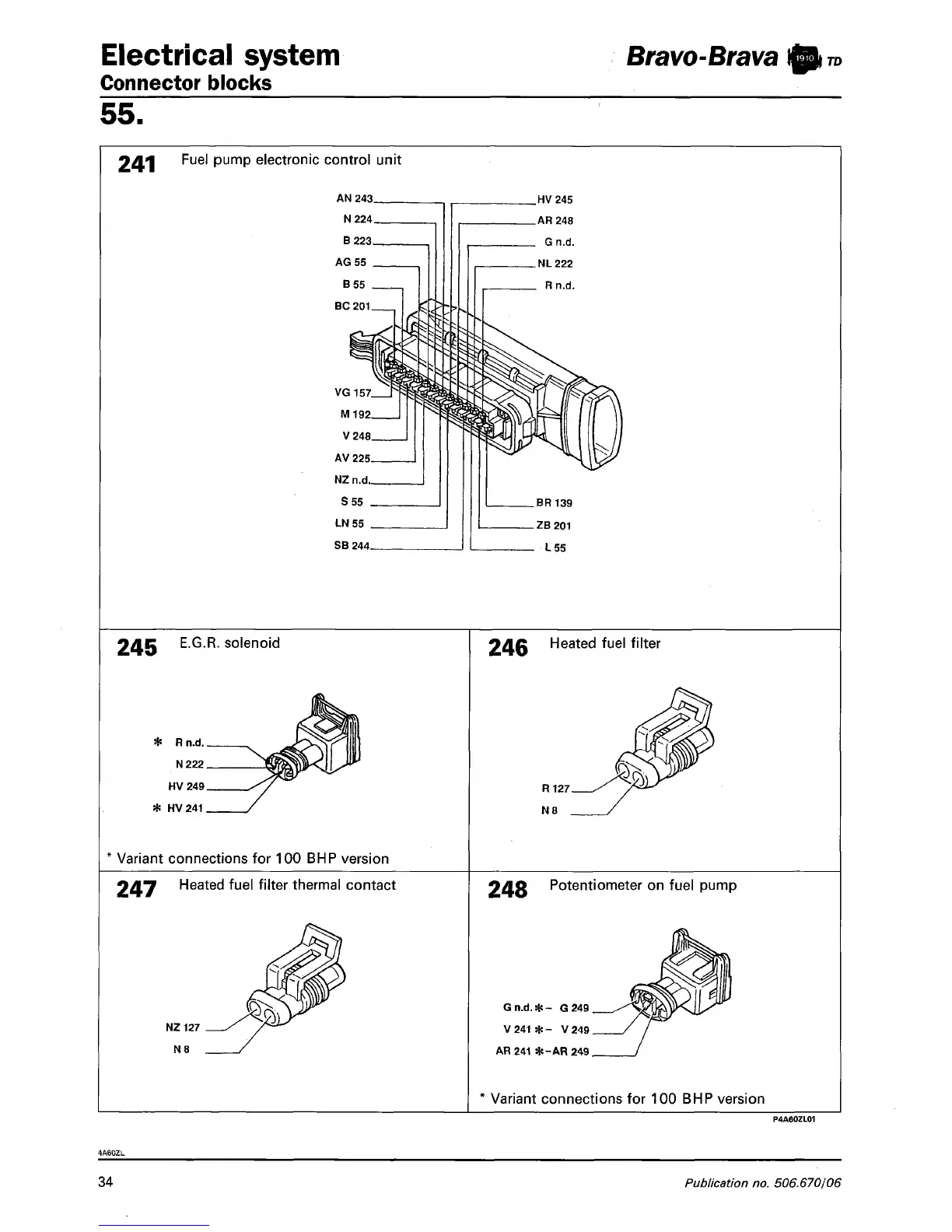

Electrical system

Connector blocks

Bravo-Brava

55.

241 ^

electronic control unit

SB 244

245

E.G.R. solenoid

HV249

* HV241

Variant connections for 100 BHP version

246

Heated fuel filter

247

Heated fuel filter thermal contact

248 Potentiometer on fuel pump

Gn.d.*-

G249

V241 *- V249

AR241 *-AR249

Variant connections for 100 BHP version
