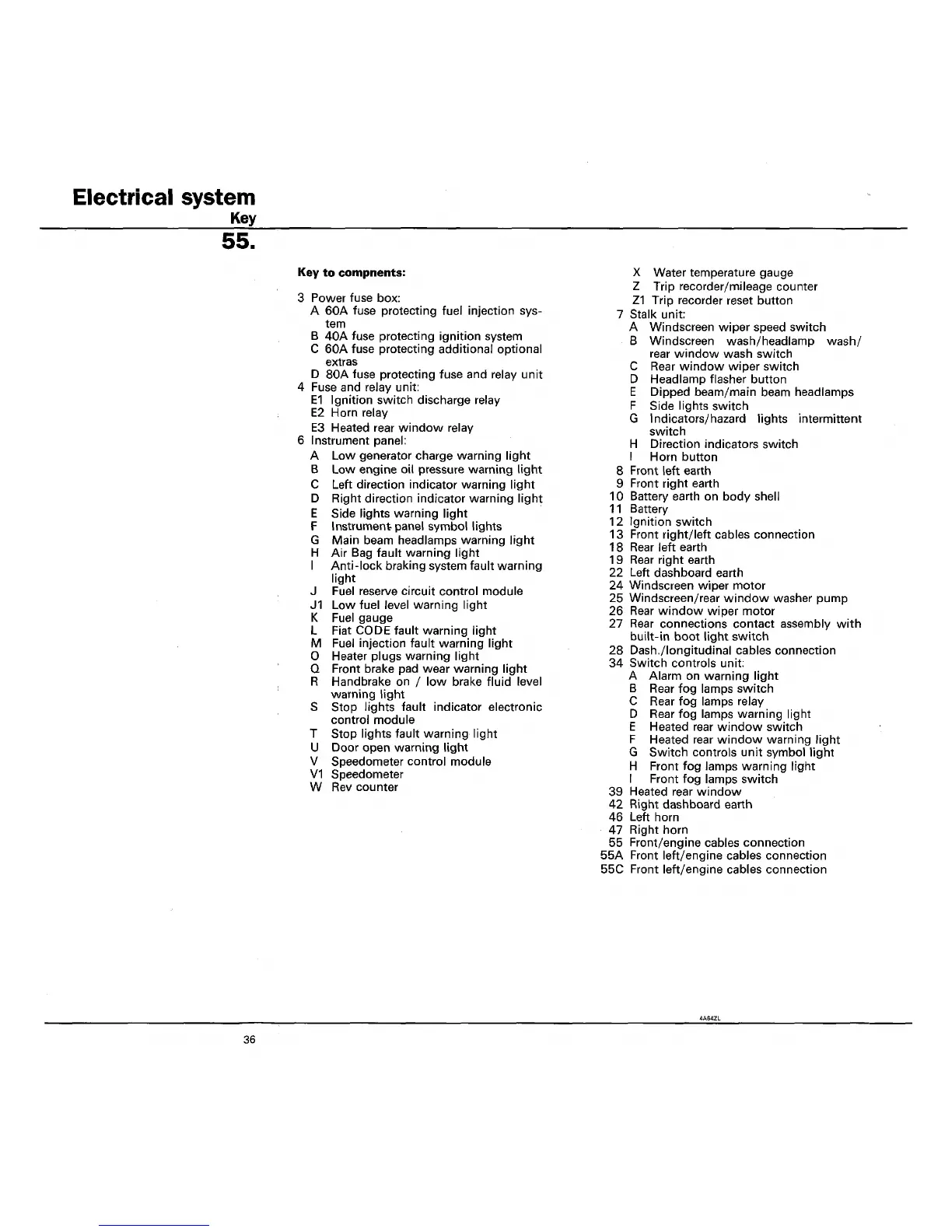

Key to compnents:
3 Power fuse box:
A 60A fuse protecting fuel injection sys-
tem
B 40A fuse protecting ignition system
C 60A fuse protecting additional optional
extras
D 80A fuse protecting fuse and relay unit
4 Fuse and relay unit:
E1 Ignition switch discharge relay
E2 Horn relay
E3 Heated rear window relay
6 Instrument panel:
A Low generator charge warning light
B Low engine oil pressure warning light
C Left direction indicator warning light
D Right direction indicator warning light
E Side lights warning light
F Instrument panel symbol lights
G Main beam headlamps warning light
H Air Bag fault warning light
I Anti-lock braking system fault warning
light
J Fuel reserve circuit control module
J1 Low fuel level warning light
K Fuel gauge
L Fiat CODE fault warning light
M Fuel injection fault warning light
0 Heater plugs warning light
Q Front brake pad wear warning light
R Handbrake on / low brake fluid level
warning light
S Stop lights fault indicator electronic
control module
T Stop lights fault warning light
U Door open warning light
V Speedometer control module
VI Speedometer
W Rev counter
X Water temperature gauge
Z Trip recorder/mileage counter
Z1 Trip recorder reset button
7 Stalk unit:
A Windscreen wiper speed switch
B Windscreen wash/headlamp wash/
rear window wash switch
C Rear window wiper switch
D Headlamp flasher button
E Dipped beam/main beam headlamps
F Side lights switch
G Indicators/hazard lights intermittent
switch
H Direction indicators switch
I Horn button
8 Front left earth
9 Front right earth
10 Battery earth on body shell
11 Battery
12 Ignition switch
13 Front right/left cables connection
18 Rear left earth
19 Rear right earth
22 Left dashboard earth
24 Windscreen wiper motor
25 Windscreen/rear window washer pump
26 Rear window wiper motor
27 Rear connections contact assembly with
built-in boot light switch
28 Dash./longitudinal cables connection
34 Switch controls unit:
A Alarm on warning light
B Rear fog lamps switch
C Rear fog lamps relay
D Rear fog lamps warning light
E Heated rear window switch
F Heated rear window warning light
G Switch controls unit symbol light
H Front fog lamps warning light
I Front fog lamps switch
39 Heated rear window
42 Right dashboard earth
46 Left horn
47 Right horn
55 Front/engine cables connection
55A Front left/engine cables connection
55C Front left/engine cables connection
