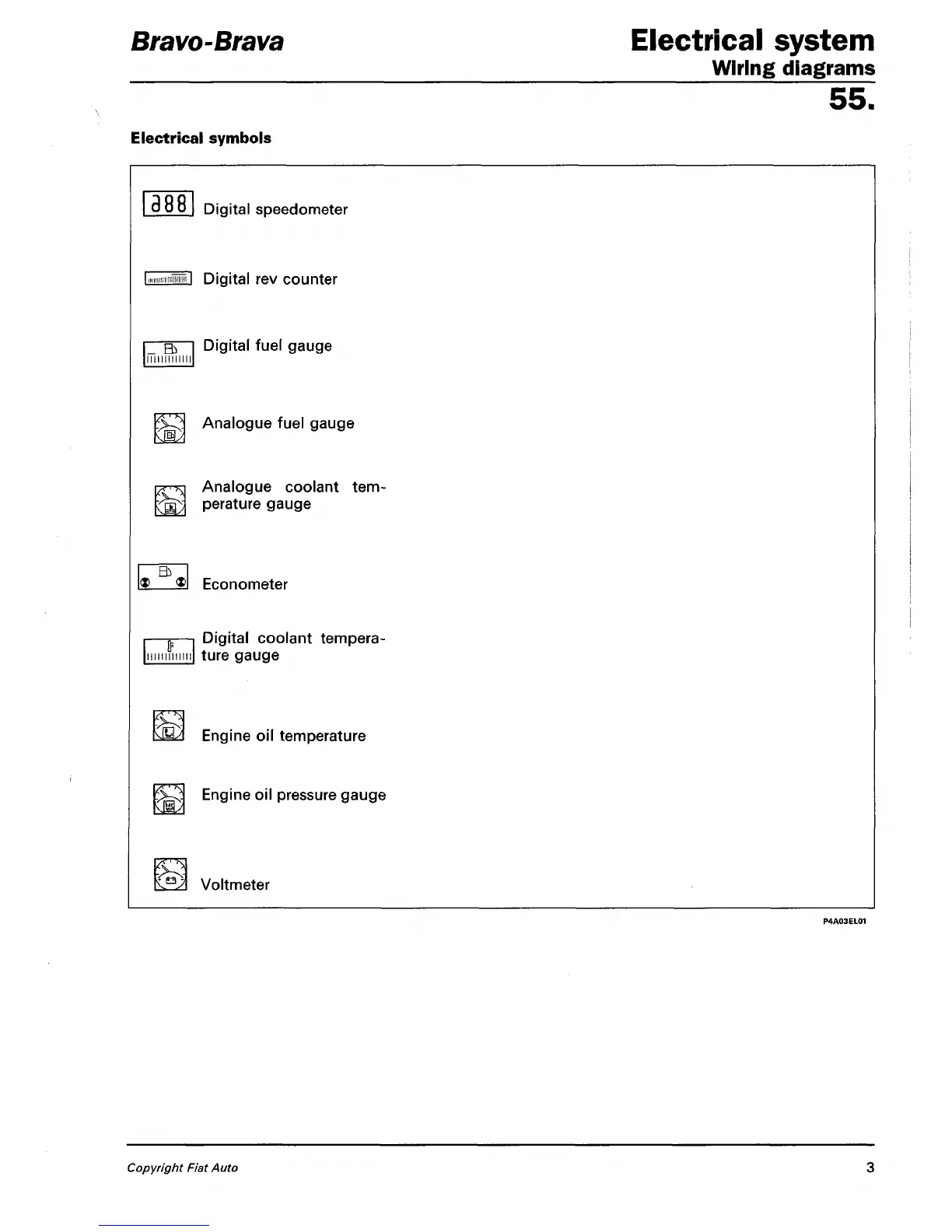

Bravo-Brava

Electrical system

Wiring diagrams

Electrical symbols

55.

388

IIIIIIIIIIIII

Digital speedometer

Digital

rev

counter

Digital fuel gauge

%^. Analogue fuel gauge

IMA

IIIIIIIIIIIII

K7%

LEJ

Analogue coolant

tem-

perature gauge

Econometer

Digital coolant tempera-

ture gauge

Engine

oil

temperature

^V< Engine

oil

pressure gauge

E3 7

Voltmeter
