Electrical system
Connections
Bravo-Brava
'98 range
55.

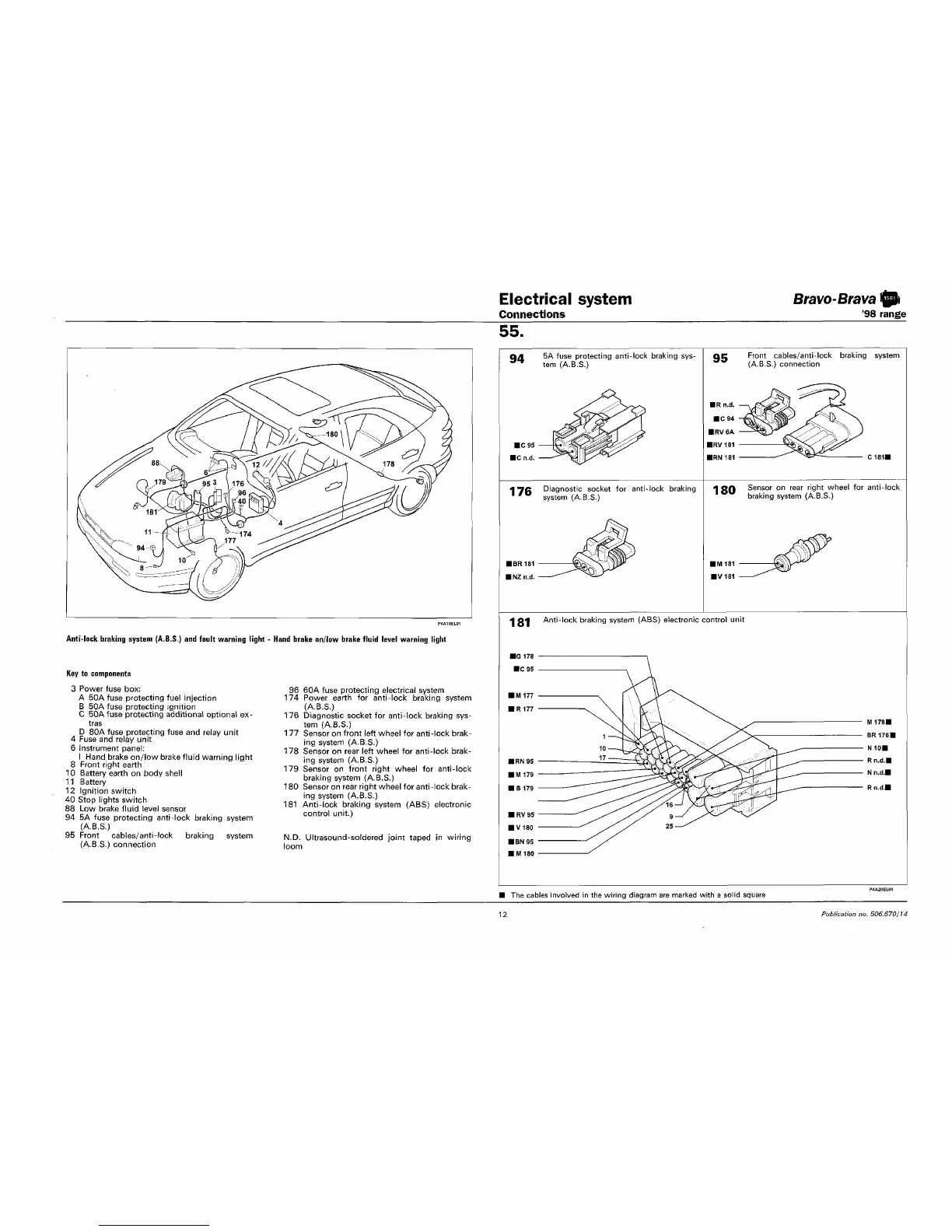

Anti-lock braking system (A.B.S.) and fault warning light - Hand brake on/low brake fluid level warning light
Key to components
3 Power fuse box:
A 50A fuse protecting fuel injection
B 50A fuse protecting ignition
C 50A fuse protecting additional optional ex-
tras
D 80A fuse protecting fuse and relay unit
4 Fuse and relay unit
6 Instrument panel:
I Hand brake on/low brake fluid warning light
8 Front right earth
10 Battery earth on body shell
11 Battery
12 Ignition switch
40 Stop lights switch
88 Low brake fluid level sensor
94 5A fuse protecting anti-lock braking system
(A.B.S.)
95 Front cables/anti-lock braking system
(A.B.S.) connection
96 60A fuse protecting electrical system
174 Power earth for anti-lock braking system
(A.B.S.)
176 Diagnostic socket for anti-lock braking sys-
tem (A.B.S.)
177 Sensor on front left wheel for anti-lock brak-
ing system (A.B.S.)
178 Sensor on rear left wheel for anti-lock brak-
ing system (A.B.S.)
179 Sensor on front right wheel for anti-lock
braking system (A.B.S.)
180 Sensor on rear right wheel for anti-lock brak-
ing system (A.B.S.)
181 Anti-lock braking system (ABS) electronic
control unit.)
N.D. Ultrasound-soldered joint taped in wiring
loom
Q/l 5A fuse protecting anti-lock braking sys-
^^ tern (A.B.S.)
>i TC Diagnostic socket for anti-lock braking
1 #w
system (A.B.S.)
95
Front cables/anti-lock braking system
(A.B.S.) connection
1 80 Sensor on rear right wheel for anti-lock
braking system (A.B.S.)
1 <>1 Anti-lock braking system (ABS) electronic control unit
The cables involved in the wiring diagram are marked with a solid square
12
Publication no. 506.670/74
