Fiat Brava - Page 215

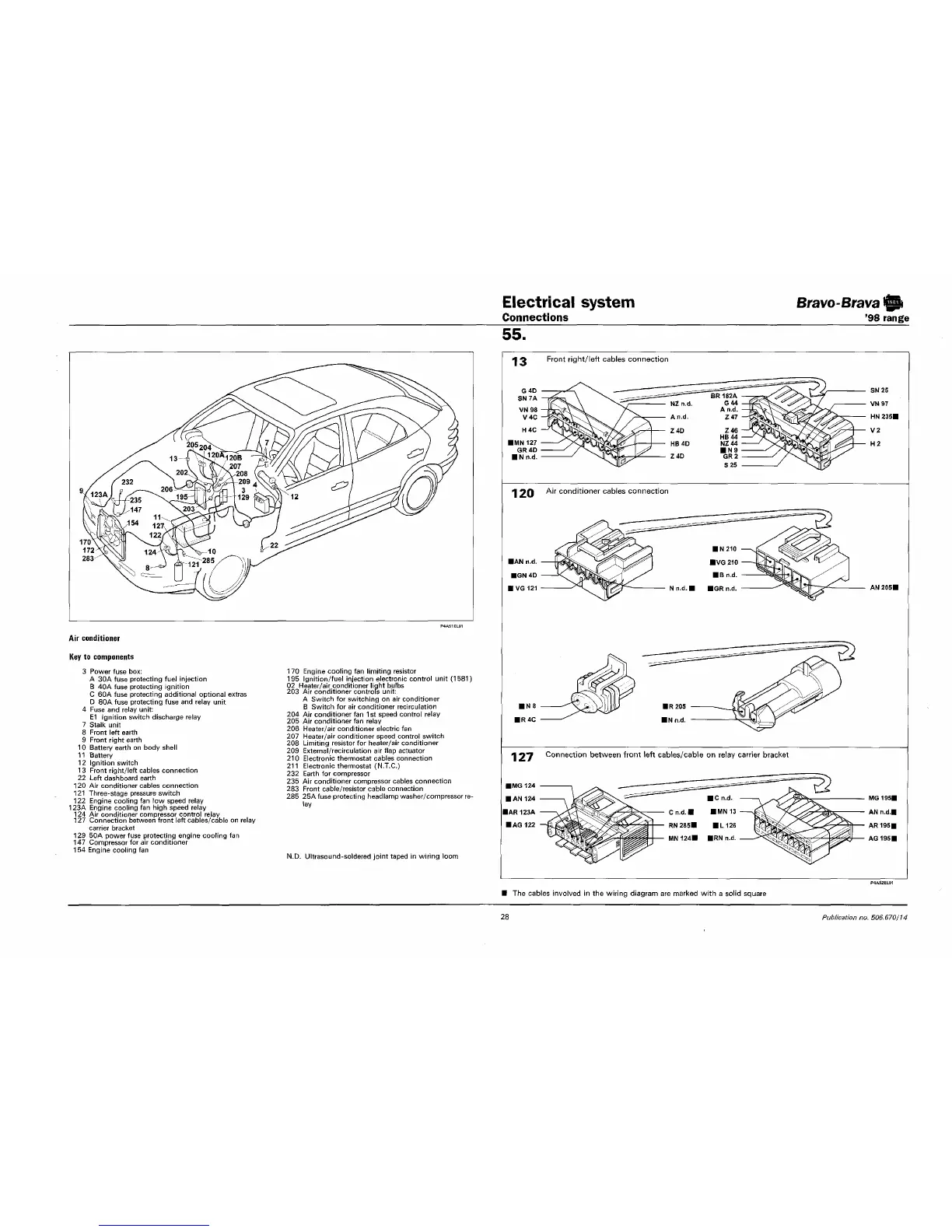

Electrical system
Connections
Bravo-Brava
'98 range
55.
Air conditioner
Key to components
3 Power fuse box:
A 30A fuse protecting fuel injection
B 40A fuse protecting ignition
C 60A fuse protecting additional optional extras
D 80A fuse protecting fuse and relay unit
4 Fuse and relay unit:
El Ignition switch discharge relay
7 Stalk unit
8 Front left earth
9 Front right earth
10 Battery earth on body shell
11 Battery
12 Ignition switch
13 Front right/left cables connection
22 Left dashboard earth
120 Air conditioner cables connection
121 Three-stage pressure switch
122 Engine cooling fan low speed relay
123A Engine cooling fan high speed relay
124 Air conditioner compressor control relay
127 Connection between front left cables/cable on relay
carrier bracket
129 50A power fuse protecting engine cooling fan
147 Compressor for air conditioner
154 Engine cooling fan
170 Engine cooling fan limiting resistor
195 Ignition/fuel injection electronic control unit (1581)
02 Heater/air conditioner light bulbs
203 Air conditioner controls unit:
A Switch for switching on air conditioner
B Switch for air conditioner recirculation
204 Air conditioner fan 1st speed control relay
205 Air conditioner fan relay
206 Heater/air conditioner electric fan
207 Heater/air conditioner speed control switch
208 Limiting resistor for heater/air conditioner
209 External/recirculation air flap actuator
210 Electronic thermostat cables connection
211 Electronic thermostat (N.T.C.)
232 Earth for compressor
235 Air conditioner compressor cables connection
283 Front cable/resistor cable connection
285 25A fuse protecting headlamp washer/compressor re-
lay
N.D. Ultrasound-soldered joint taped in wiring loom
1 o Front right/left cables connection
120
Air conditioner cables connection
1 07 Connection between front left cables/cable on relay carrier bracket
Cn.d.l
RN 285 ■
MN 124B
■ Cn.d.
■ MN 13
■ L126
■ RN n.d.
The cables involved in the wiring diagram are marked with a solid square
28
Publication no. 506.670/14
