Electrical system
Connections
Bravo-Brava
©
'98 range

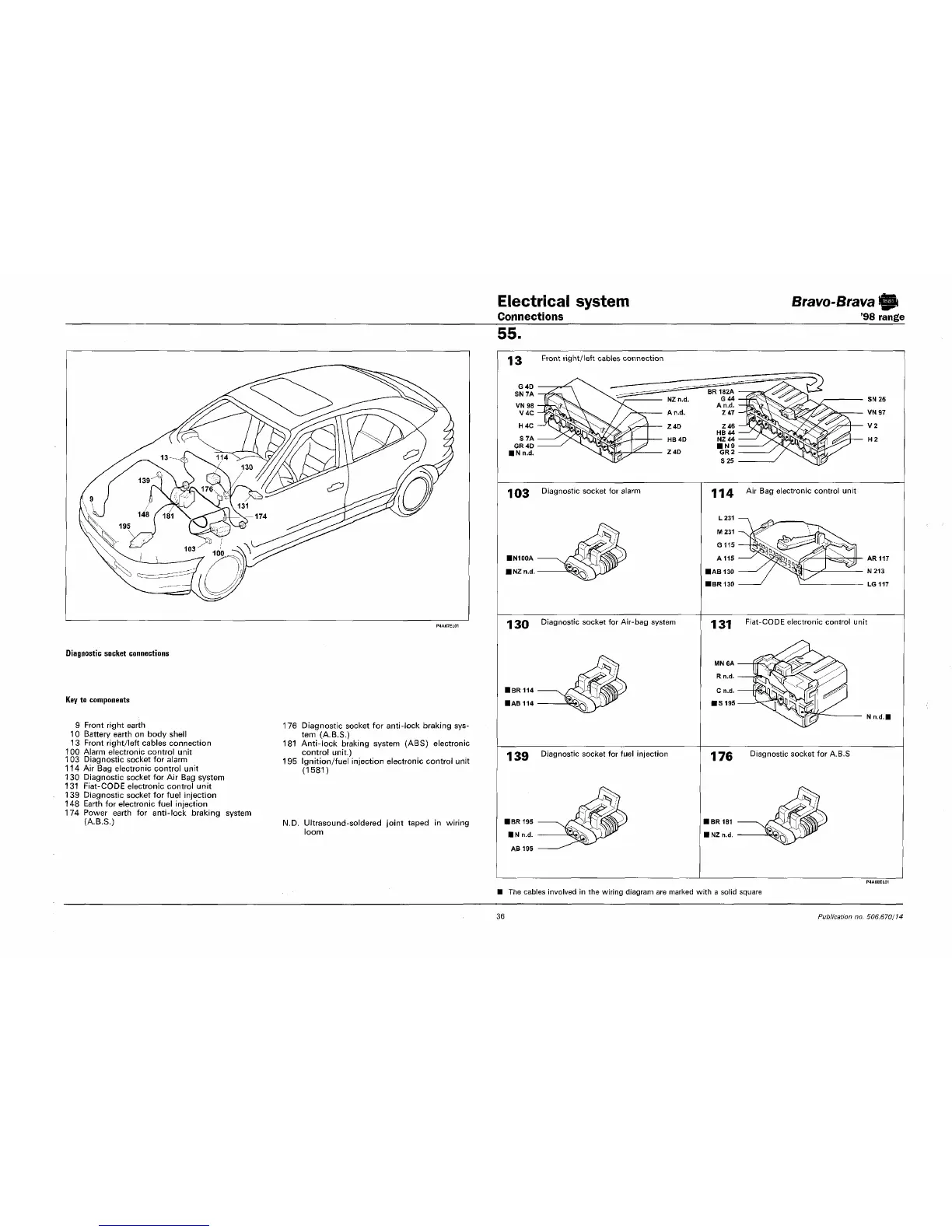

Diagnostic socket connections
Key to components
9 Front right earth
10 Battery earth on body shell
13 Front right/left cables connection
100 Alarm electronic control unit
1 03 Diagnostic socket for alarm
114 Air Bag electronic control unit
130 Diagnostic socket for Air Bag system
131 Fiat-CODE electronic control unit
139 Diagnostic socket for fuel injection
148 Earth for electronic fuel injection
174 Power earth for anti-lock braking system
(A.B.S.)
176 Diagnostic socket for anti-lock braking sys-
tem (A.B.S.)
181 Anti-lock braking system (ABS) electronic
control unit.)
195 Ignition/fuel injection electronic control unit
(1581)
N.D. Ultrasound-soldered joint taped in wiring
loom
55.
1 O Front right/left cables connection
103 Diagnostic socket for alarm
1JQ Diagnostic socket for Air-bag system
1 4Q Diagnostic socket for fuel injection
114 *'
r
^
as e
'
ectron
'
c
control unit
131
Fiat-CODE electronic control unit
1 ^g Diagnostic socket for A.B.S
The cables involved in the wiring diagram are marked with a solid square
36
Publication no. 508.670/14
