Fiat Brava - Page 225

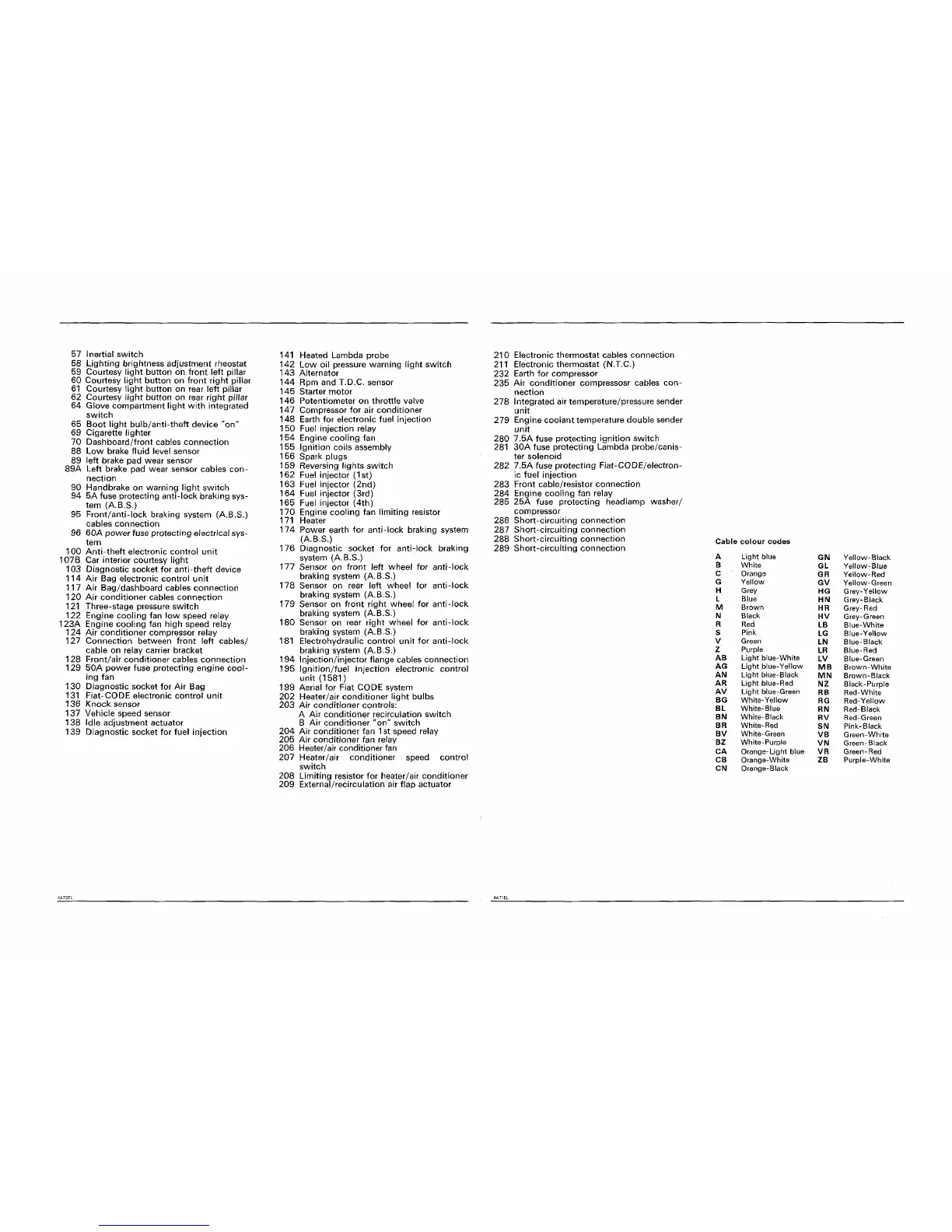

57 Inertial switch
58 Lighting brightness adjustment rheostat
59 Courtesy light button on front left pillar
60 Courtesy light button on front right pillar
61 Courtesy light button on rear left pillar
62 Courtesy light button on rear right pillar
64 Glove compartment light with integrated
switch
65 Boot light bulb/anti-theft device "on"
69 Cigarette lighter
70 Dashboard/front cables connection
88 Low brake fluid level sensor
89 left brake pad wear sensor
89A Left brake pad wear sensor cables con-
nection
90 Handbrake on warning light switch
94 5A fuse protecting anti-lock braking sys-
tem (A.B.S.)
95 Front/anti-lock braking system (A.B.S.)
cables connection
96 60A power fuse protecting electrical sys-
tem
100 Anti-theft electronic control unit
107B Car interior courtesy light
103 Diagnostic socket for anti-theft device
114 Air Bag electronic control unit
117 Air Bag/dashboard cables connection
120 Air conditioner cables connection
121 Three-stage pressure switch
122 Engine cooling fan low speed relay
123A Engine cooling fan high speed relay
124 Air conditioner compressor relay
127 Connection between front left cables/
cable on relay carrier bracket
128 Front/air conditioner cables connection
129 50A power fuse protecting engine cool-
ing fan
130 Diagnostic socket for Air Bag
131 Fiat-CODE electronic control unit
136 Knock sensor
137 Vehicle speed sensor
138 Idle adjustment actuator
139 Diagnostic socket for fuel injection
141 Heated Lambda probe
142 Low oil pressure warning light switch
143 Alternator
144 Rpm and T.D.C. sensor
145 Starter motor
146 Potentiometer on throttle valve
147 Compressor for air conditioner
148 Earth for electronic fuel injection
150 Fuel injection relay
154 Engine cooling fan
155 Ignition coils assembly
156 Spark plugs
1 59 Reversing lights switch
162 Fuel injector (1st)
163 Fuel injector (2nd)
164 Fuel injector (3rd)
165 Fuel injector (4th)
170 Engine cooling fan limiting resistor
171 Heater
174 Power earth for anti-lock braking system
(A.B.S.)
176 Diagnostic socket for anti-lock braking
system (A.B.S.)
177 Sensor on front left wheel for anti-lock
braking system (A.B.S.)
178 Sensor on rear left wheel for anti-lock
braking system (A.B.S.)
179 Sensor on front right wheel for anti-lock
braking system (A.B.S.)
180 Sensor on rear right wheel for anti-lock
braking system (A.B.S.)
181 Electrohydraulic control unit for anti-lock
braking system (A.B.S.)
194 Injection/injector flange cables connection
195 Ignition/fuel injection electronic control
unit (1581)
199 Aerial for Fiat CODE system
202 Heater/air conditioner light bulbs
203 Air conditioner controls:
A Air conditioner recirculation switch
B Air conditioner "on" switch
204 Air conditioner fan 1st speed relay
205 Air conditioner fan relay
206 Heater/air conditioner fan
207 Heater/air conditioner speed control
switch
208 Limiting resistor for heater/air conditioner
209 External/recirculation air flap actuator
210 Electronic thermostat cables connection
211 Electronic thermostat (N.T.C.)
232 Earth for compressor
235 Air conditioner compressosr cables con-
nection
278 Integrated air temperature/pressure sender
unit
279 Engine coolant temperature double sender
unit
280 7.5A fuse protecting ignition switch
281 30A fuse protecting Lambda probe/canis-
ter solenoid
282 7.5A fuse protecting Fiat-CODE/electron-
ic fuel injection
283 Front cable/resistor connection
284 Engine cooling fan relay
285 25A fuse protecting headlamp washer/
compressor
286 Short-circuiting connection
287 Short-circuiting connection
288 Short-circuiting connection
289 Short-circuiting connection
Cable colour codes
A
B
C
G
H
L
M
N
R
S
V
Z
AB
AG
AN
AR
AV
BG
BL
BN
BR
BV
BZ
CA
CB
CN
Light blue
White
Orange
Yellow
Grey
Blue
Brown
Black
Red
Pink
Green
Purple
Light blue-White
Light blue-Yellow
Light blue-Black
Light blue-Red
Light blue-Green
White-Yellow
White-Blue
White-Black
White-Red
White-Green
White-Purple
Orange-Light blue
Orange-White
Orange-Black
GN
GL
GR
GV
HG
HN
HR
HV
LB
LG
LN
LR
LV
MB
MN
NZ
RB
RG
RN
RV
SN
VB
VN
VR
ZB
Yellow-Black
Yellow-Blue
Yellow-Red
Yellow-Green
Grey-Yellow
Grey-Black
Grey-Red
Grey-Green
Blue-White
Blue-Yellow
Blue-Black
Blue-Red
Blue-Green
Brown-White
Brown-Black
Black-Purple
Red-White
Red-Yellow
Red-Black
Red-Green
Pink-Black
Green-White
Green-Black
Green-Red
Purple-White
