Fiat Brava - Page 238

Bravo-Brava Electrical equipment

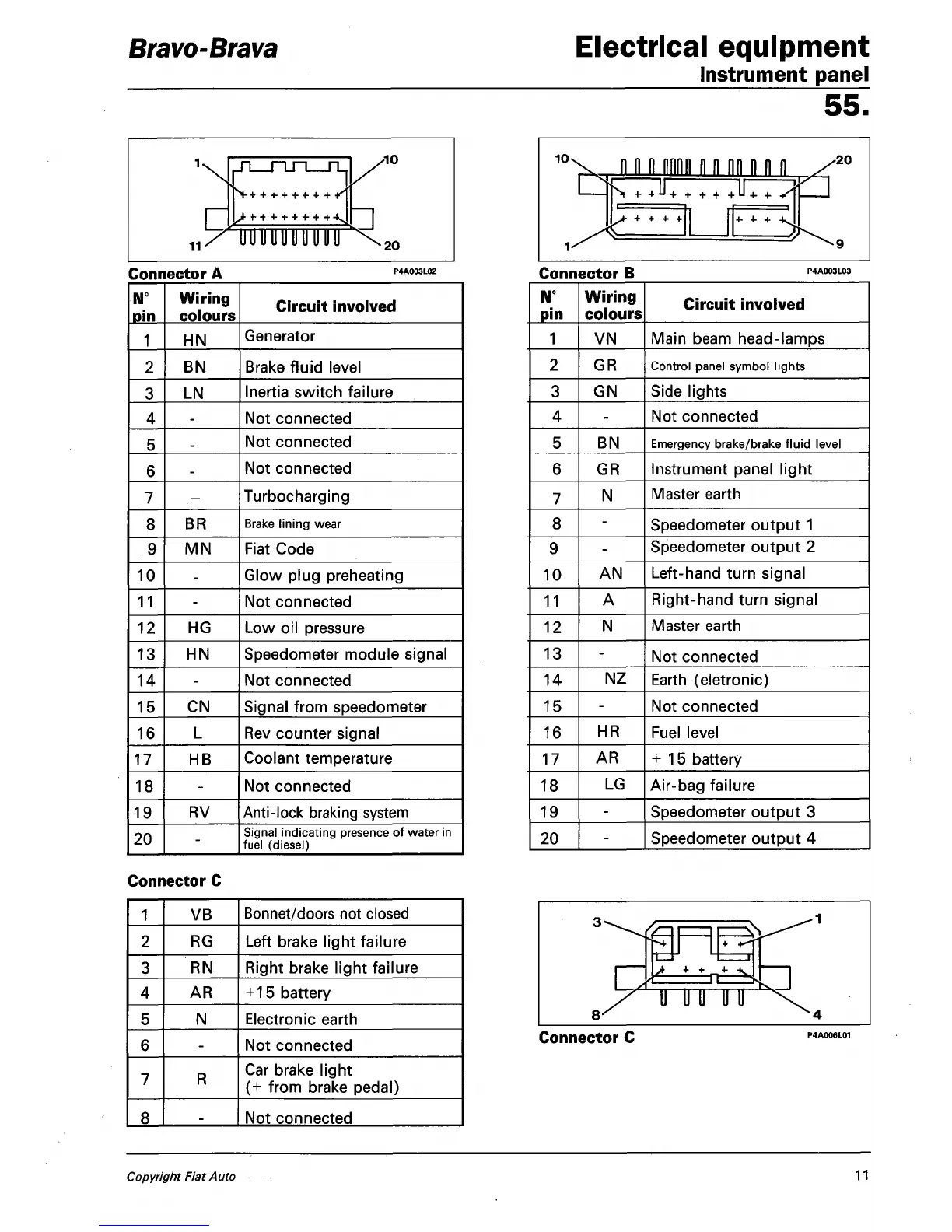

Instrument panel
55.
Connector A
N
pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Wiring
colours
HN
BN
LN
-
_
-
-
BR
MN
-
-
HG
HN
-
CN
L
HB
-
RV
-
P4A003L02
Circuit involved
Generator
Brake fluid level
Inertia switch failure
Not connected
Not connected
Not connected
Turbocharging
Brake lining wear
Fiat Code
Glow plug preheating
Not connected
Low oil pressure
Speedometer module signal
Not connected
Signal from speedometer
Rev counter signal
Coolant temperature
Not connected
Anti-lock braking system
Signal indicating presence of water in
fuel (diesel)
Connector C
1
2
3
4
5
6
7
8
VB
RG
RN
AR
N
-
R
_
Bonnet/doors not closed
Left brake light failure
Right brake light failure
+15 battery
Electronic earth
Not connected
Car brake light
(+ from brake pedal)
Not connected
,0
\ n n n nnnn n«nn n n n /
2
°
^
\+4-U
+ + +++
U
+ + H
^
^
+ + + t
4- 4- + -k^
^^
^^9
Connector B
N
pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Wiring
colours
VN
GR
GN
-
BN
GR
N
-
-
AN
A
N
-
NZ
-
HR
AR
LG
-
-
P4A003L03
Circuit involved
Main beam head-lamps
Control panel symbol lights
Side lights
Not connected
Emergency brake/brake fluid level
Instrument panel light
Master earth
Speedometer output 1
Speedometer output 2
Left-hand turn signal
Right-hand turn signal
Master earth
Not connected
Earth (eletronic)
Not connected
Fuel level
+ 15 battery
Air-bag failure
Speedometer output 3
Speedometer output 4
Connector C
Copyright Fiat Auto
11
