Brava

Electrical system

Lighting

55.

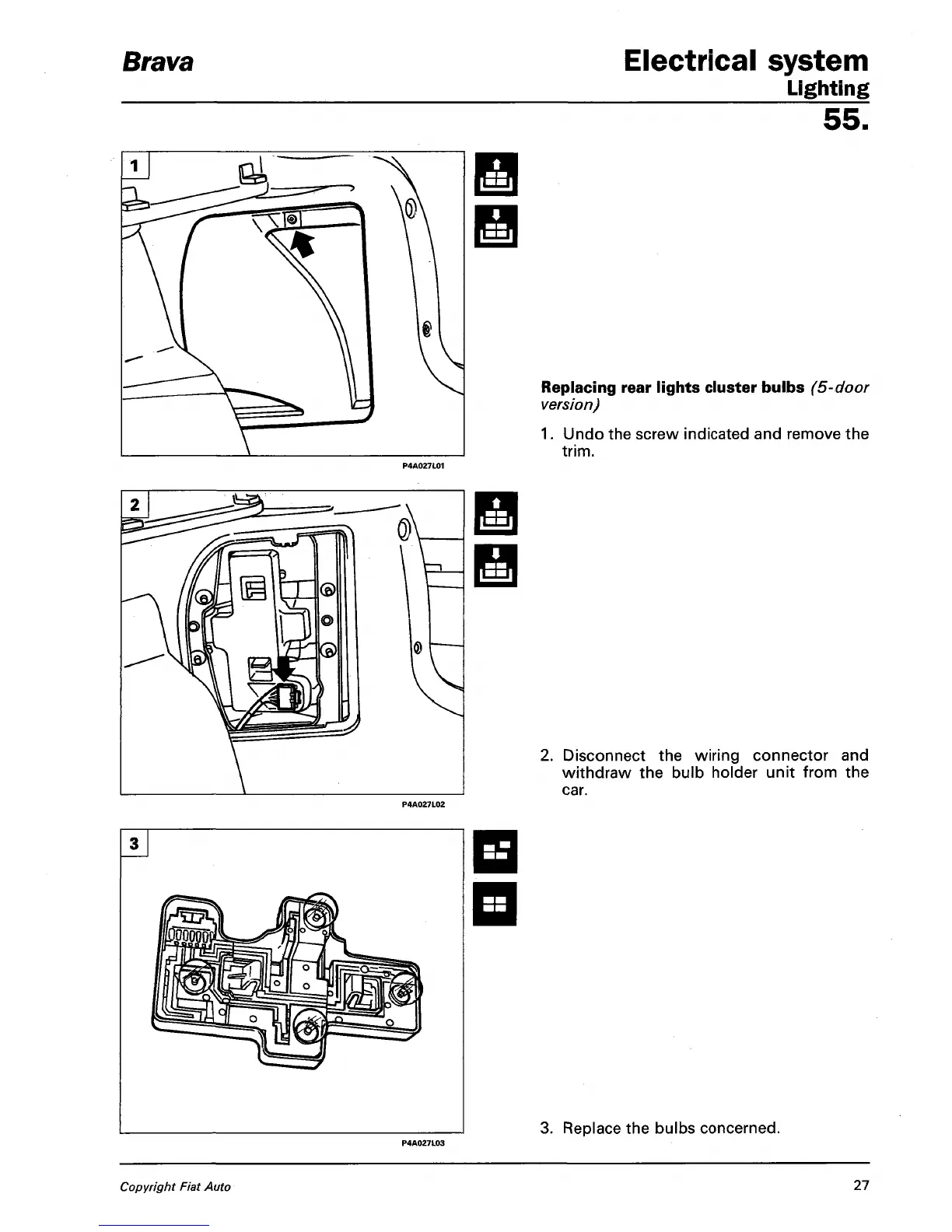

Replacing rear lights cluster bulbs (5-door

version)

Undo the screw indicated and remove the

trim.

Disconnect the wiring connector and

withdraw the bulb holder unit from the

car.

• /// jf 1

XS9ESB

-° n

3. Replace the bulbs concerned.
