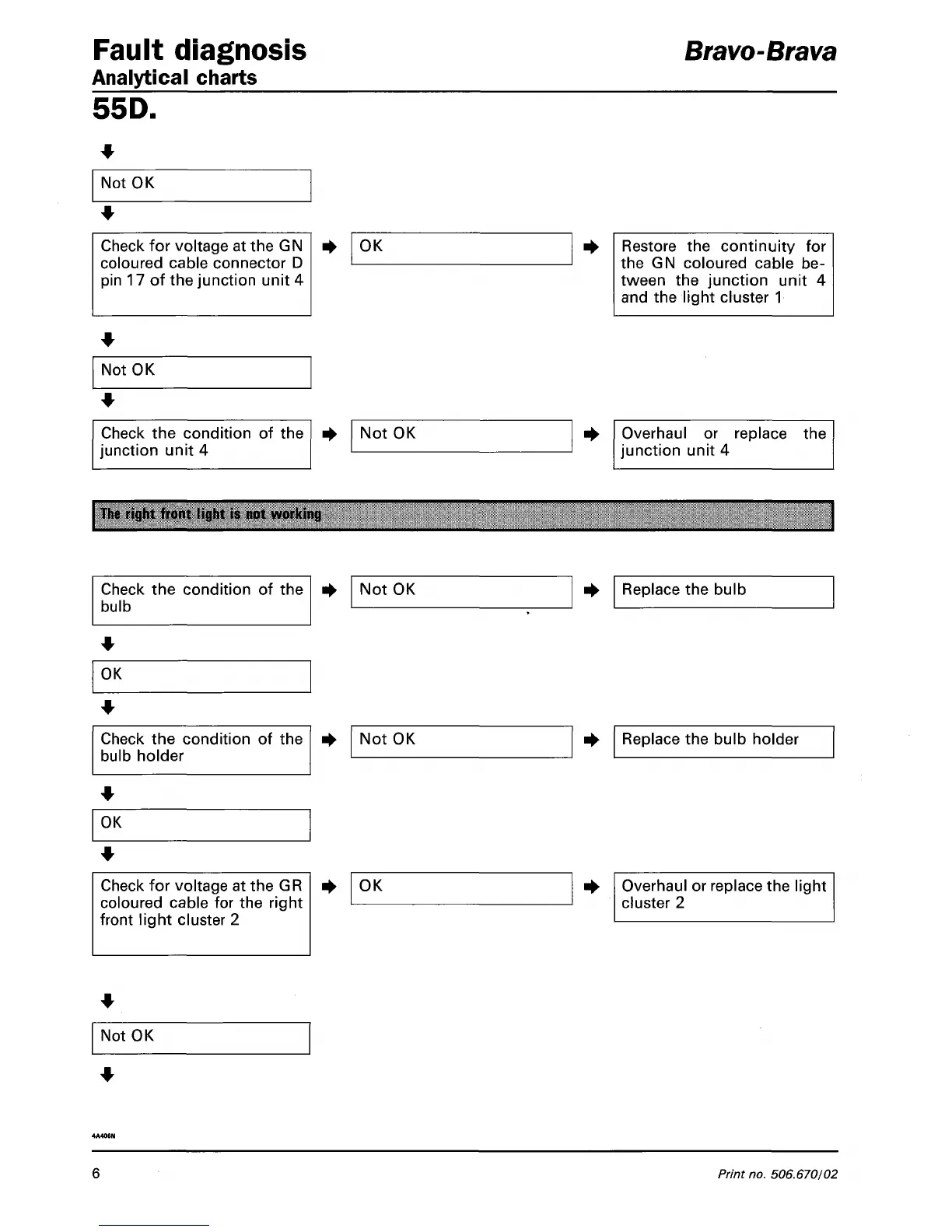

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Not OK
Check for voltage at the GN
coloured cable connector D
pin 17 of the junction unit 4
OK
Restore the continuity for
the GN coloured cable be-
tween the junction unit 4
and the light cluster 1
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
The right front light is not working
Check the condition of the
bulb
Not OK
Replace the bulb
OK
Check the condition of the
bulb holder
Not OK
Replace the bulb holder
OK
Check for voltage at the GR
coloured cable for the right
front light cluster 2
OK
Overhaul or replace the light
cluster 2
Not OK
