Bravo-Brava

Electrical system

Electric windows

55.

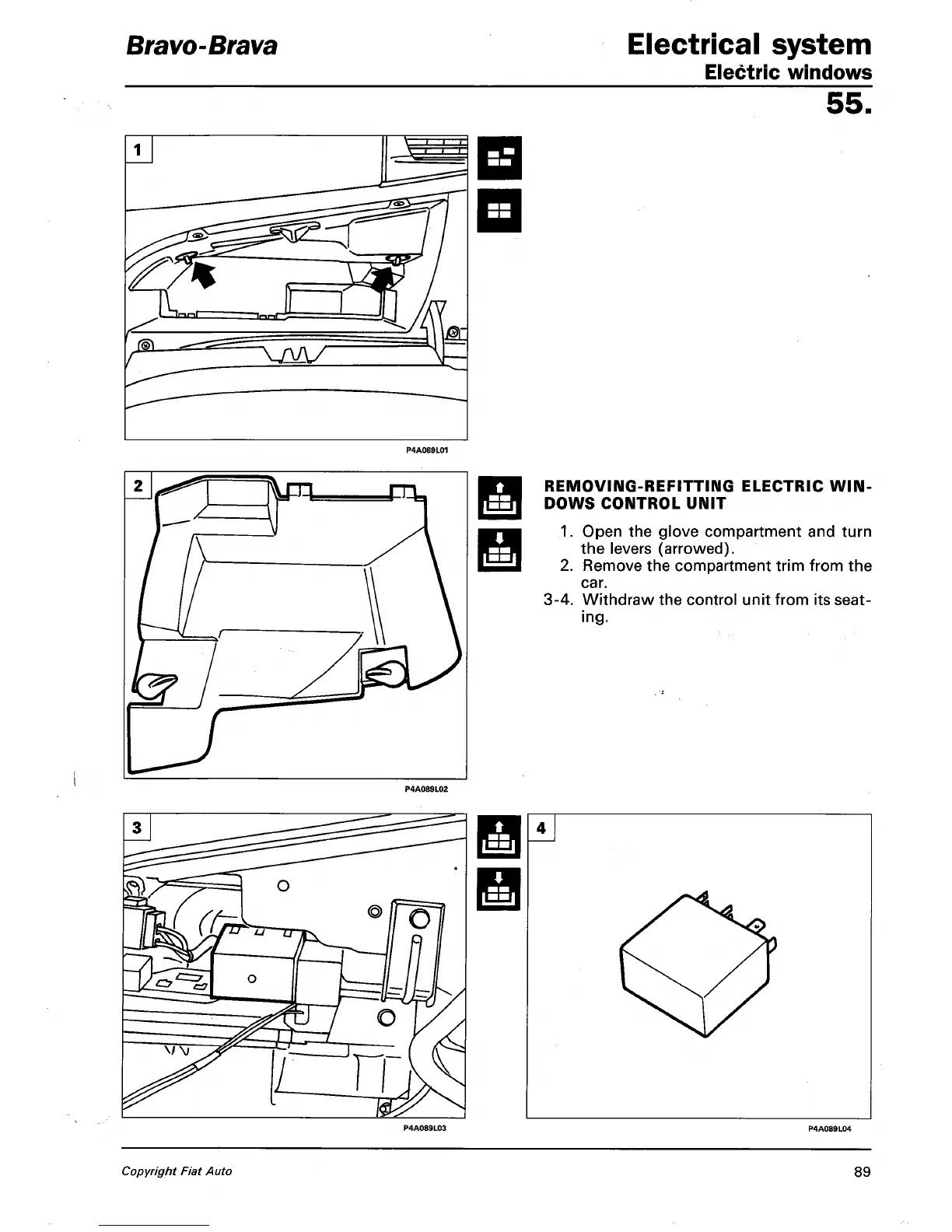

REMOVING-REFITTING ELECTRIC

WIN-

DOWS CONTROL UNIT

Open the glove compartment and turn

the levers (arrowed).

Remove the compartment trim from the

car.

3-4. Withdraw the control unit from its seat-

ing.

3 ^^_^_-^:

ISTT^T^

^^TTT

ZK§3\°

= —-^

V\y >^

s'—

•

fo]

j\~\

J-

/l\ /

7 ^K/

_ni^
