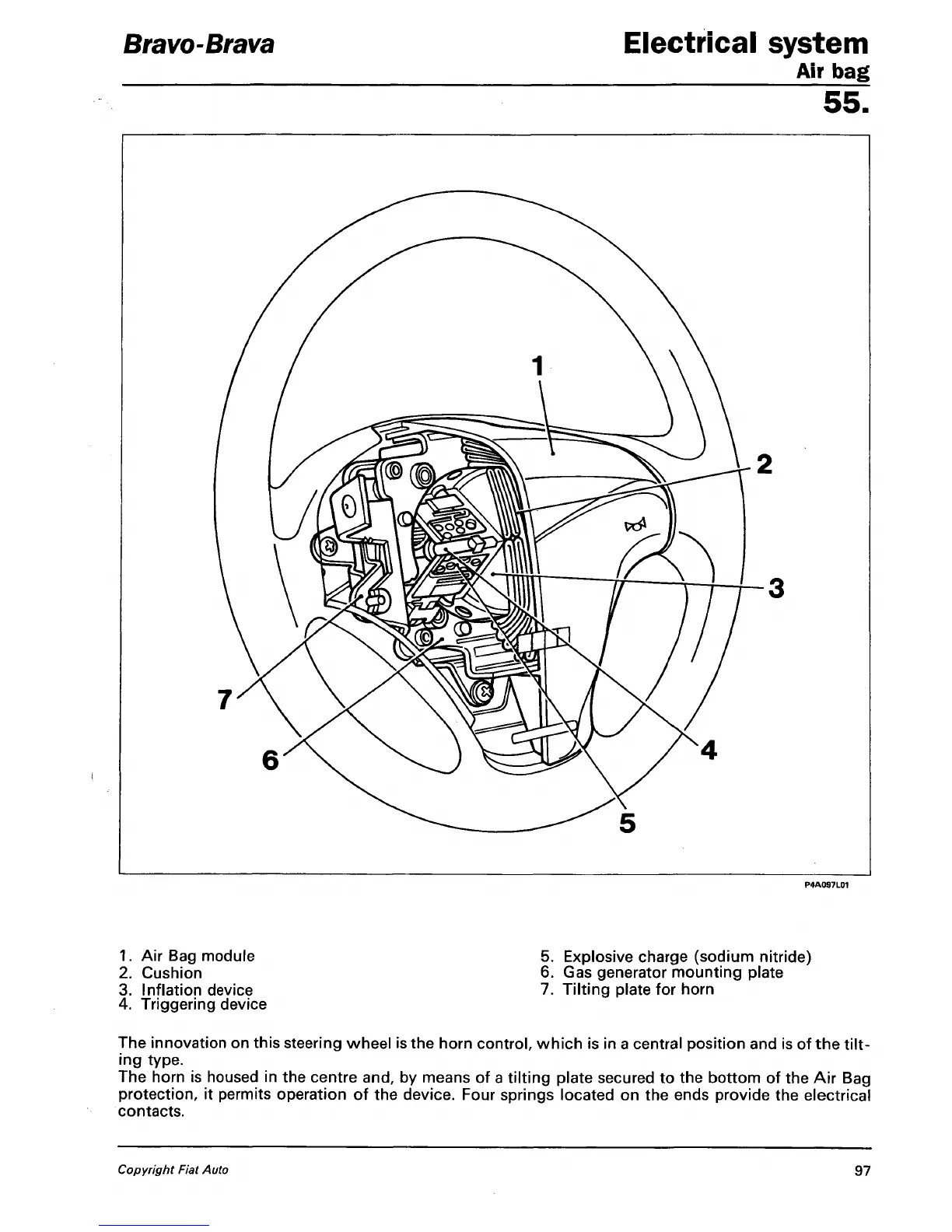

Bravo-Brava
Electrical system
Air bag
55.
1.
Air Bag module
2.
Cushion
3. Inflation device
4.
Triggering device
5. Explosive charge (sodium nitride)
6. Gas generator mounting plate
7. Tilting plate for horn
The innovation on this steering wheel is the horn control, which is in a central position and is of the tilt-
ing type.
The horn is housed in the centre and, by means of a tilting plate secured to the bottom of the Air Bag
protection,
it permits operation of the device. Four springs located on the ends provide the electrical
contacts.
Copyright Fiat Auto
97
