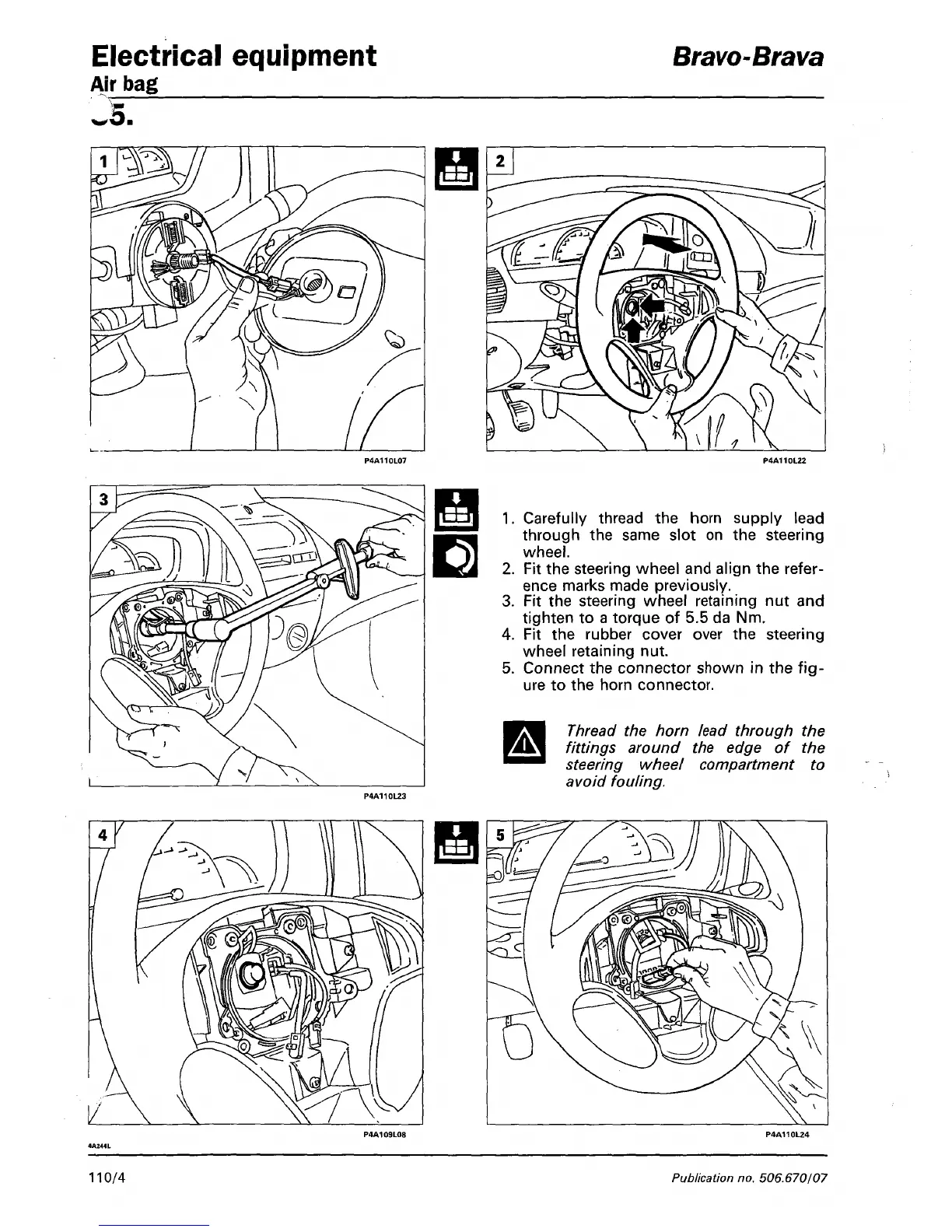

Electrical equipment
Air bag
Bravo-Brava
5
1.
Carefully thread the horn supply lead
through the same slot on the steering
wheel.
2.
Fit the steering wheel and align the refer-
ence marks made previously.
3. Fit the steering wheel retaining nut and
tighten to a torque of 5.5 da Nm.
4.
Fit the rubber cover over the steering
wheel retaining nut.
5. Connect the connector shown in the
fig-
ure to the horn connector.
Thread the horn lead through the
fittings around the edge of the
steering wheel compartment to
avoid fouling.
110/4
Publication no. 506.670/07
