Electrical equipment

Recharging

124

Btavo-Brava

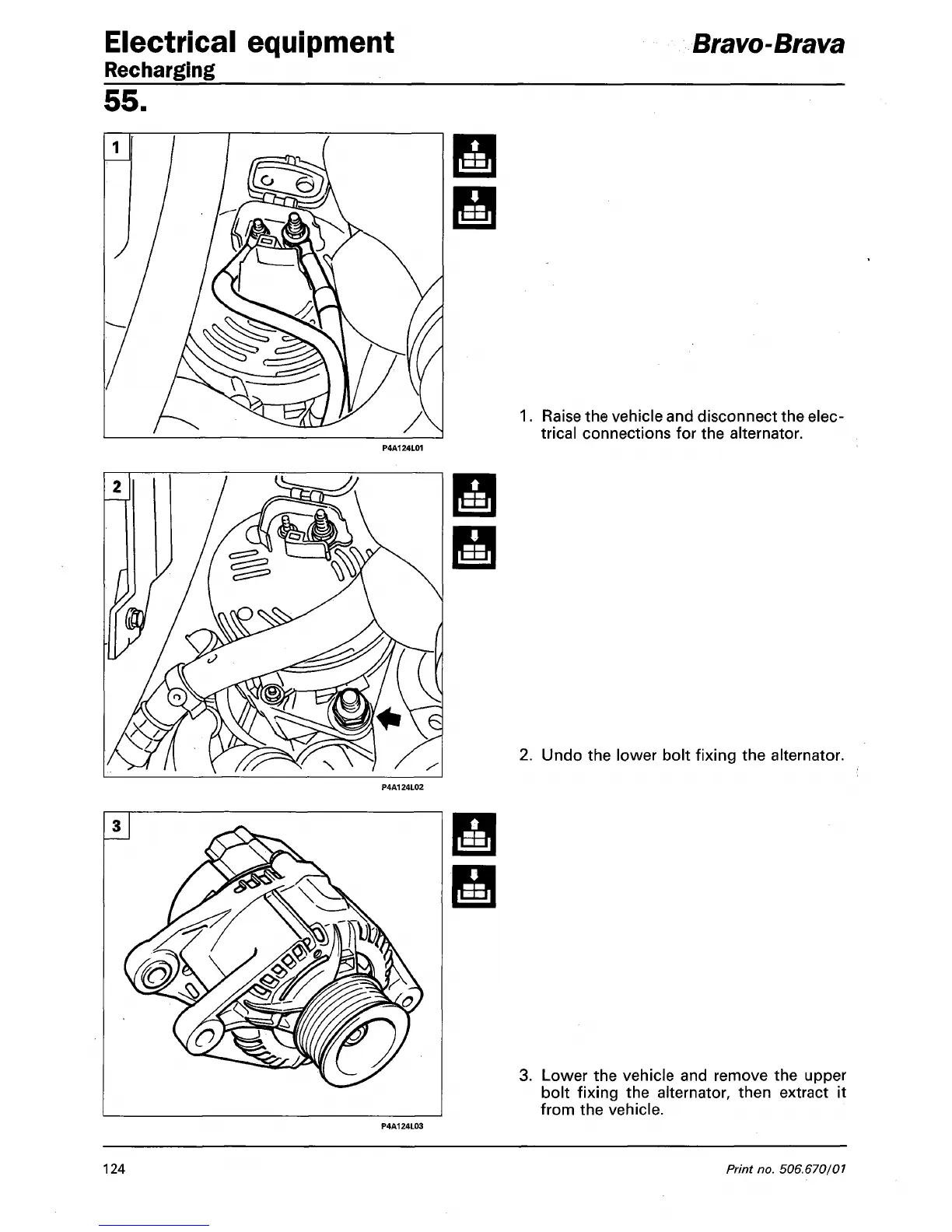

Raise the vehicle and disconnect the elec-

trical connections for the alternator.

Undo the lower bolt fixing the alternator.

3. Lower the vehicle and remove the upper

bolt fixing the alternator, then extract it

from the vehicle.

Print no. 506.670/01
