Bodywork
Replacing body panels
Bravo
70.

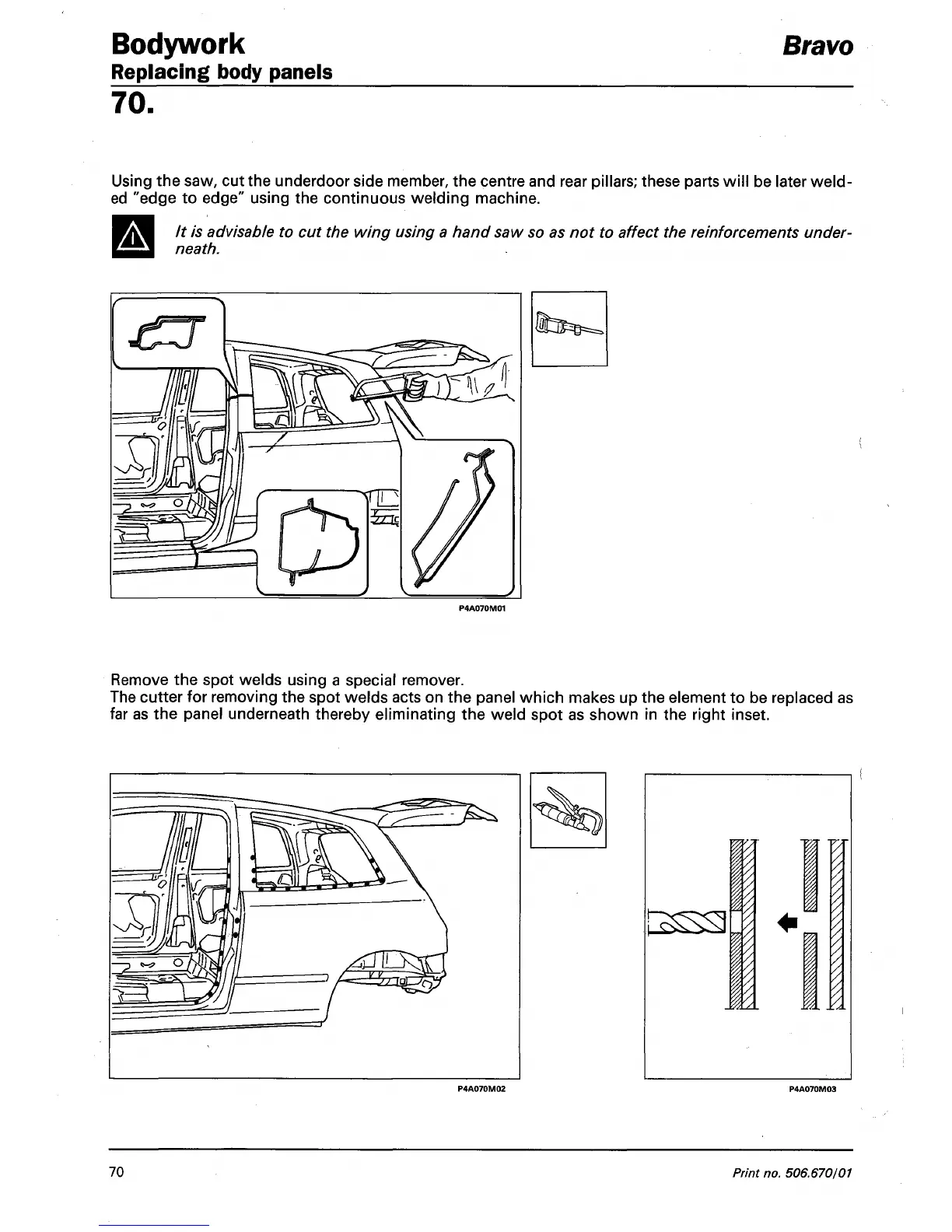

Using the saw, cut the underdoor side member, the centre and rear pillars; these parts will be later
weld-
ed "edge to edge" using the continuous welding machine.
0
/t is advisable to cut the wing using a hand saw so as not to affect the reinforcements
under-
neath.
P4A070M01
Remove the spot welds using a special remover.
The cutter for removing the spot welds acts on the panel which makes up the element to be replaced as
far as the panel underneath thereby eliminating the weld spot as shown in the right inset.
P4A070M02
70 Print no. 506.670/01
