Bodywork

Replacing body panels

Bravo

70.

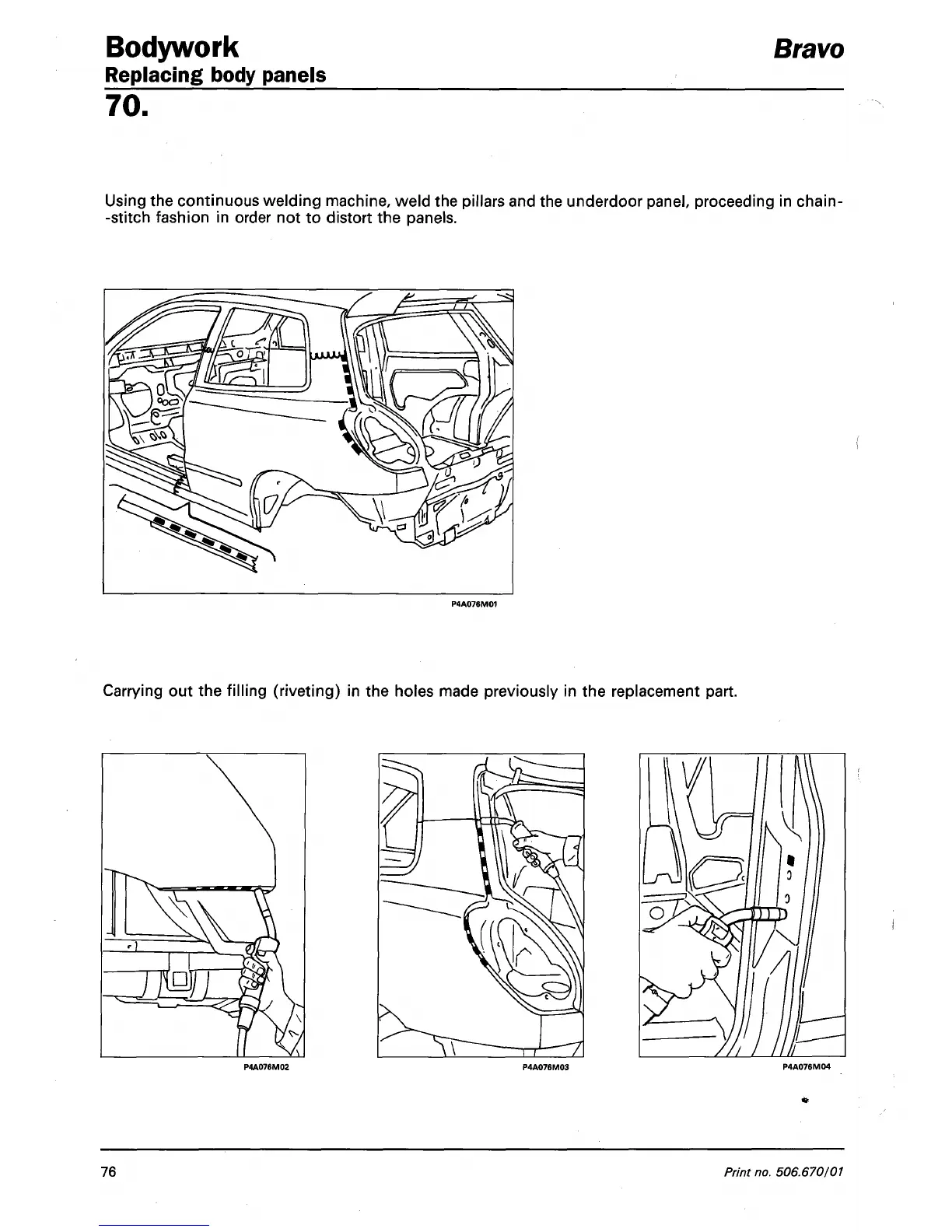

Using the continuous welding machine, weld the pillars and the underdoor panel, proceeding in chain-

-stitch fashion in order not to distort the panels.

Carrying out the filling (riveting) in the holes made previously in the replacement part.

no.
