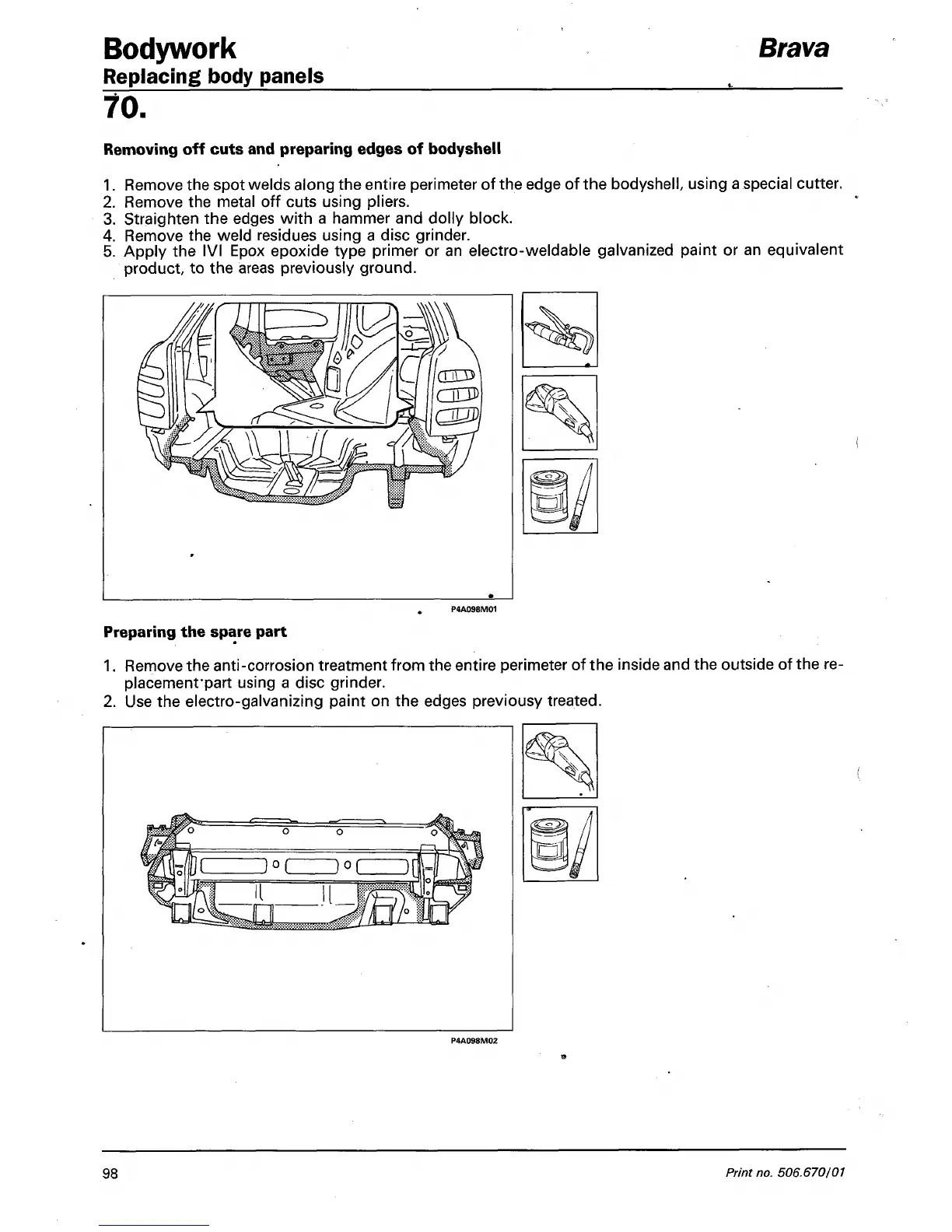

Bodywork
Replacing body panels
Brava
70.
Removing off cuts and preparing edges of bodyshell
1.
Remove the spot welds along the entire perimeter of the edge of the bodyshell, using
a
special cutter.
2.
Remove the metal off cuts using pliers.
3. Straighten the edges with a hammer and dolly block.
4.
Remove the weld residues using a disc grinder.
5. Apply the IVI Epox epoxide type primer or an electro-weldable galvanized paint or an equivalent
product, to the areas previously ground.
Preparing the spare part
1.
Remove the anti-corrosion treatment from the entire perimeter of the inside and the outside of the re-
placemenfpart using a disc grinder.
2.
Use the electro-galvanizing paint on the edges previousy treated.
Jppm—f
iiyt
I
1/°
^l*>.
i. w
o
J°(
11
j—u-Wl
zD°f ) r
-^E$
T*m
P4A098M02
98
Print
no.
506.670/01
