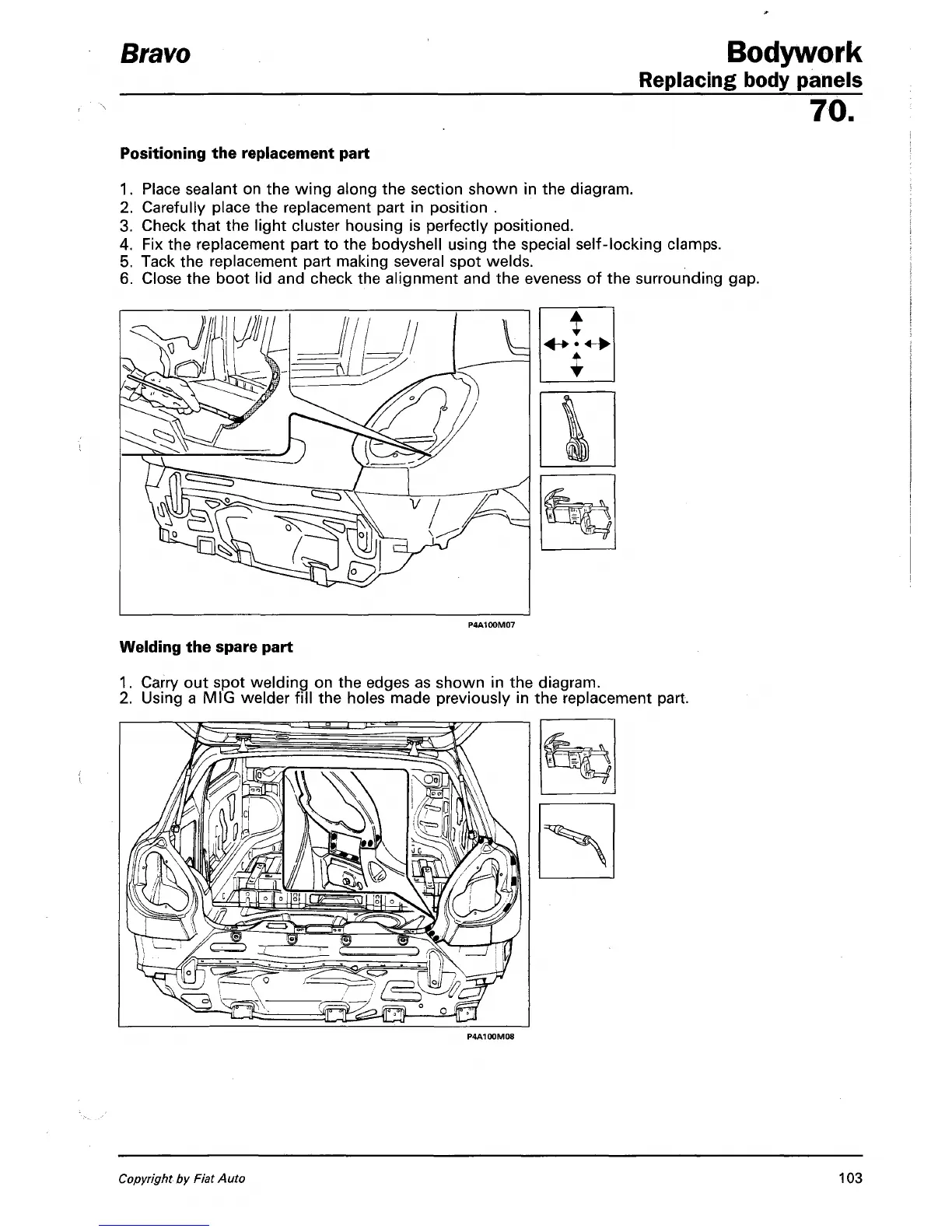

Bravo Bodywork
Replacing body panels
70.
Positioning the replacement part
1.
Place sealant on the wing along the section shown in the diagram.
2.
Carefully place the replacement part in position .
3. Check that the light cluster housing is perfectly positioned.
4.
Fix the replacement part to the bodyshell using the special self-locking clamps.
5. Tack the replacement part making several spot welds.
6. Close the boot lid and check the alignment and the eveness of the surrounding gap.
Welding the spare part
1.
Carry out spot welding on the edges as shown in the diagram.
2.
Using a MIG welder fill the holes made previously in the replacement part.
Copyright
by
Fiat
Auto
103
