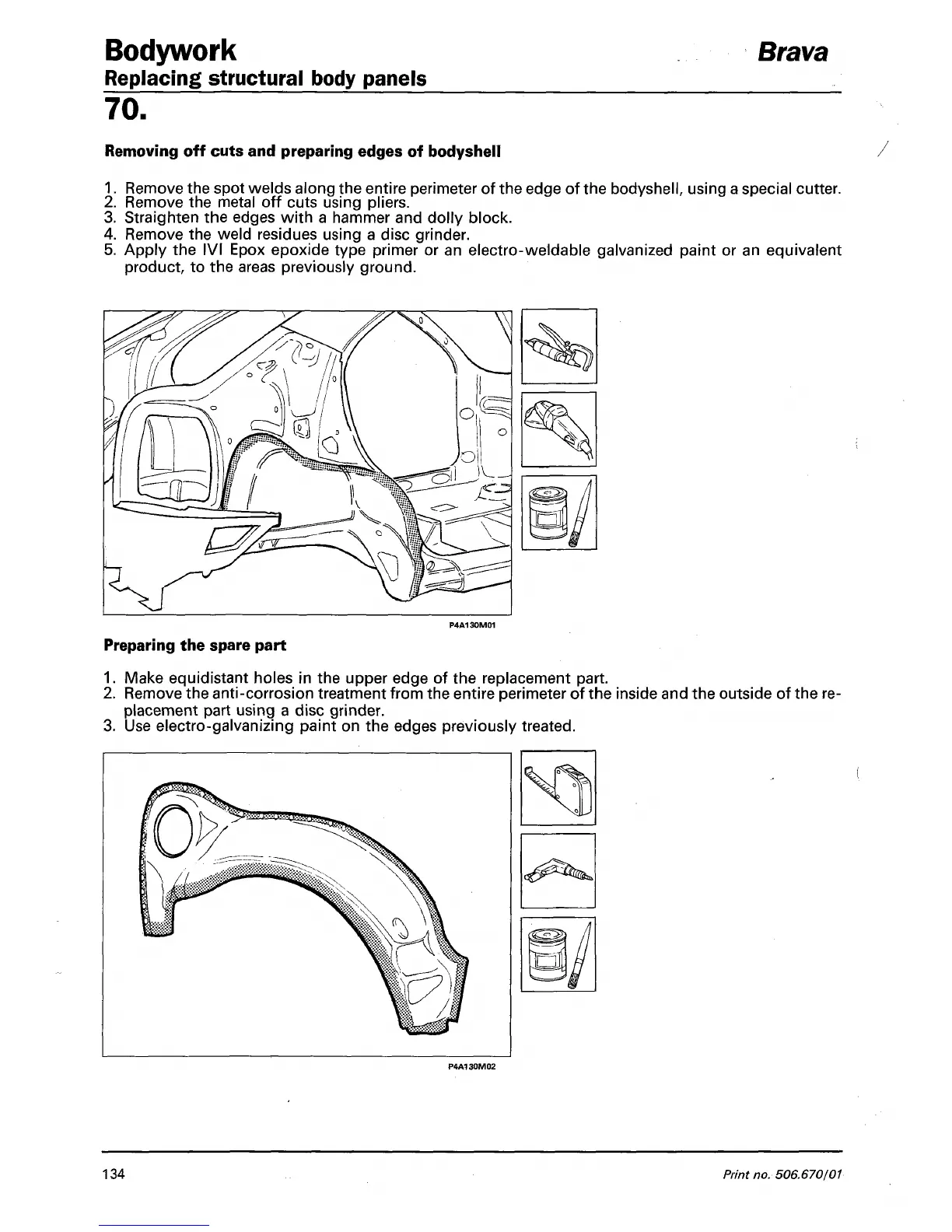

Bodywork
Replacing structural body panels
Btava
70.
Removing off cuts and preparing edges of bodyshell
1.
Remove the spot welds along the entire perimeter of the edge of the bodyshell, using a special cutter.
2.
Remove the metal off cuts using pliers.
3. Straighten the edges with a hammer and dolly block.
4.
Remove the weld residues using a disc grinder.
5. Apply the IVI Epox epoxide type primer or an electro-weldable galvanized paint or an equivalent
product, to the areas previously ground.
P4A130M01
Preparing the spare part
1.
Make equidistant holes in the upper edge of the replacement part.
2.
Remove the anti-corrosion treatment from the entire perimeter of the inside and the outside of the re-
placement part using a disc grinder.
3. Use electro-galvanizing paint on the edges previously treated.
Tl
134
Print no. 506,670/01
