Bravo-Brava Bodywork

Bodyshell

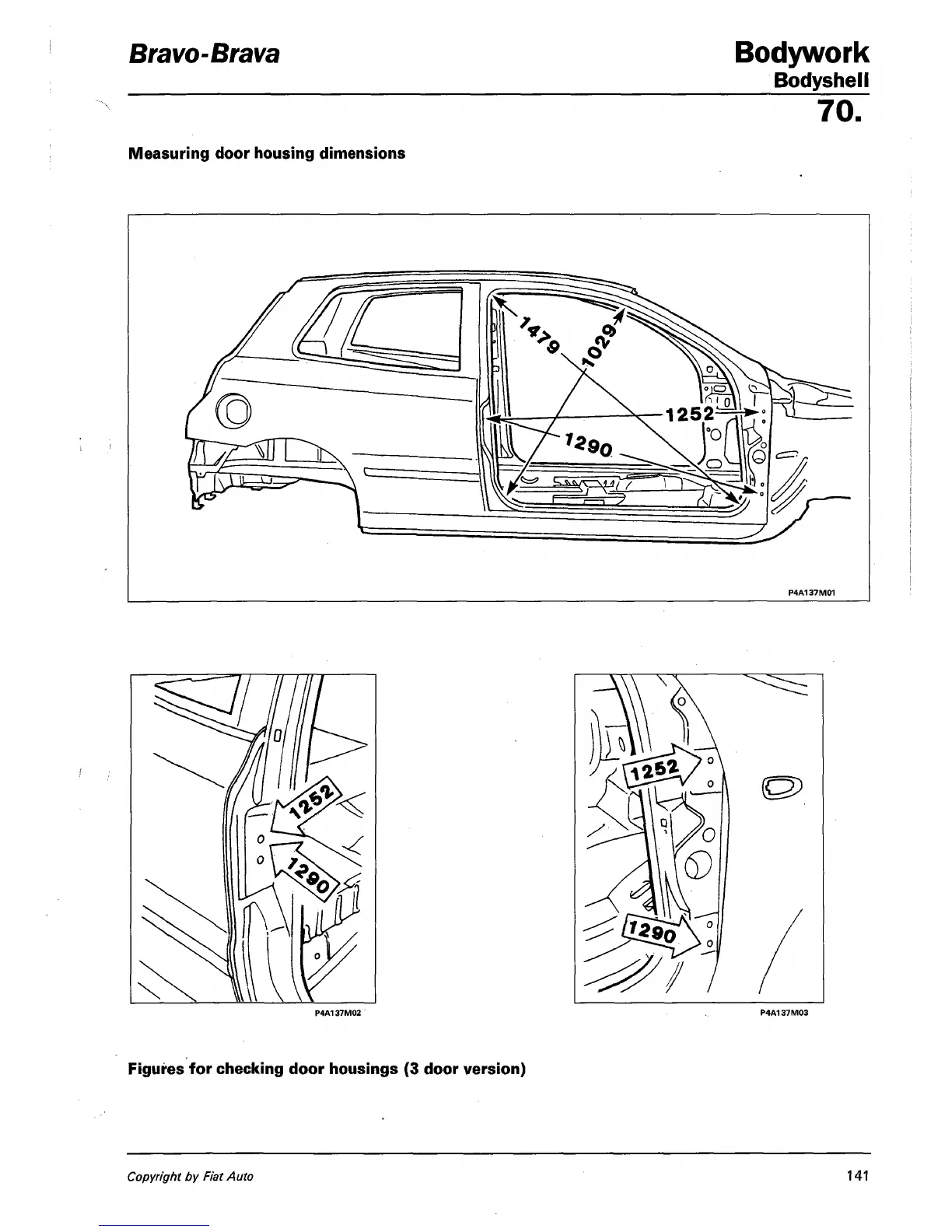

Measuring door housing dimensions

70.

Figures for checking door housings (3 door version)
