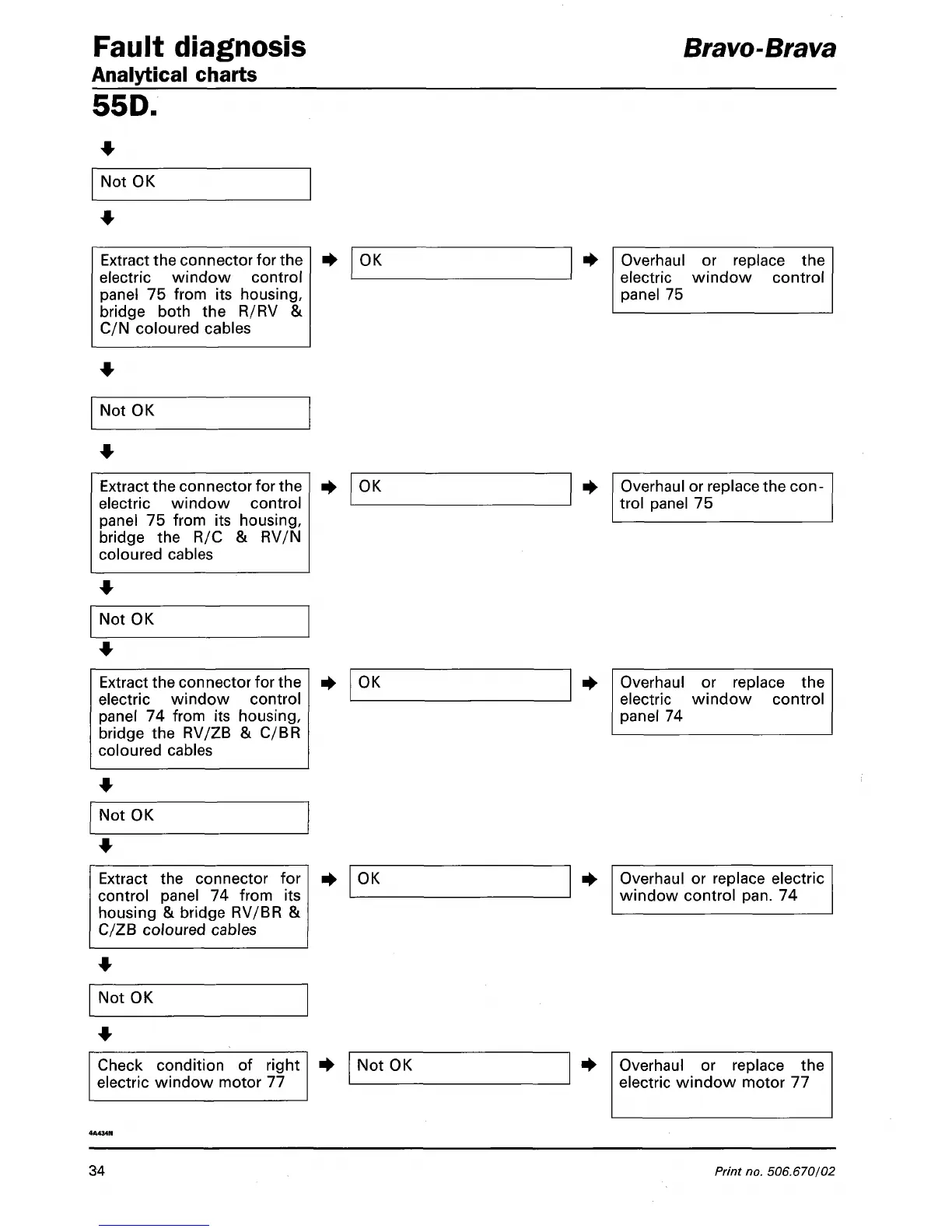

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Not OK
Extract the connector for the
electric window control
panel 75 from its housing,
bridge both the R/RV &
C/N coloured cables
OK
Overhaul or replace the
electric window control
panel 75
Not OK
Extract the connector for the
electric window control
panel 75 from its housing,
bridge the R/C & RV/N
coloured cables
OK
Overhaul or replace the con-
trol panel 75
Not OK
Extract the connector for the
electric window control
panel 74 from its housing,
bridge the RV/ZB & C/BR
coloured cables
OK
Overhaul or replace the
electric window control
panel 74
Not OK
Extract the connector for
control panel 74 from its
housing & bridge RV/BR &
C/ZB coloured cables
OK Overhaul or replace electric
window control pan. 74
Not OK
Check condition of right
electric window motor 77
Not OK Overhaul or replace the
electric window motor 77
34
