Fault diagnosis

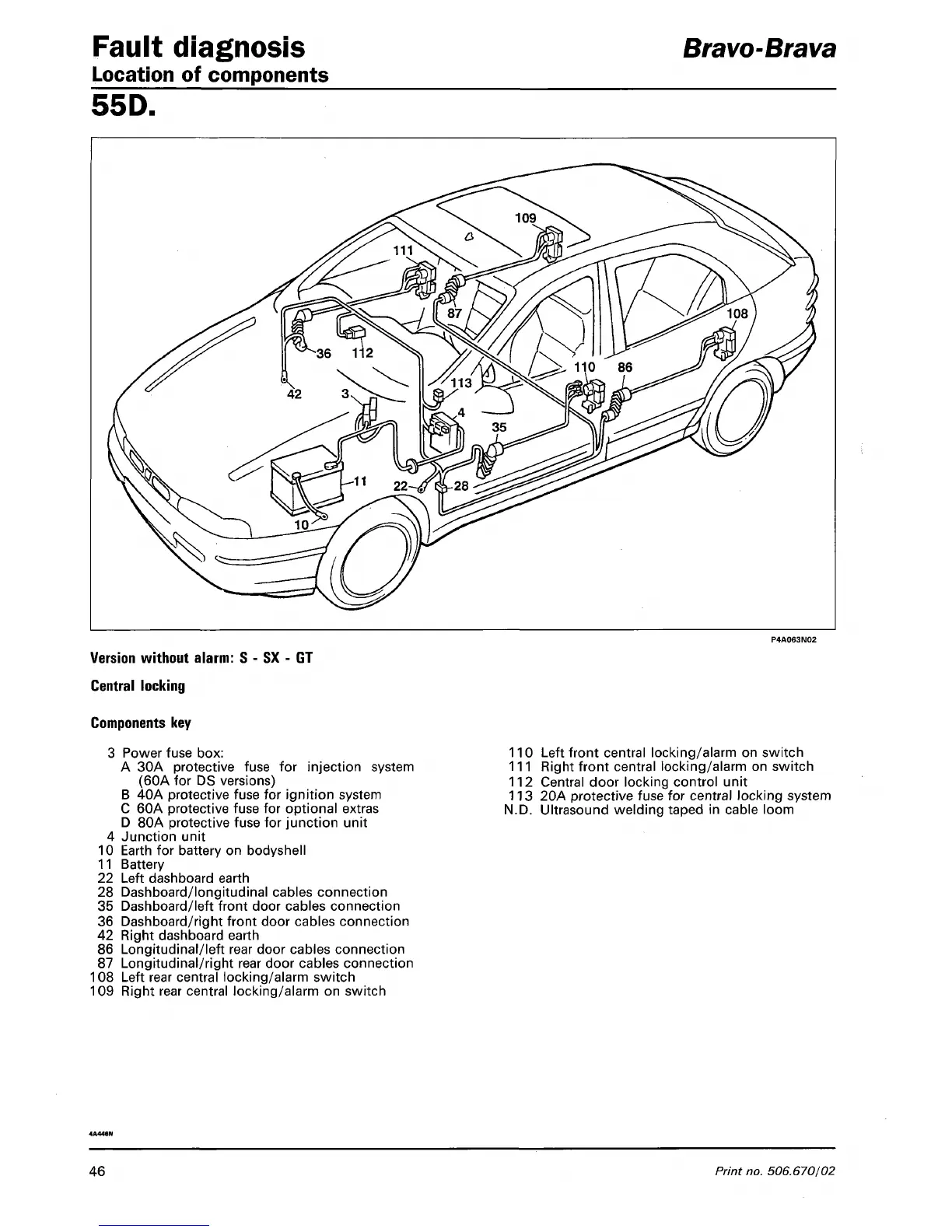

Location of components
55 D.
Version without alarm: S - SX - GT
Central locking
Components key
3 Power fuse box:
A 30A protective fuse for injection system
(60A for DS versions)
B 40A protective fuse for ignition system
C 60A protective fuse for optional extras
D 80A protective fuse for junction unit
4 Junction unit
10 Earth for battery on bodyshell
11 Battery
22 Left dashboard earth
28 Dashboard/longitudinal cables connection
35 Dashboard/left front door cables connection
36 Dashboard/right front door cables connection
42 Right dashboard earth
86 Longitudinal/left rear door cables connection
87 Longitudinal/right rear door cables connection
108 Left rear central locking/alarm switch
109 Right rear central locking/alarm on switch
4A446N
46 Print no. 506.670/02
Bravo-Brava
110 Left front central locking/alarm on switch
111 Right front central locking/alarm on switch
112 Central door locking control unit
113 20A protective fuse for central locking system
N.D. Ultrasound welding taped in cable loom
