Electrical equipment
Connector blocks
Bravo-Brava
55.
Version: EL - ELX - HGT

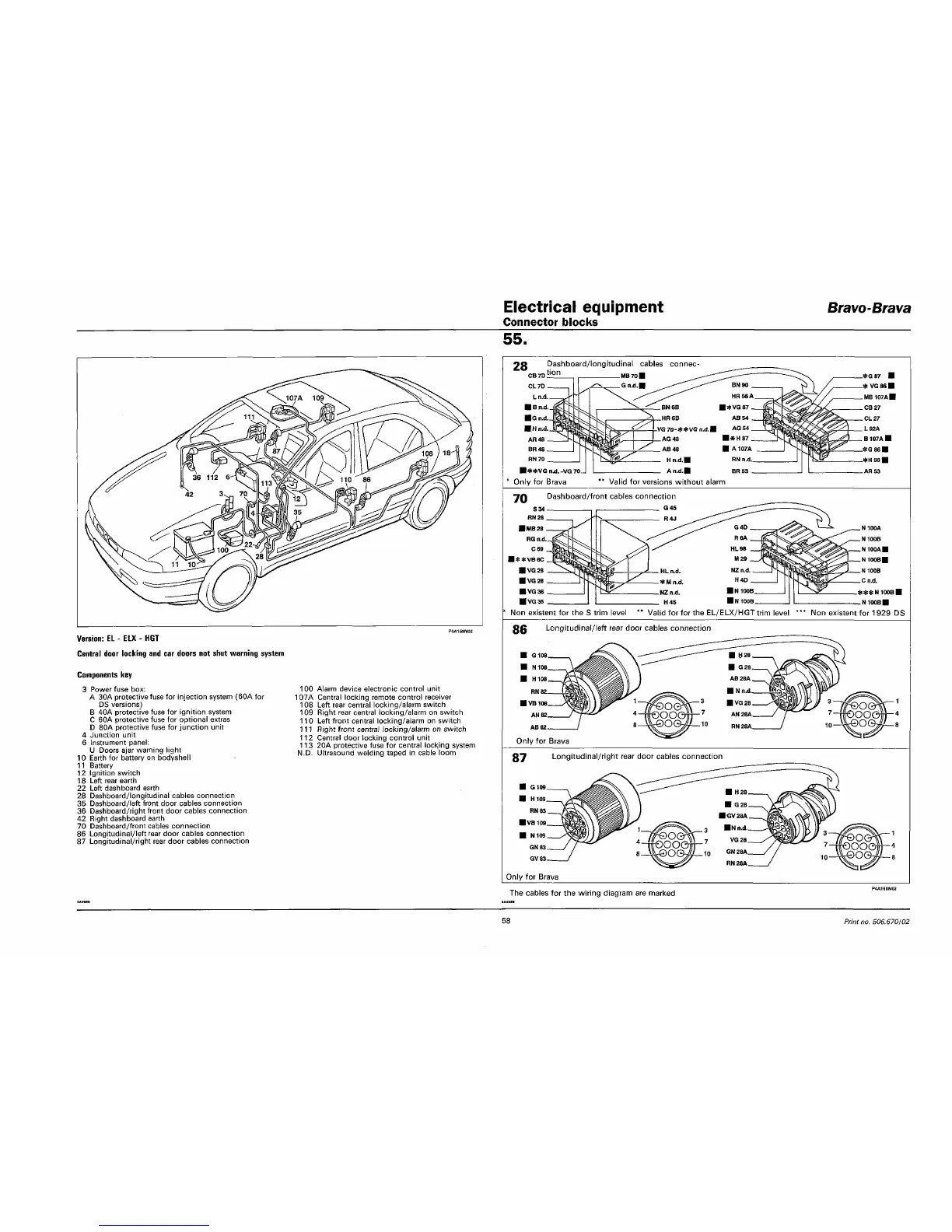

Central door locking and car doors not shut warning system
Components key
3 Power fuse box:
A 30A protective fuse for injection system (60A for
DS versions)
B 40A protective fuse for ignition system
C 60A protective fuse for optional extras
D 80A protective fuse for junction unit
4 Junction unit
6 Instrument panel:
U Doors ajar warning light
10 Earth for battery on bodyshell
11 Battery
12 Ignition switch
18 Left rear earth
22 Left dashboard earth
28 Dashboard/longitudinal cables connection
35 Dashboard/left front door cables connection
36 Dashboard/right front door cables connection
42 Right dashboard earth
70 Dashboard/front cables connection
86 Longitudinal/left rear door cables connection
87 Longitudinal/right rear door cables connection
100 Alarm device electronic control unit
107A Central locking remote control receiver
108 Left rear central locking/alarm switch
109 Right rear central locking/alarm on switch
110 Left front central locking/alarm on switch
111 Right front central locking/alarm on switch
112 Central door locking control unit
113 20A protective fuse for central locking system
N.D. Ultrasound welding taped in cable loom
OB Dashboard/longitudinal cables connec
CB7D
tl0n
. MB70B
■**VGn.d.-VG70_
Only for Brava
** Valid for versions without alarm
Dashboard/front cables connection
Non existent for the S trim level
Valid for for the EL/ELX/HGT trim level Non existent I
86
Longitudinal/left rear door cables connection
Only for Brava
Longitudinal/right rear door cables connection
8—^©OGy^-10
3?
Slff:
Only for Brava
The cables for the wiring diagram are marked
58
Print no. 506.670/02
