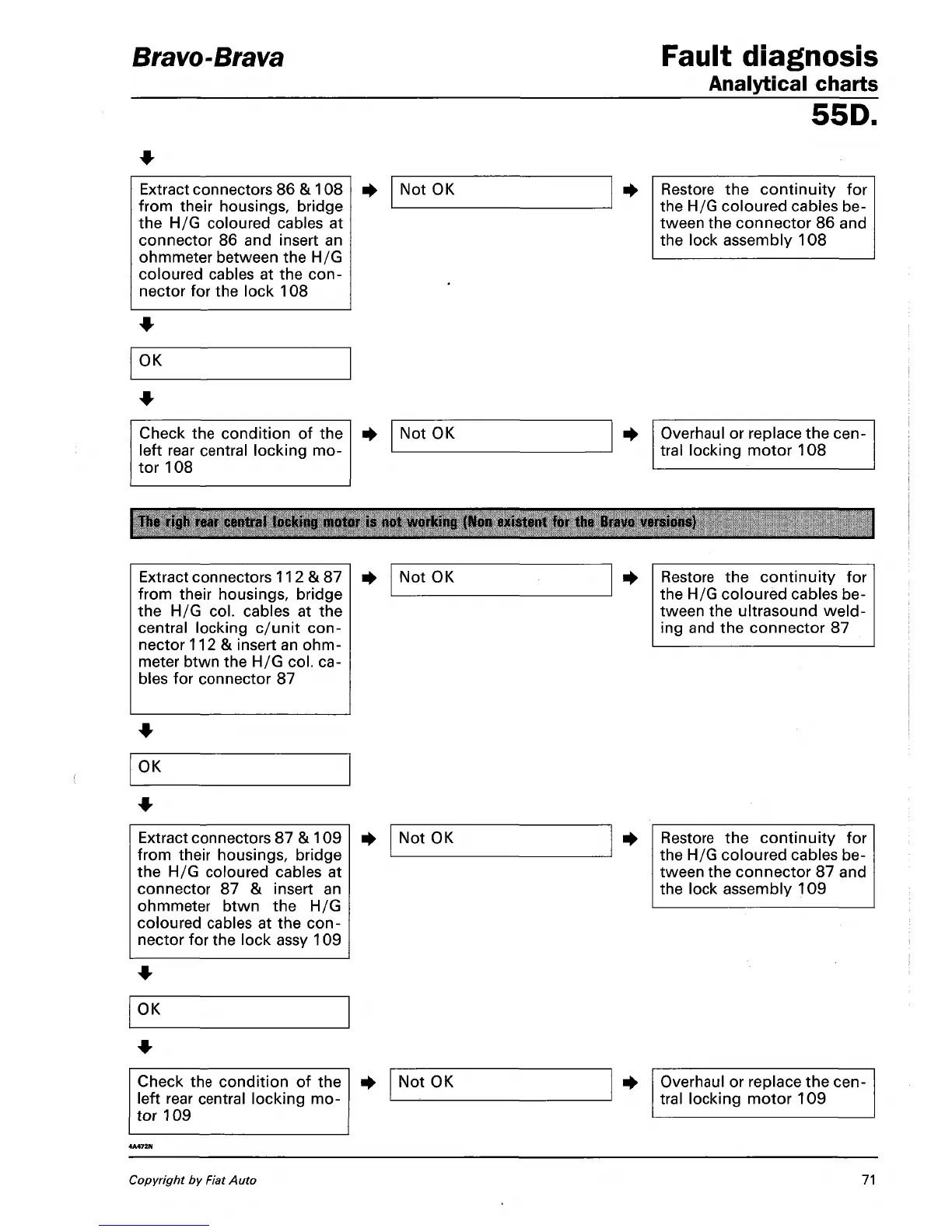

Bravo-Brava
Fault diagnosis
Analytical charts
55D.
Extract connectors 86 & 108
from their housings, bridge
the H/G coloured cables at
connector 86 and insert an
ohmmeter between the H/G
coloured cables at the con-
nector for the lock 108
Not OK Restore the continuity for
the H/G coloured cables be-
tween the connector 86 and
the lock assembly 108
OK
Check the condition of the
left rear central locking mo-
tor 108
Not OK Overhaul or replace the cen-
tral locking motor 108
The righ rear central locking motor is not working (Non existent for the Bravo versions)
Extract connectors 112 & 87
from their housings, bridge
the H/G col. cables at the
central locking c/unit con-
nector 112 & insert an ohm-
meter btwn the H/G col. ca-
bles for connector 87
Not OK
Restore the continuity for
the H/G coloured cables be-
tween the ultrasound weld-
ing and the connector 87
OK
Extract connectors 87 & 109
from their housings, bridge
the H/G coloured cables at
connector 87 & insert an
ohmmeter btwn the H/G
coloured cables at the con-
nector for the lock assy 109
Not OK
Restore the continuity for
the H/G coloured cables be-
tween the connector 87 and
the lock assembly 109
OK
Check the condition of the
left rear central locking mo-
tor 109
Not OK Overhaul or replace the cen-
tral locking motor 109
Copyright by Fiat Auto
71
