68
Item
Default
Setting
Description
Start/
Stop
-
-
Pressing F1 Unity button starts the timecode.
Re-pressing the button stops the timecode.
Adjust
0
-16 to +16
Sets the offset from the source timecode.
To delay the timecode, use a negative number.
-
-
-
Pressing F3 Unity resets the timecode.
-
-
-
Pressing F4 Unity sets the timecode to the preset
set value.
Source
ATC(LTC)
ATC(LTC)
ATC(VITC)
VITC(DVITC)
LTC IN
Generator
Selects the timecode source.
ATC(LTC): ATC(LTC) timecode in the SDI input
A(VITC): ATC(VITC) timecode in the SDI input
VITC(DVITC): VITC(DVITC) timecode in the
SD-SDI input
LTC IN: LTC input (FA-96DIN4- -CBL required)
Generator: Generator’s timecode
Loss
Mode
Stay
Stay
Continue
Output Disable
Selects the way to recover when a timecode
source loss is detected.
Stay: Stays outputting the last timecode.
Continue: Continues running with the timing
before loss and keeps the continuity.
Output Disable: Stops timecode output when
the source loss is detected.
Drop
Frame
Non-Drop
Frame
Non-Drop Frame
Drop Frame
Selects drop frame or non-drop frame timecode.
Drop Frame is available only for 29.97/30Hz
signals.
Preset
HH:MM:
SS:FF
00:00:00:00
00:00:00:00 to
23:59:59:29
Sets the timecode preset value.
Pressing F4 Unity sets this value to the timecode.

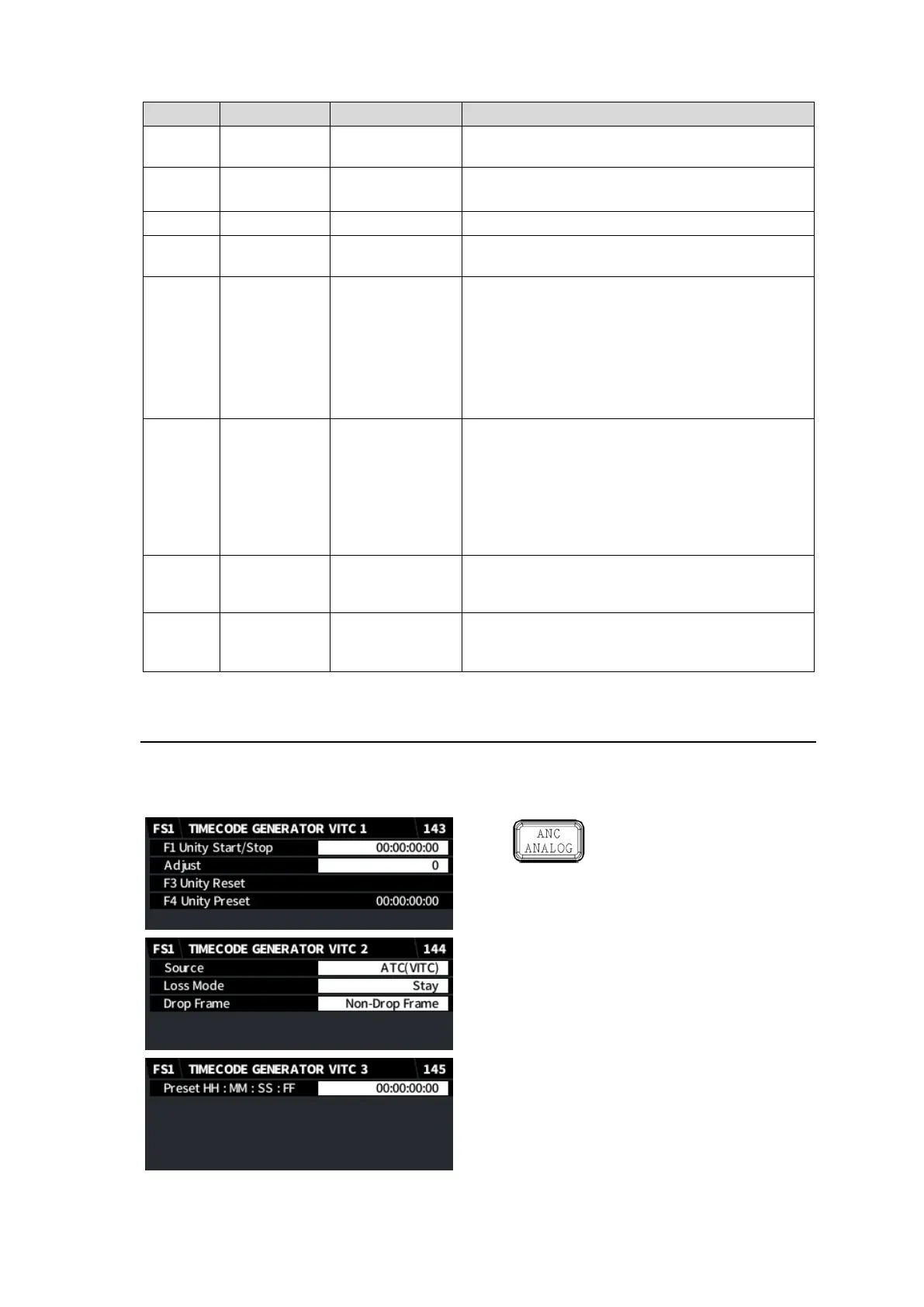

5-34. TIMECODE GENERATOR VITC 1, 2, 3
This menu allows you to generate VITC/DVITC timecodes. To embed timecode onto FS output, set
V ANC to Rewrite (Sec. 5-29. ANCILLARY MULTIPLEX”) and ATC(VITC)/DVITC to Enable (Sec.
5-32. TIME CODE MULTIPLEX”). See the LTC timecode menus to set the VITC(DVITC) timecode.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
