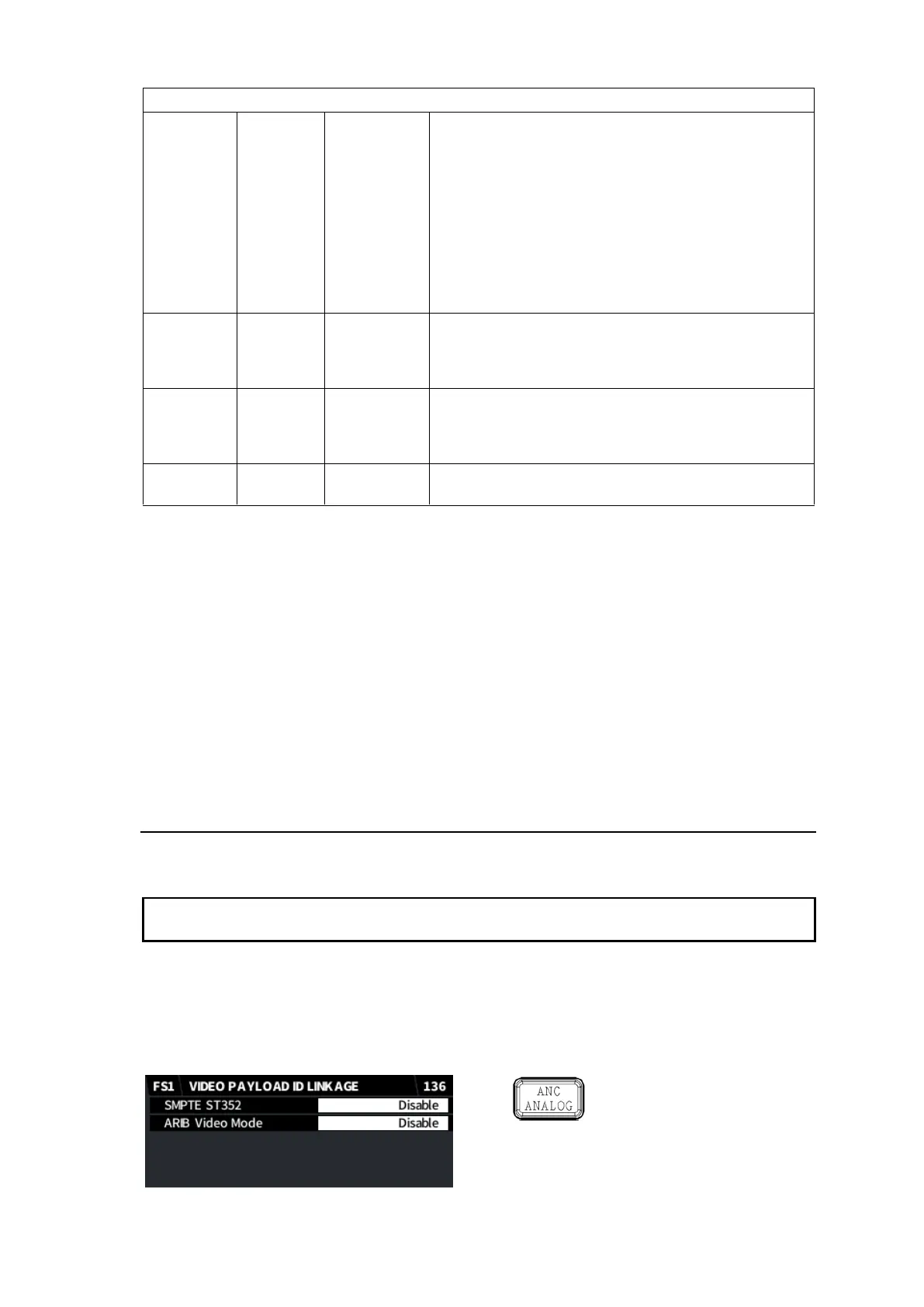

66
If Overwrite is selected, set how and which info. is inserted using the following parameters.
CS/DR
Embedded
Auto
Auto
Manual
Sets the payload identifier insertion mode for Dynamic
Range and Color Space.
Auto: Automatically inserts payload identifiers
according to the Dynamic Range Conv. setting. (See
Sec. 5-4. "INPUT / OUTPUT GAMMA / COLOR.") If
set to Bypass, payload ID codes in the input signal are
inserted. If set to Operate, Payload identifiers suitable
to output gamma and color space settings are
inserted.
Manual: Inserts the codes using the following Color
Space and Dynamic Range settings.
Color
Space
Rec.709
Rec.709
VANC
UHDTV
Unknown
Selects a color space (gamut).
Dynamic
Range
SDR
SDR
HLG
PQ
Unspecified
Selects a dynamic range.
HD
Payload ID
Enable
Enable
Disable
Enables / disables to insert payload identifiers into
HD-SDI output.
The corresponding information is inserted into the location defined in the following standards.
- 1.5G 1080-Lines: SMPTE ST292-1:2018
- 3G Level-A 1080-Lines: SMPTE ST425-1: 2017
- 3G Level-B 1080-Lines: SMPTE ST425-1: 2017
- Quad Link 1.5G 2160-Lines: SMPTE ST292-1:2018
- Dual Link 3G Level-B 2160-Lines SQD: SMPTE ST425-1:2017
- Dual Link 3G Level-B 2160-Lines 2SI: SMPTE ST425-3:2019
- 6G 2160-Lines: SMPTE ST2081-10:2018
- Quad Link 3G Level-A 2160-Lines SQD: SMPTE ST425-1: 2017
- Quad Link 3G Level-B 2160-Lines SQD: SMPTE ST425-1: 2017
- Quad Link 3G Level-A 2160-Lines 2SI: SMPTE ST425-5: 2019
- Quad Link 3G Level-B 2160-Lines 2SI: SMPTE ST425-5: 2019
- Dual Link 6G 2160-Lines: SMPTE ST2081-11: 2019
- 12G 2160-Lines: SMPTE ST2082-10:2018
5-31. VIDEO PAYLOAD ID LINKAGE
An event (a set of menu settings) can be automatically loaded linked with payload identifiers.
NOTE
Note that signal processing from data analysis to even loading may take a certain time, more than
a frame in some cases.
To check each information, see Sec. 5-49. Payload ID (FA-96EX3G44-R)” and Sec. 5-52. “INPUT
ARIB B39 VIDEO MODE”
To use auto (linkage) event load, a corresponding event should be created and uploaded in
advance. (See Sec. 13-3-2-2. Auto Loaded Events (Event 101 and higher)” in Sec. 13-3-2 Event
Data.)
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
